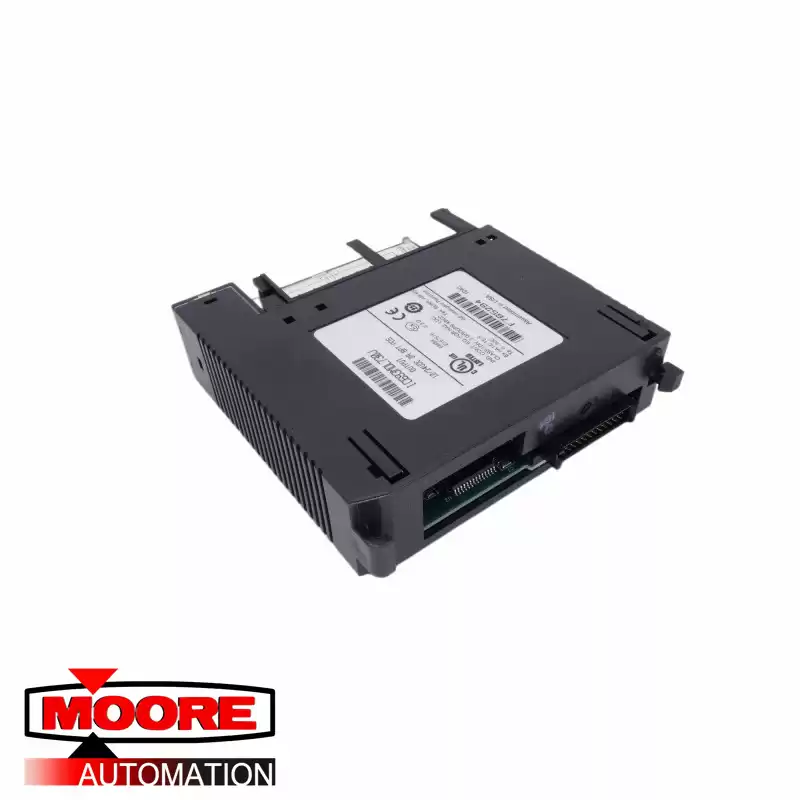

IC693MDL730
General Electric Output Module
-------------------------------------------------------------
|
Origin
|
USA
|
|
Status
|
Brand New In Stock
|
|
Shipment
|
From Xiamen, China to Worldwide
|
|
Year of Production
|
2020-2022 available
|
-------------------------------------------------------------
Description:
The 12/24 volt DC Positive Logic 2 Amp Output module for the Series 90-30 Programmable
Logic Controller provides 8 output points in one group with a common power input terminal.
This output module is designed to have positive logic characteristics in that it sources current to
the loads from the user common or positive power bus. The output device is connected
between the negative power bus and the module output. The output characteristics are
compatible with a wide range of user-supplied load devices, such as: motor starters, solenoids,
and indicators. Power to operate the field devices must come from an external power supply
supplied by the user.
LED indicators which provide the ON/OFF status of each point are located at the top of the
module. This LED block has two horizontal rows with eight green LEDs in each row. This
module uses the top row labeled A1 through 8 (points 1 through 8). A red LED (labeled “F”)
on the right and centered between the two rows of green LEDs functions as a blown fuse
indicator; it turns ON when any fuse is blown. The module has two 5 Amp fuses with each fuse
protecting four outputs; the first fuse protects A1 - A4, the second fuse protects A5 - A8. The
fuses are electrically connected to the same common. An insert goes between the inside and
outside surface of the hinged door. The surface towards the inside of the module (when the
hinged door is closed) has circuit wiring information, and circuit identification information can
be recorded on the outside surface. The outside left edge of the insert is color-coded blue to
indicate a low-voltage module.
