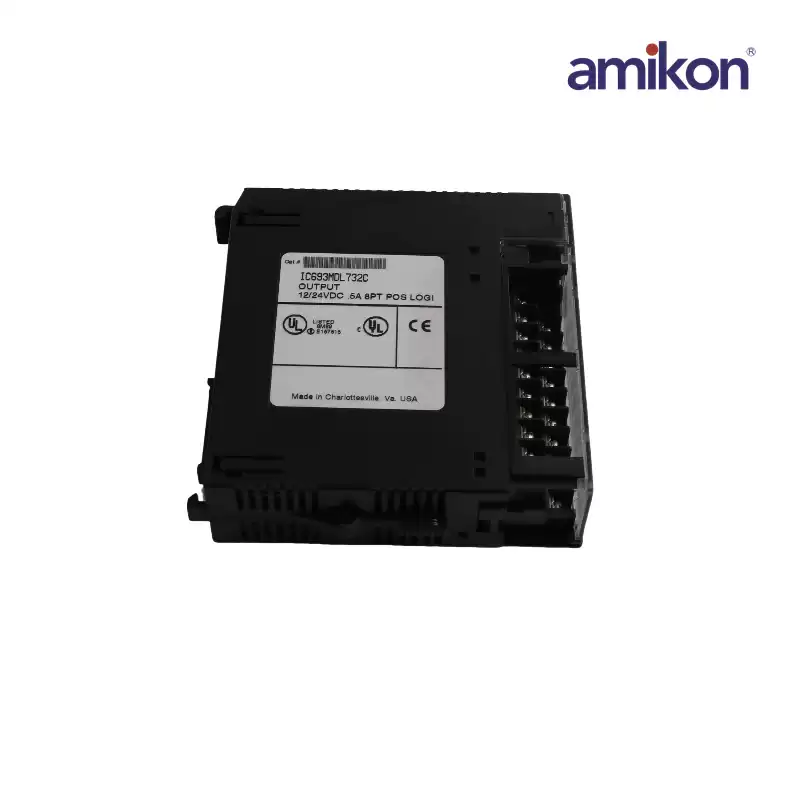

IC693MDL732 Positive Logic output module
|
|
Dimensions: 3.5x13x13.5cm
|
Weight: 0.3KG
|
Output Load:0.5 Amps
|
Rated Voltage:12/24 volts DC
|
|
Output Voltage Range:12 to 24 volts DC
|
DC Power: Yes
|
|
IC693MDL732
|
It’s based on the 90-30 series PLC system. Maximum output per point is 0.5 Amp and a maximum of 2 Amps per common power output. This Output module was tailored to source current to the loads from the user common or positive power bus. Thanks to its design, the module offers unrivalled versatility.
The output characteristics are compatible with a myriad of load devices such as solenoids, motor starters and indicators. These output characteristics include ON and OFF response maximum time of 2ms, off-state leakage of 1mA maximum, output voltage drop of 1 volt maximum and an in-rush current 4.78 Amps for 10ms. Power for operation of the field devices is supplied by the user.
At the top of the module, you’ll locate LED indicators which are used to display the ON / OFF status of each point The LED block comprises two horizontal rows with each row having 8 green LEDs. The top is labelled row is labelled A1 to A8 (first 8 points) and the bottom labelled from A9 right through A16 (Another 8 points).
|
