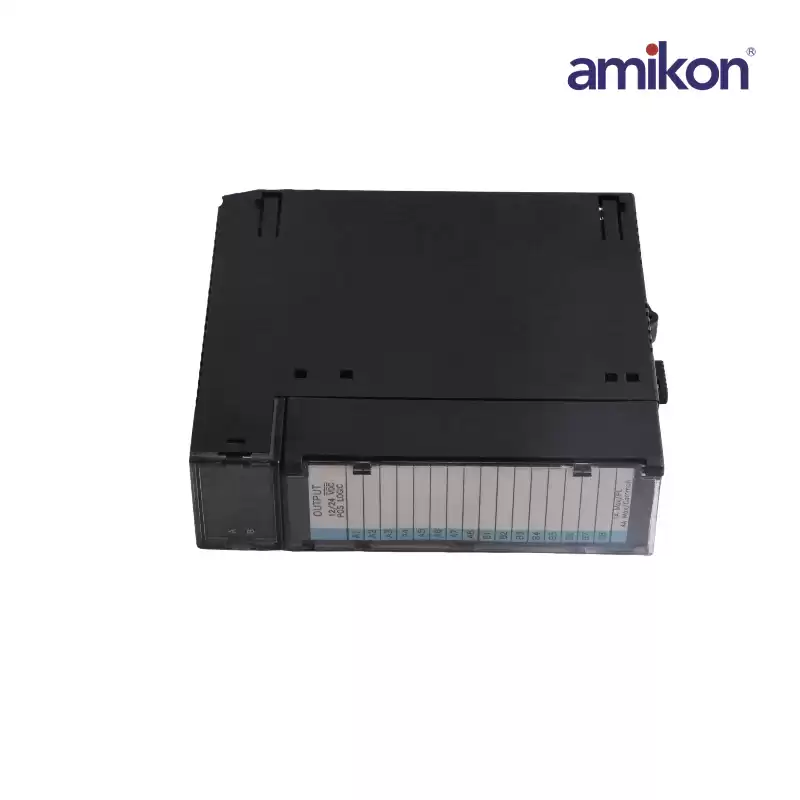

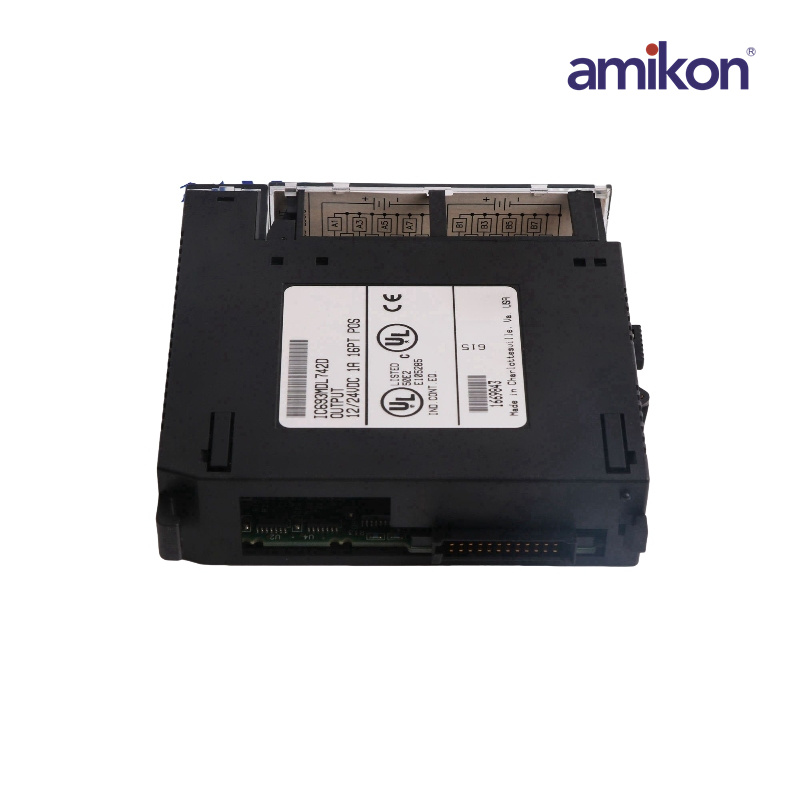

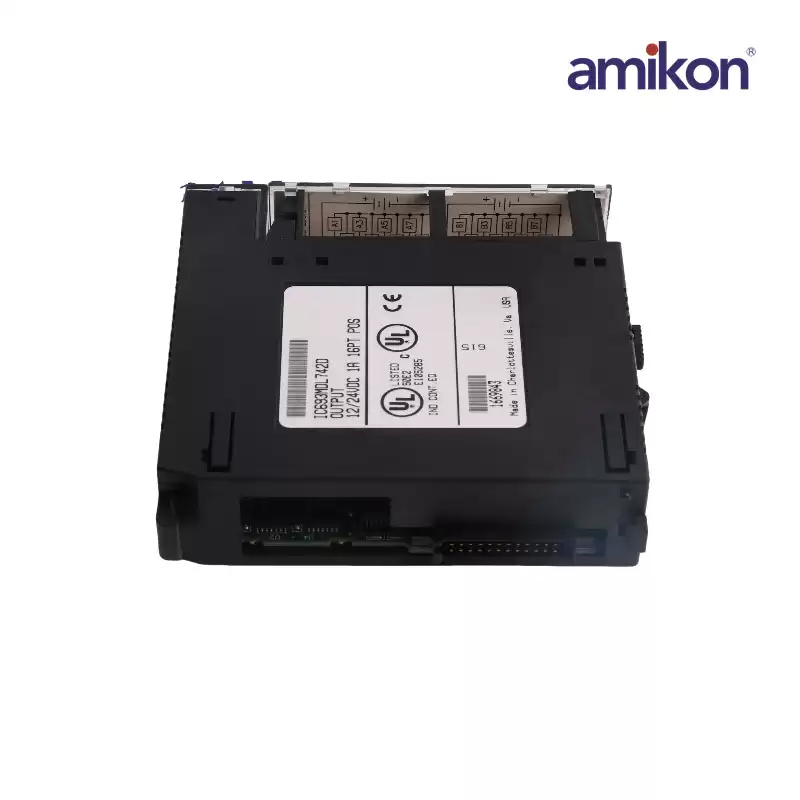

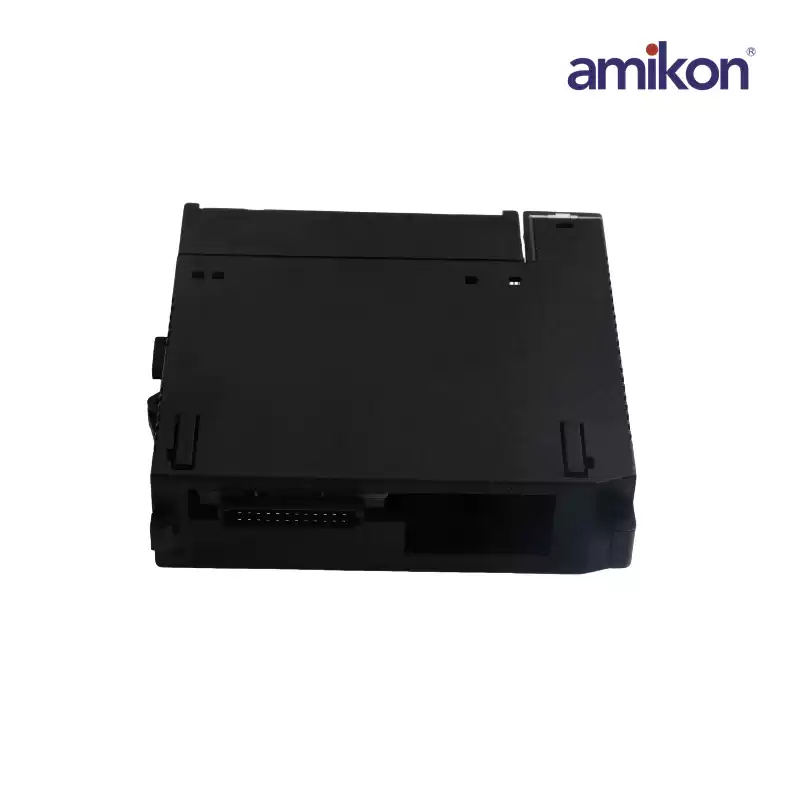

IC693MDL742 Output Module
|
|
Dimensions: 3.5x13x13.5cm
|
Weight: 0.3KG
|
Relative humidity：5 to 95%
|
|
Peak output voltage drop ：1.2 Volts
|
Maximum on response time：2 milliseconds
|
|
IC693MDL742
|
The GE Fanuc IC693MDL742 module is a 12 to 24 Volts DC positive logic Electronic Short Circuit Protection (ESCP) output module. The IC693MDL742 module provides 16 output points arranged in 2 groups of 8. Each group has a common power output terminal. The common signal for each group is monitored electronically. When a short circuit occurs, a red LED on the IC693MDL742 module switches on and the outputs in that group are switched off. This red LED is placed between the rows of green LEDs which provide status updates for all of the individual output points. The short circuit protection feature on the IC693MDL742 module does not protect the individual output points from exceeding their current rating, however, it will protect the module board when a short circuit occurs.
|
