Product Description

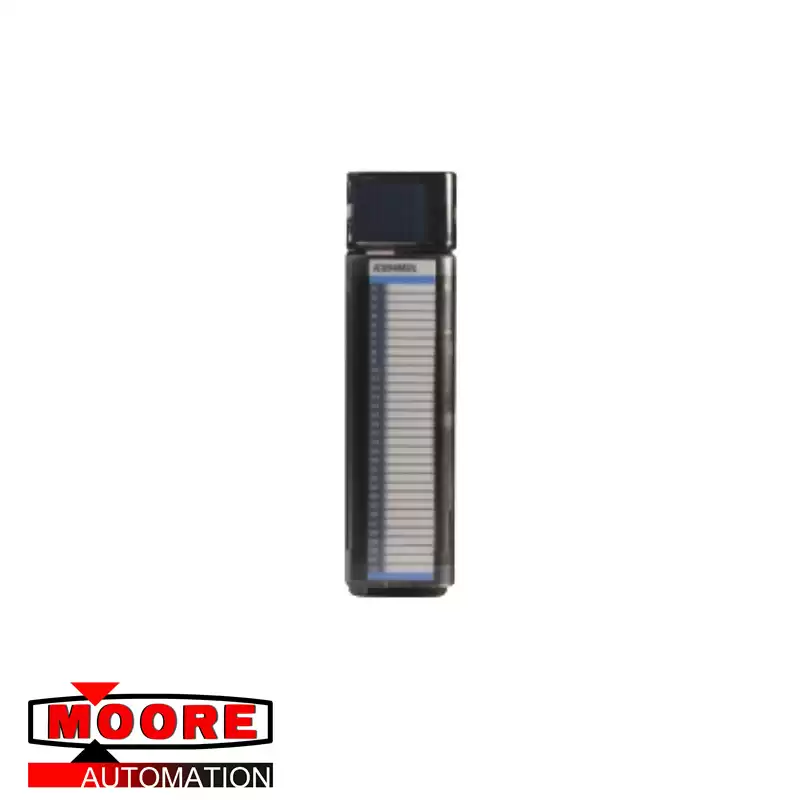

The IC693MDL742 is a Series 90-30 component module. This module is specifically a discrete output module with integral Electronic Short Circuit Protection (ESCP). This module supports Positive logic wiring configuration and delivers an output voltage range of 12-24 VDC, +20%, -15%. Similarly, it has output current ratings of 1 Ampere per point, maximum; Maximum of 4 Amperes per group when operated at 50 Degree Celsius, and 3 Amperes per group at 60 Degree Celsius. The IC693MDL742 is installed to a Series 90-30 Baseplate. It occupies a single slot and may be installed to any vacant slot except the Power Supply, CPU, and specialty module designated mounting location. There is no specific limit to the number of allowed module instances. The actual limit depends on the supported I/O capacity of the host processor, memory size, and the available baseplate slot. It can be used to energize loads such as motor starters, solenoid-actuated devices, indicating lamps, relays, and similar devices. It comes with individual channel indicators that depict the energization state of the output channel. The embedded Electronic Short Circuit Protection (ESCP) of this module is designed to monitor the common signal of each group. If a short circuit is detected, the “F” LED energizes signifying short-circuit condition. Aside from status indication, the ESCP protects the circuit board from damage. This module has a backplane power consumption of 130 mA when all outputs are energized. The output channels have a typical response time of 2 ms, maximum. This module generates an inrush current of 5.2 Amperes with a duration of 10 ms while the off-state leakage current is a maximum of 1 mA.
