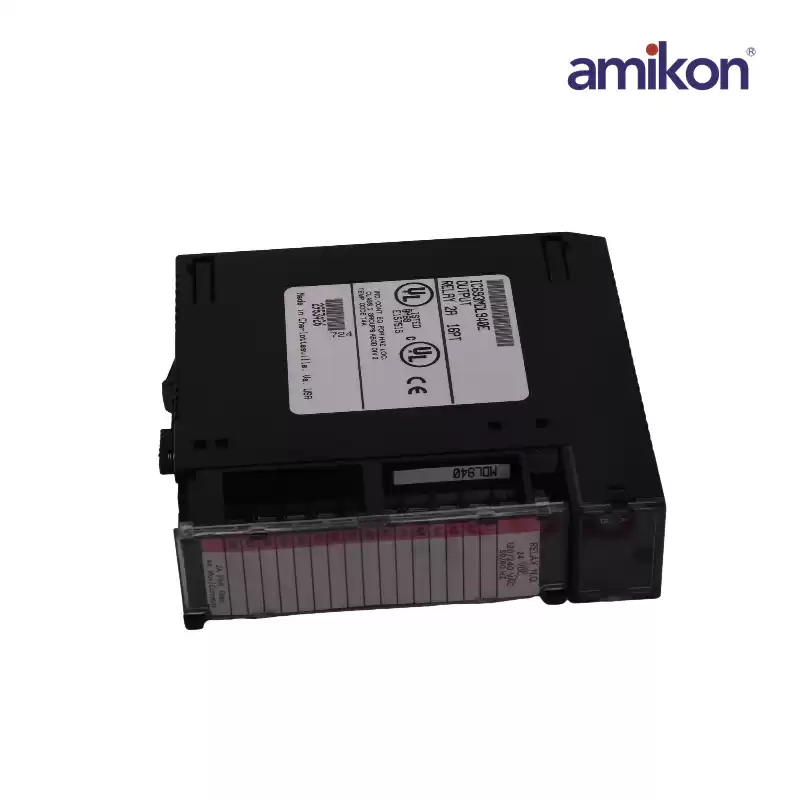

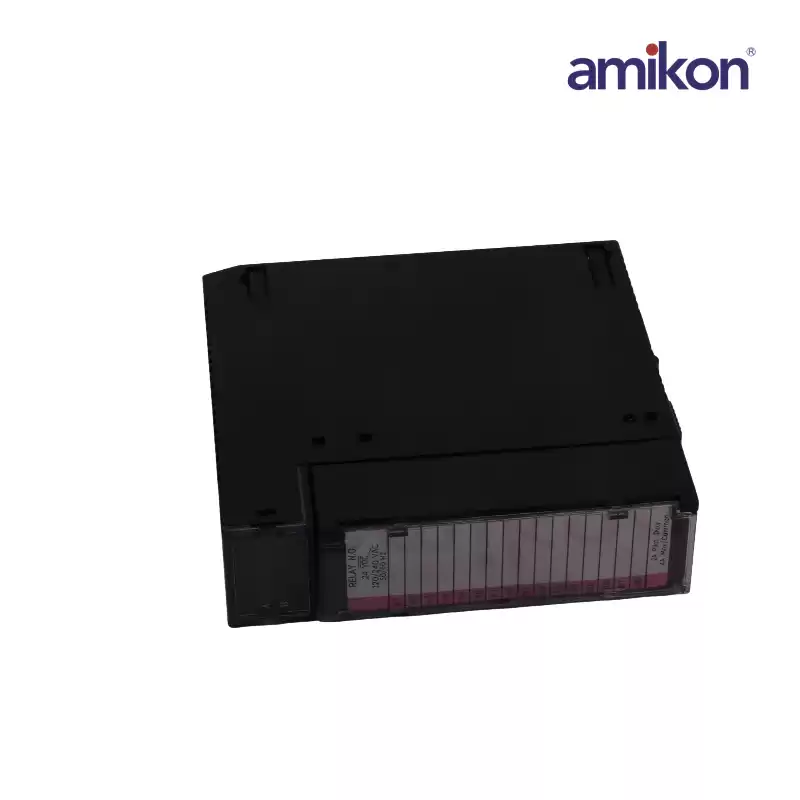

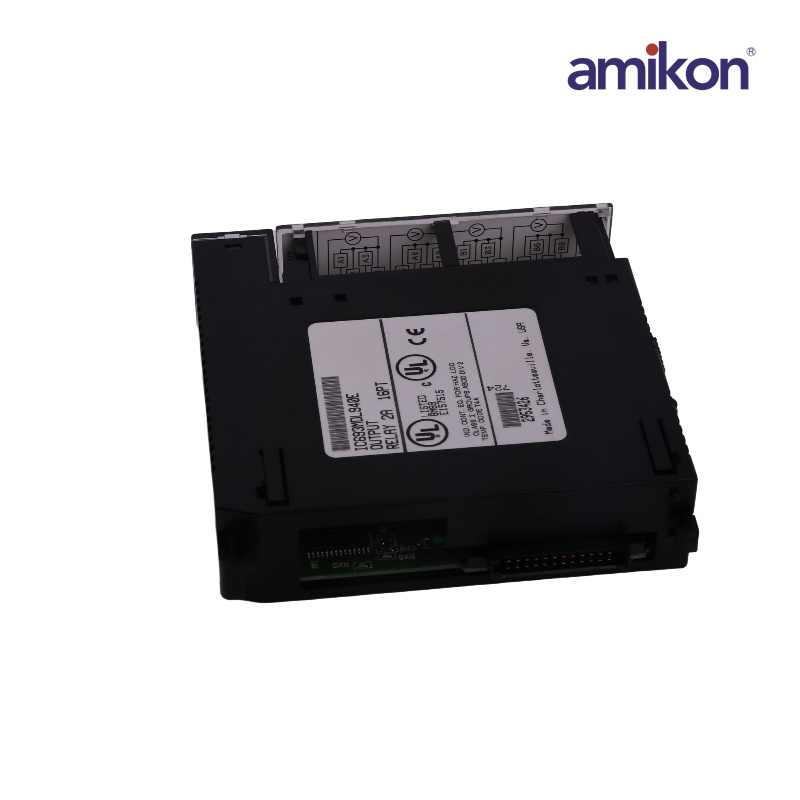

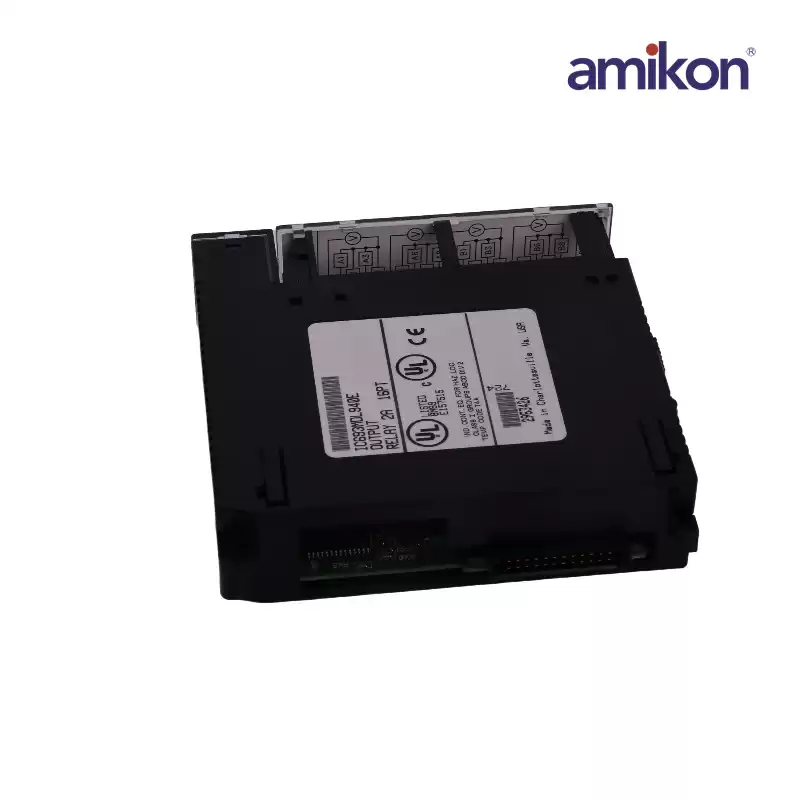

GE IC693MDL940 Solid-state relay output module

IC693MDL940 Solid-state relay output module

Dimensions: 3.6x13x13.5cm

Weight: 0.35KG

Operating Voltage：5 to 30 Volts DC 5 to 250 Volts AC, 50/60 Hz

              Maximum Inrush ： 5 Amps

Maximum Load：16 Amps maximum per module

IC693MDL940

The GE Fanuc IC693MDL940 is a Series 90-30 module. This module is a relay output module that features Sixteen (16) Normally Open (NO) output channels with 2 Ampere capacity. This module has an operating voltage range of 5-30VDC and 5 to 250VAC, 50/60 Hz. It has Four (4) groups of output with Four (4) channels per group.

The IC693MDL940 is a GE-Fanuc 90-3- Series Programmable Controller (PLC) module. This module is a Relay Output module that is designed with Four (4) groups of Four (4) output channels each, total of Sixteen (16) output channels. Each channel of this relay output module is in form of a Normally Open (NO) contact with a maximum current capacity of 2 Amperes pilot duty per output channel while the maximum output capacity per common is 4 Amperes with minimum load of 10 mA.
