IC693PWR321 Standard Power Supply module
|
|
Dimensions: 6.8x13x13.5cm
|
Weight: 0.55KG
|
Input Voltage Range: 85 to 264 VAC or 100 to 300 VDC
|
|
Nominal Rated Voltage: 120/240 VAC or 125 VDC
|
Input Power: 90 VA with VAC or 50 W with VDC
|
|

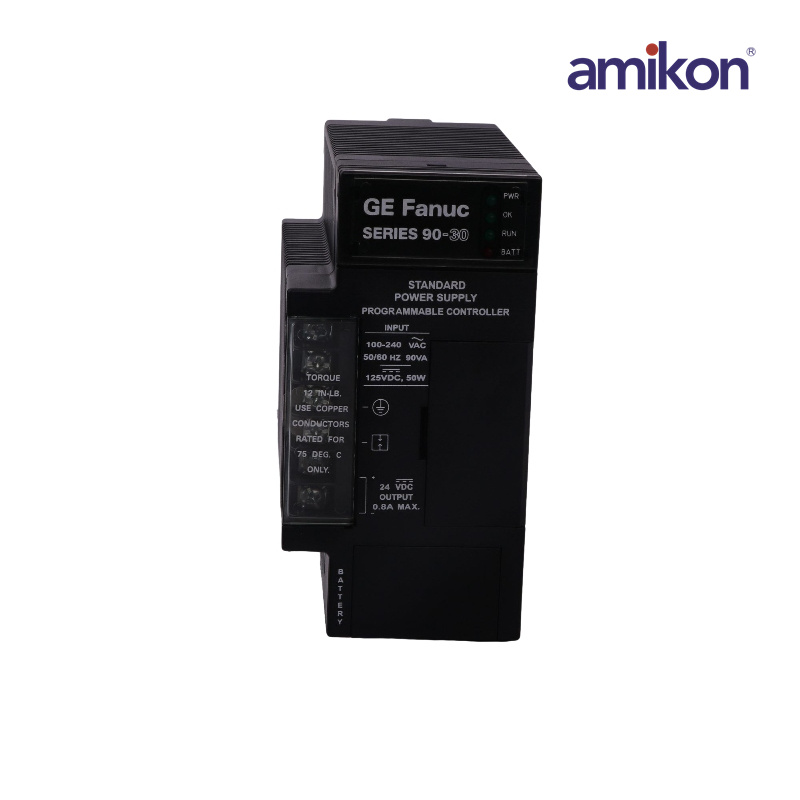

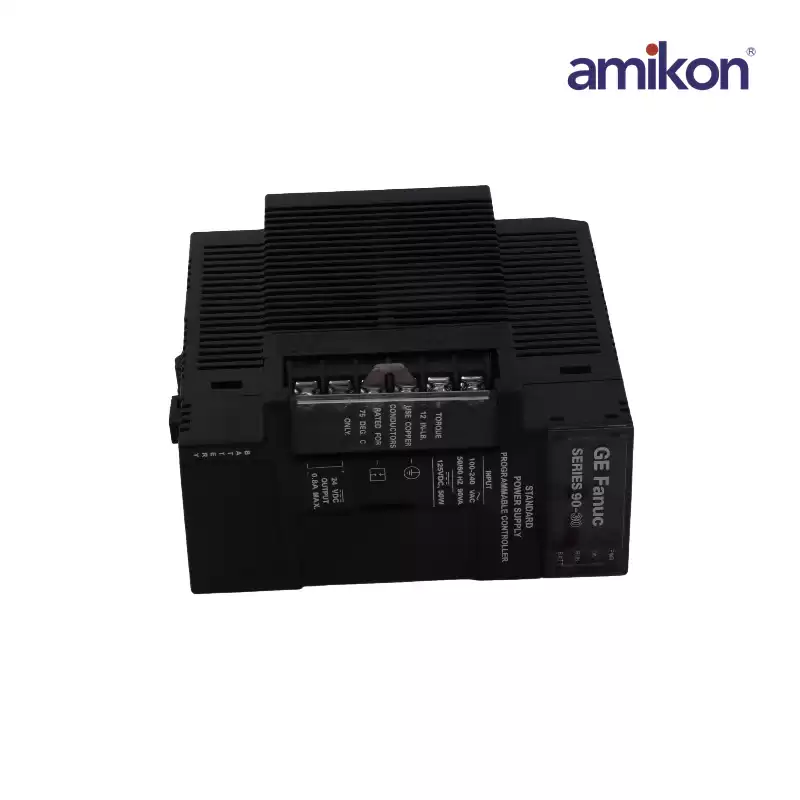

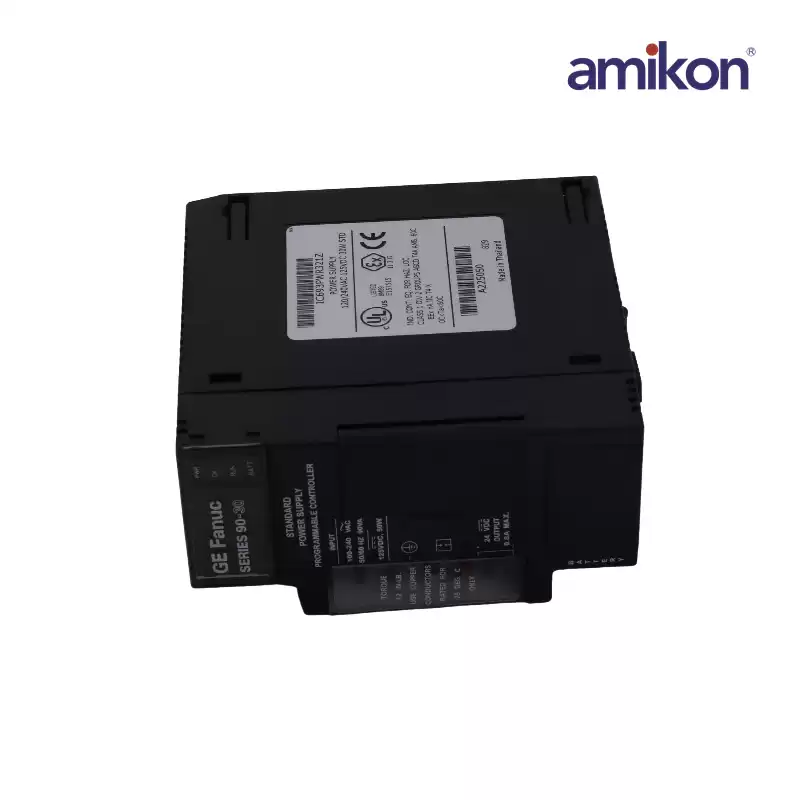

IC693PWR321
|
The GE Fanuc IC693PWR321 is a standard power supply. This unit is a 30 watt supply that can use direct or alternating current. It operates on an input voltage of either 120/240 VAC or 125 VDC. Aside from a +5VDC output, this power supply can provide two +24 VDC outputs. One is a relay power output, which is used to power circuits on Series 90-30 Output Relay modules. The other is an isolated output, which is used internally by some modules. It can also provide external power for 24 VDC Input modules.
|
