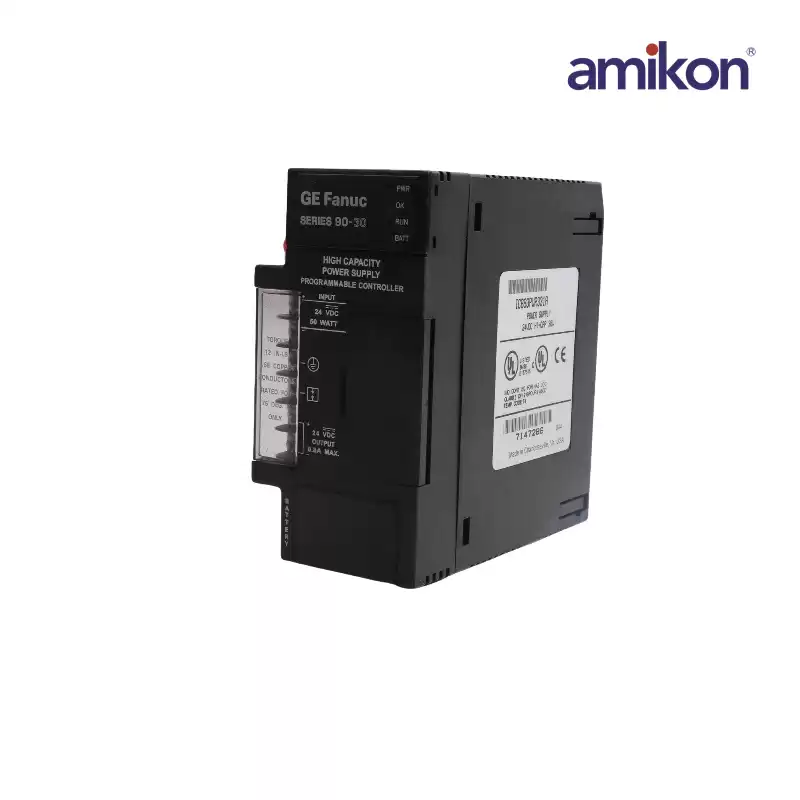

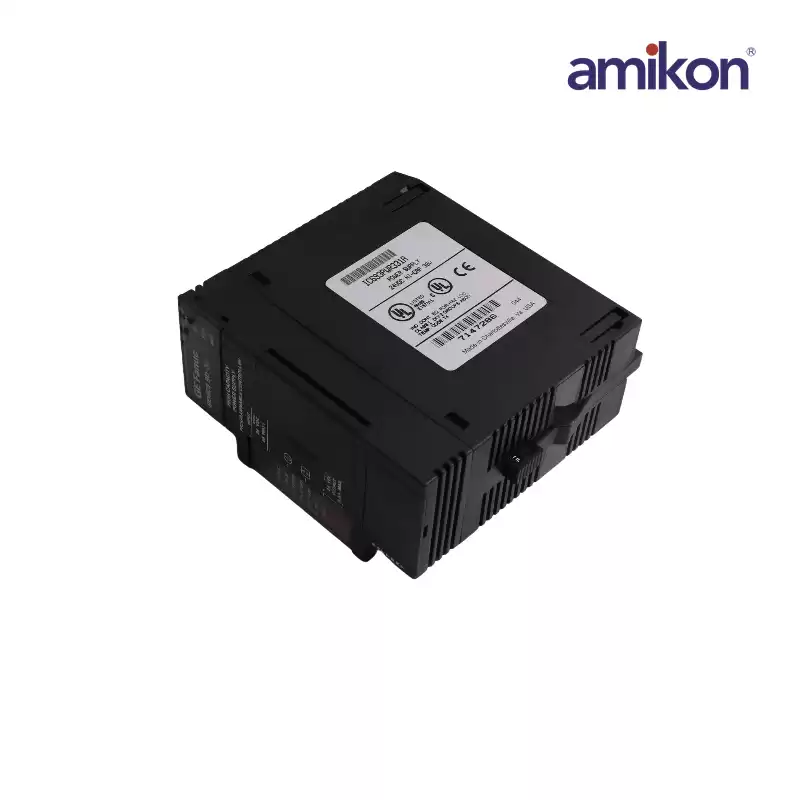

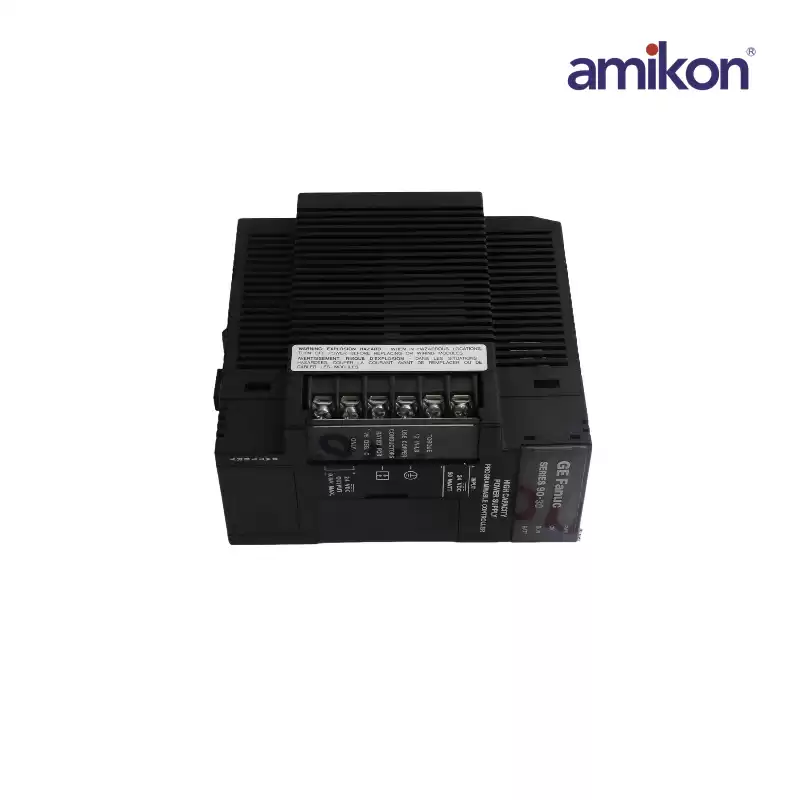

GE IC693PWR331 Power Supply
|
|
Dimensions: 6.7x13x13cm
|
Weight: 0.52KG
|
Input Voltage Range, DCStart: 21 to 56 VDC Run: 18 to 56 VDC
|
|
Inrush Current：4A peak, 100 ms maximum
|
Nominal Rated Voltage：24VDC / 48VDC
|
|
IC693PWR331
|
The IC693PWR331 is a GE Fanuc Series 90-30 Programmable module. This unit is a High-capacity power supply that provides Three (3) output voltages for a variety of functions. This power supply delivers +5VDC output with maximum power of 30 Watts, +24VDC Relay output with maximum output power of 15 Watts and +24VDC isolated output with maximum output power of 20 Watts. Being a high-capacity power supply, the 30-Watt load capacity can be assigned to the +5VDC output terminal however, the total output power shall not exceed 30 Watts. The +24VDC Relay power output is used to power electronic circuitry on output relay modules while the +24VDC isolated output module is utilized internally by some of the modules and external power for 24VDC input modules.
|
