Product Description:

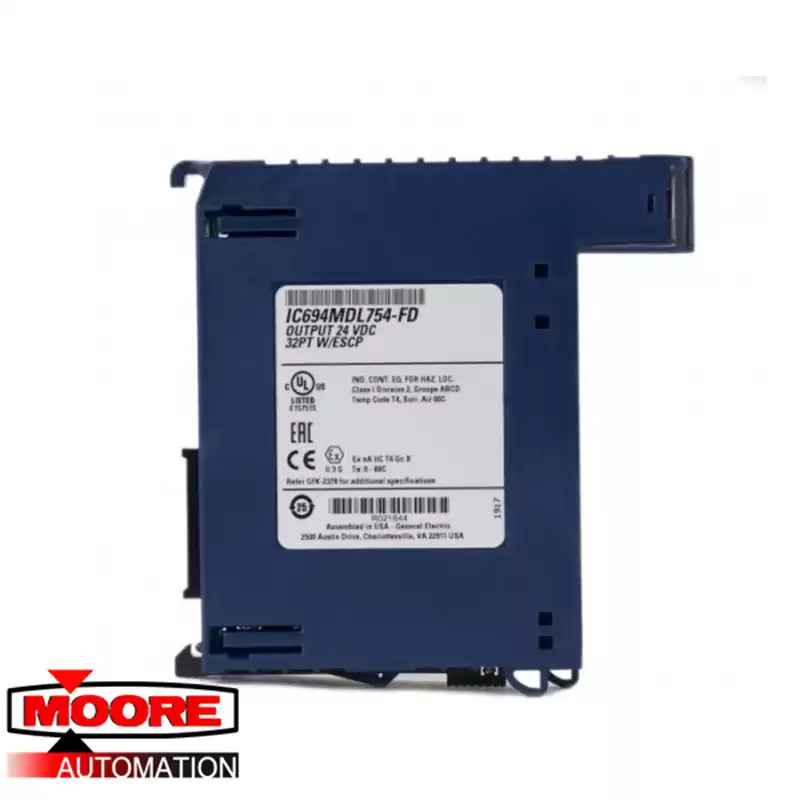

The 12/24 volt DC, ESCP 0.75A Positive Logic Output module,
IC694MDL754, provides 32 discrete outputs in two isolated groups of
16. Each group has its own common. The outputs are positive logic or
sourcing type outputs; they switch the loads on the positive side of the
power supply, and supply current to the load. The outputs can switch
user loads over the range of +12 to +24 VDC (+20%, -15%) and can
source a maximum current of 0.75 Amps per point.
Each point has electronic overcurrent/short circuit protection and
generates an individual fault if either condition exists. In addition to
output driver faults being sent back to the RX3i controller, the module
provides a loss of field side power fault, ESCP point failure within a
group, field terminal block ON/OFF status and a DIP switch
configuration mismatch fault.
