Product Description：

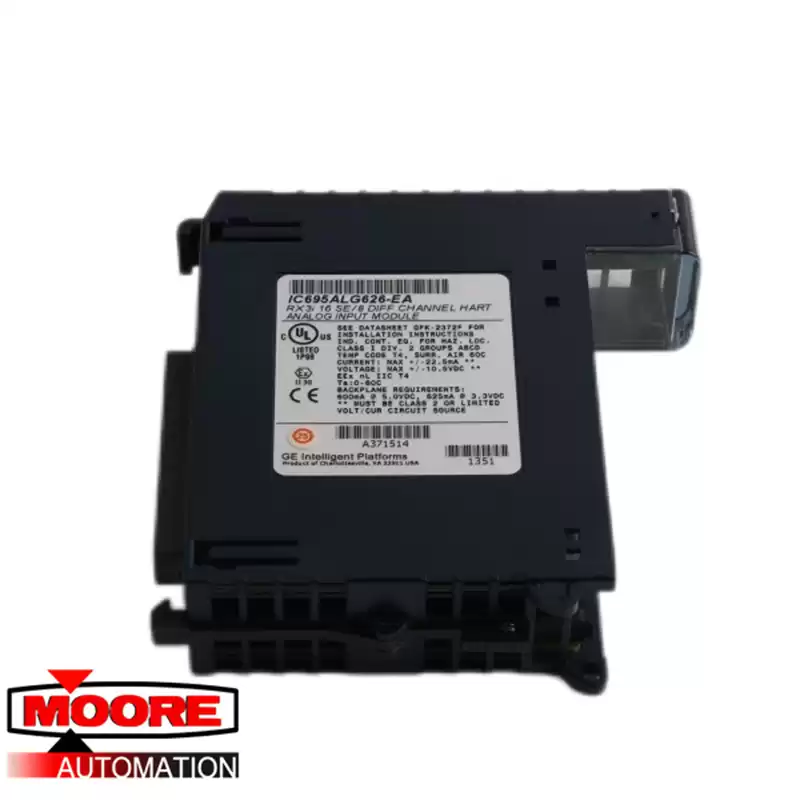

The IC695ALG626 is a Highway Addressable Remote Transducer (HART) 5.0 capable analog input module from the PACSystem RX3i platform. This module is previously manufactured by GE Intelligent Platform (GE IP) which was recently acquired by Emerson Automation. This module is mainly used to interface with analog field instruments that measures process variables and transmit the measurement to the receiving element such as the IC695ALG626 for processing. With this, the IC695ALG626 may be used with field instruments that provide 0 to 20mA, 4 to 20mA, ± 20mA current signals and ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V voltage signals.
The IC695ALG626 is capable of providing Sixteen (16) input channels if configured for single-ended inputs and Eight (8) inputs for differential wiring. With support for HART protocol, each channel can be communicated with an external HART communicator to access not only the reading but other HART parameters as well.
