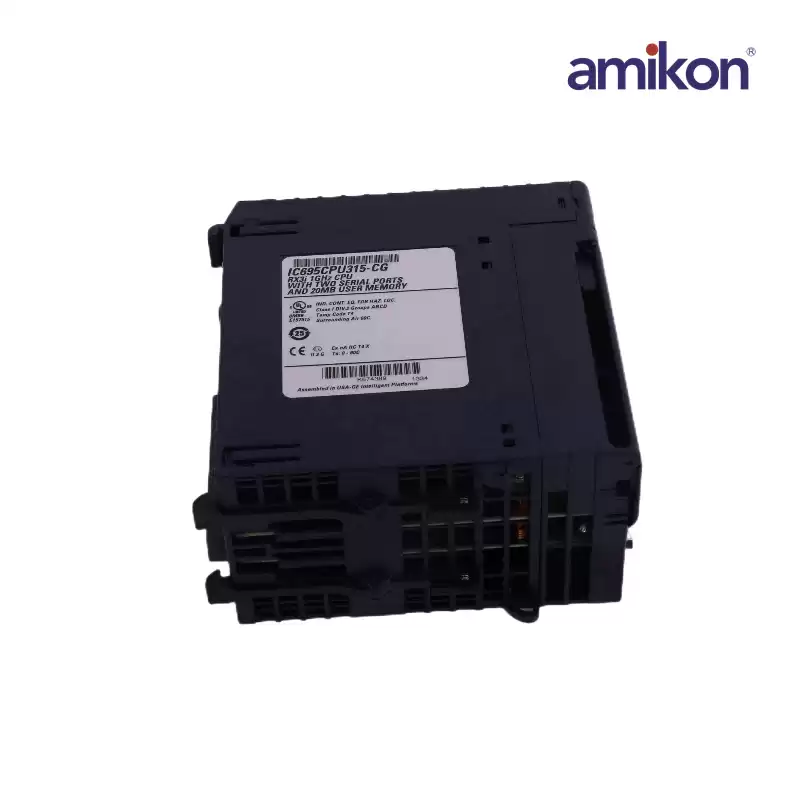

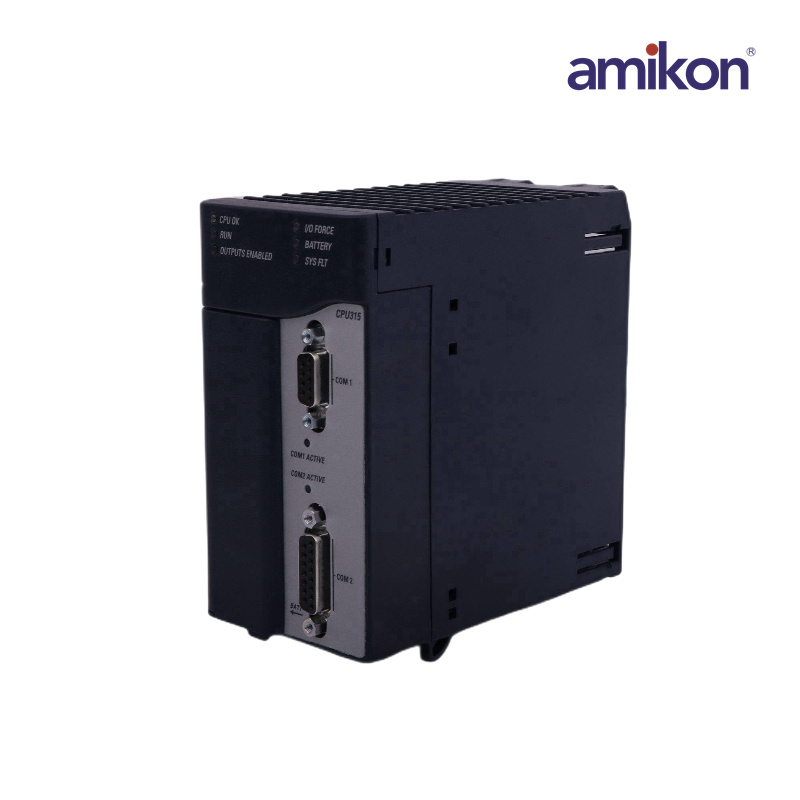

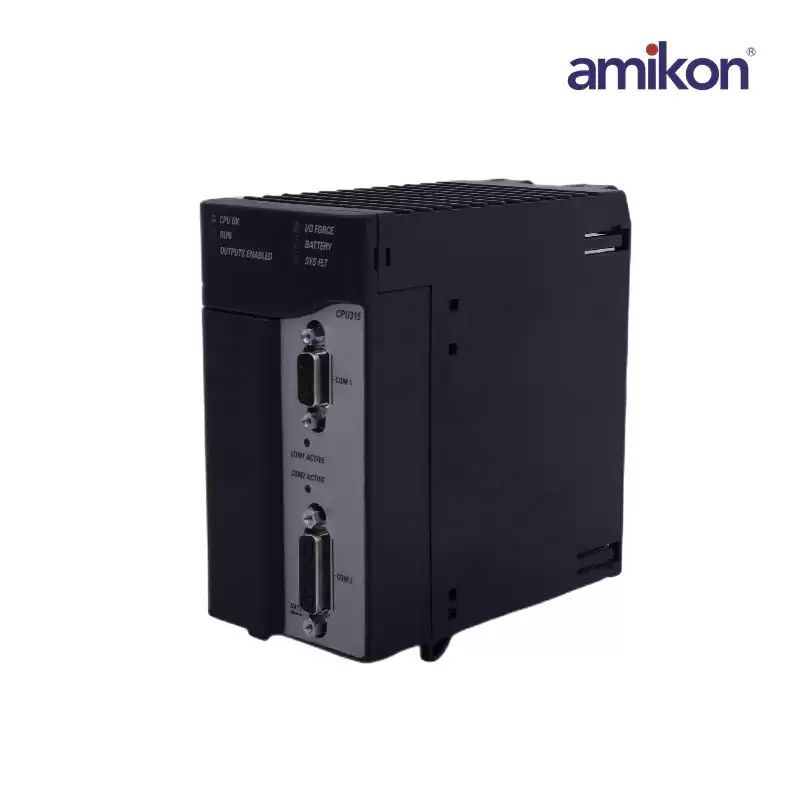

GE IC695CPU315 Central Processing Unit
|
|
Dimensions: 7.1x13.5x13.7cm
|
Weight: 0.7KG
|
Embedded communications：RS-232, RS-485
|
|
Operating Temperature：0 to 60 degrees Celsius
|
Power Requirements: +5 Vdc: 1.2 Amps nominal
|
|
IC695CPU315
|
The IC695CPU315 is a 1 GHz Central Processing Unit from the GE Fanuc PACSystems RX3i Series. It has an Intel Celeron-M microprocessor with 20 MB of user memory (also known as random access memory or RAM) and 20 MB of flash storage memory. As a programmable controller, the IC695CPU315 is capable of up to 32K I/O operations per second. It supports up to 512 program blocks at a maximum size of 128 KB per block.
IC695CPU315 uses floating point algorithms, and its firmware can be upgraded within the system. Auto-located Symbolic Variables can use as much memory as they need, up to the full 20 MB capacity of user memory. The CPU comes factory-configured with two front=facing ports, an RS-485 serial port and an RS-232 serial port. Accordingly, you have both a 9-pin connector and a 15-pin connector. The CPU supports the SNP, Serial I/O, and Modbus Slave and Master serial protocols. IC695CPU315 also supports most of the older GE Fanuc Series 90-30 modules and expansion racks.
|
