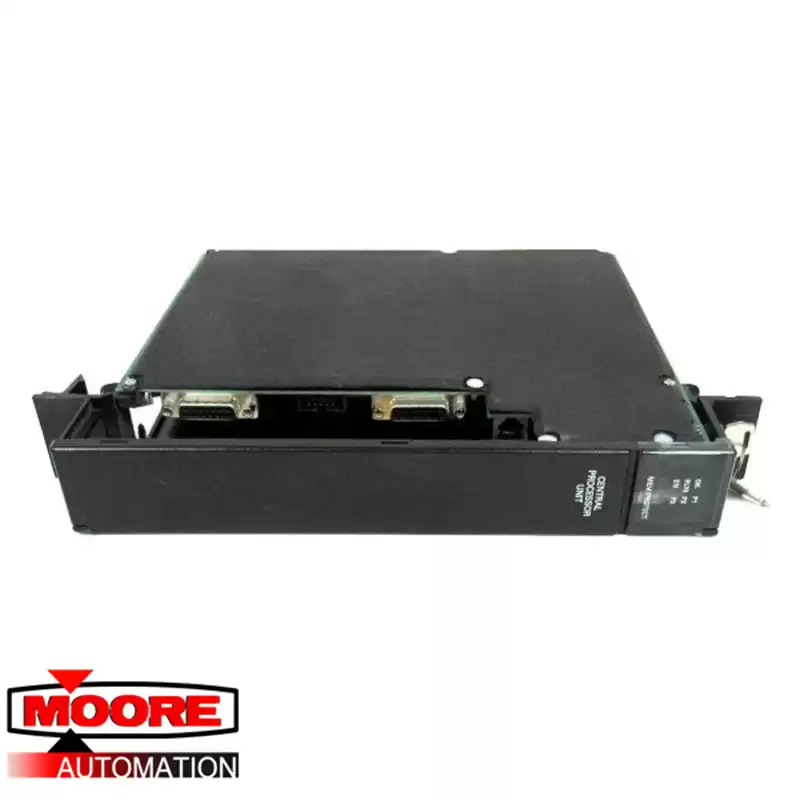

Product Description:
The module should power up and the top left (OK)
LED should blink. When the diagnostics have
completed successfully, the top left LED stays on and
the second (RUN) and third (EN) LEDs are off. The
fourth (bottom left) LED (MEM PROTECT) is off if
the keyswitch is in the OFF position. The CPU is now
ready to be programmed (if connected parallel, the
CPU can be programmed regardless of key position).
After the program has been verified the toggle switch
can be moved to the appropriate operation mode
position; RUN WITH OUTPUTS ENABLED, RUN
WITH OUTPUTS DISABLED, or STOP. The seven
LEDs indicate the position of the toggle switch,
memory protection status, status of serial port activity,
and the state of the program.
