Product Description:

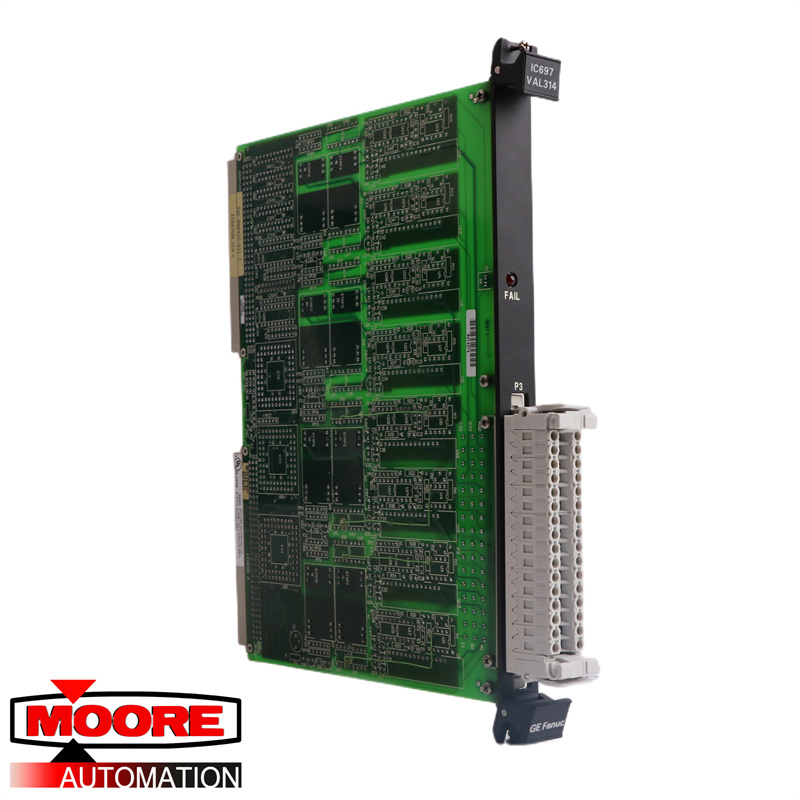

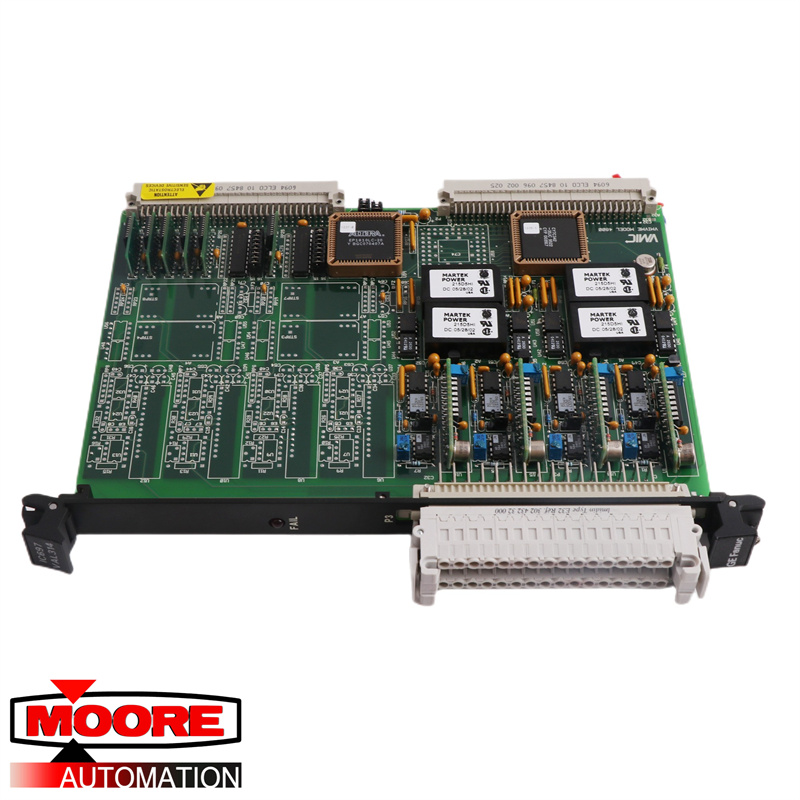

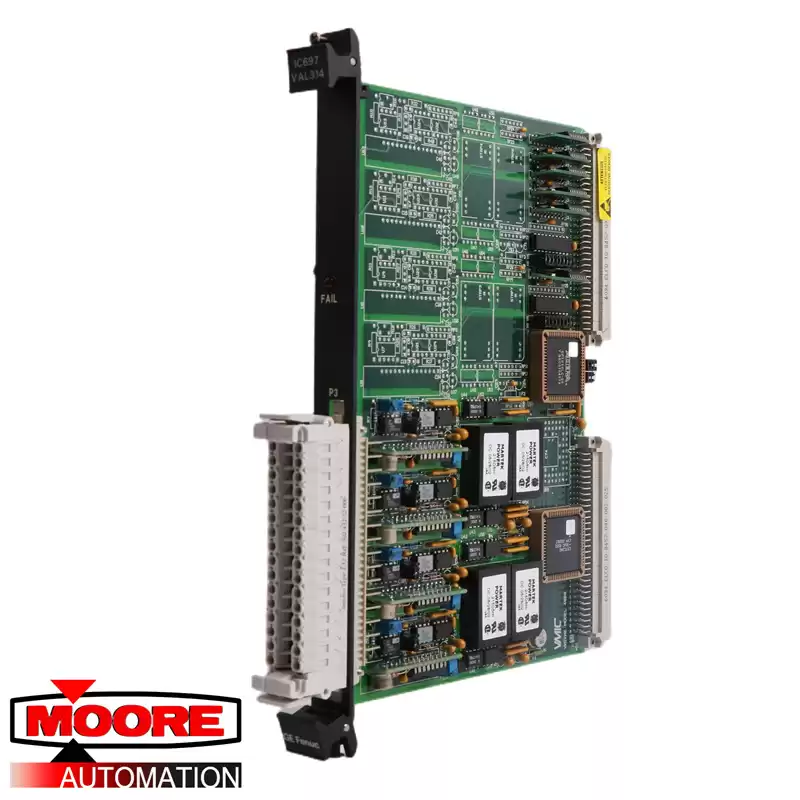

The IC697VAL3xx is available with either four or eight
isolated high-quality 12-bit analog output channels on a
single 6U form factor VMEbus board. Each channel is
electrically isolated from all other channels and from the
VMEbus, as illustrated in the functional block diagram
shown in Figure 1, and operates with sustained isolation
voltages as high as 1,500V. Output voltage ranges are
selectable as ±2.5, ±5 and ±10V, or 0 to +2.5V, 5V or
10V.
The Analog Output Board supports a full 10mA
load throughout the voltage ranges.
Outputs can be disconnected (voltage mode) or placed in
a minimal state (current mode) under program control
during system testing, and disconnected or placed in a
minimal state automatically at SysFail. Minimal state is
the lowest current value in range.
