GE IS200AEADH1ACA Rectangular Circuit Board

The IS200AEADH1ACA is a Rectangular Circuit Board used in the GE Mark VI series of control systems.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200AEADH1ACA
 Product ID  IS200AEADH1ACA
 Catalog  Mark VI
 Description  IS200AEADH1ACA Rectangular Circuit Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200AEADH1ACA



IS200AEADH1ACA



The IS200AEADH1A is a board component manufactured by GE as part of their Mark VI Speedtronic system for the management of gas and steam turbine systems.  This system is also designed to be used for BOP (balance of plant) controls. The Mark VI Speedtronic rack systems typically have a 13- or 21- slot VME arrangement.

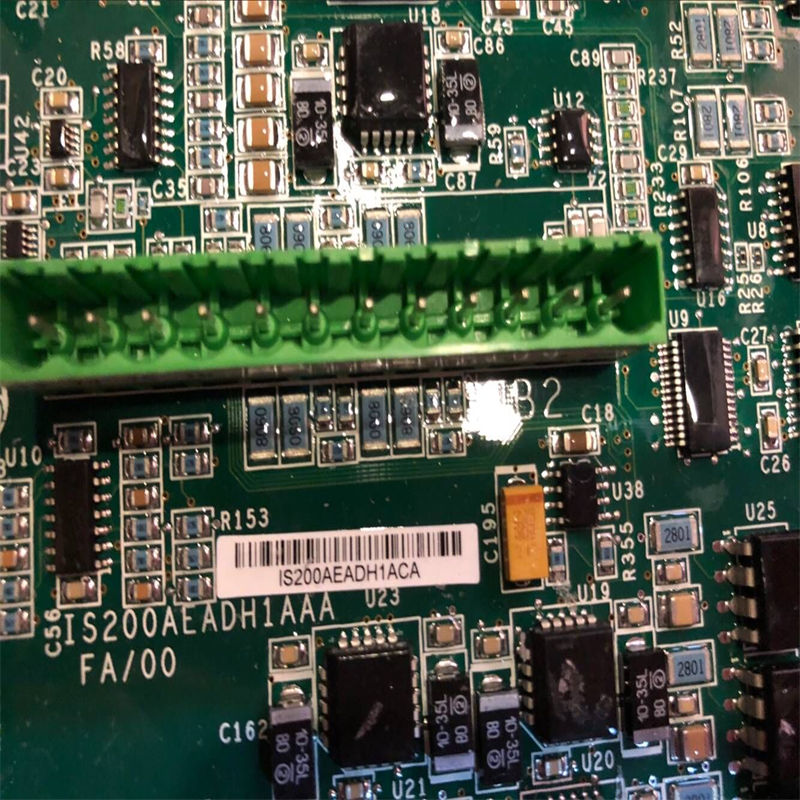

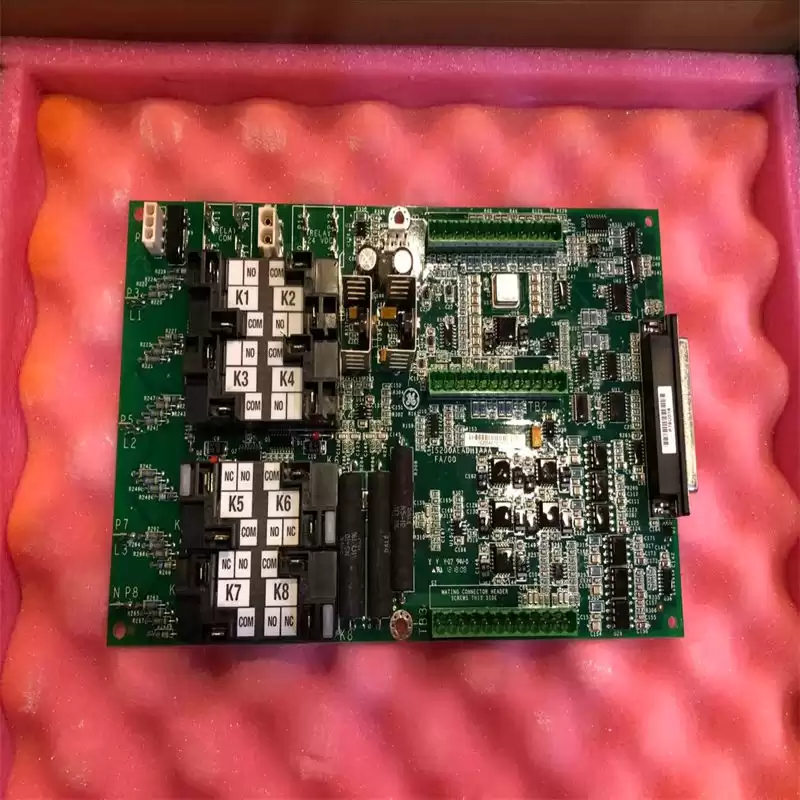

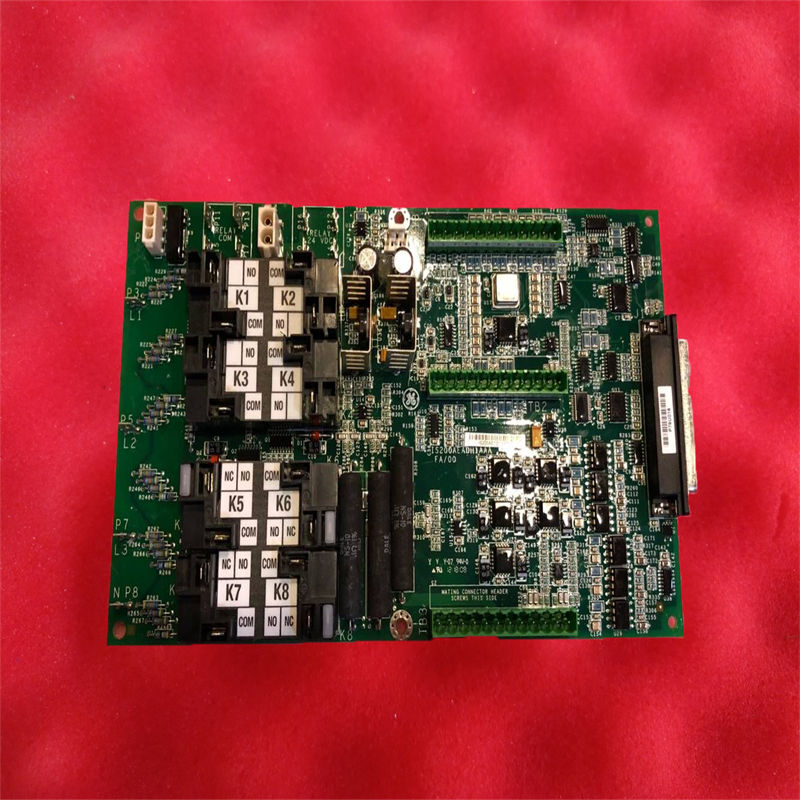

The IS200AEADH1A is a rectangular circuit board that does not have an attached front faceplate. Corner factory-made drill holes allow for mounting options. The board has three vertical-pin terminal strips with twelve pins per strip.  These terminal strips are placed on the board in a parallel arrangement.  Other connectors on the board include stab-on connectors, plug connectors, and a right-angled connector located along the right edge of the board.
The board is populated with two heat sink components and eight relays, which are located in a group. Additionally, there are wire wound resistors and resistors made of other material, capacitors,and integrated circuits.


  •  » Datasheet Link

GE IS200AEADH1ACA Rectangular Circuit Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
