IS200AEBMG1AFB Printed Circuit Board

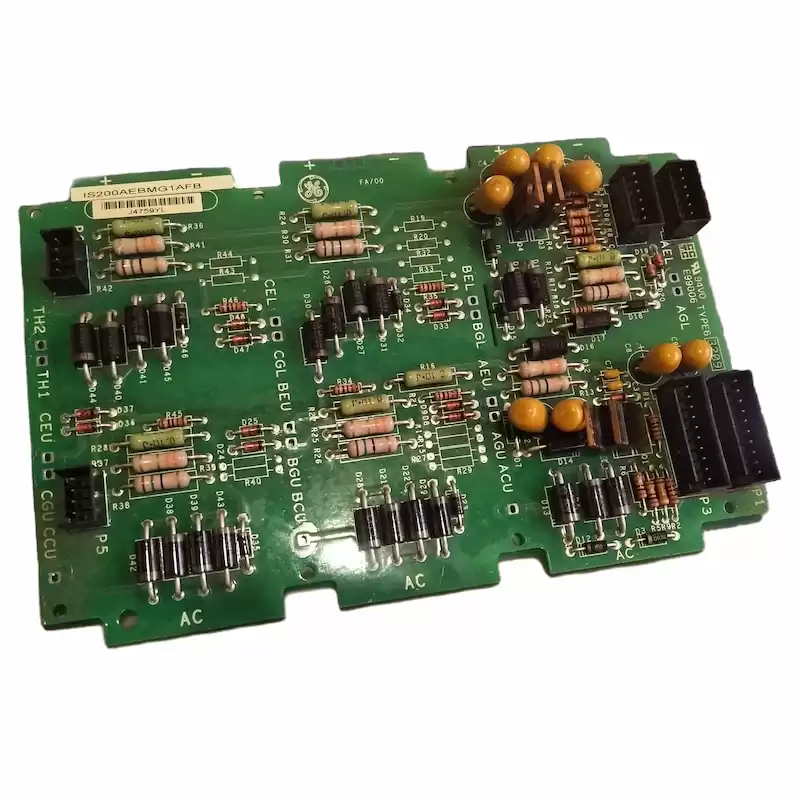

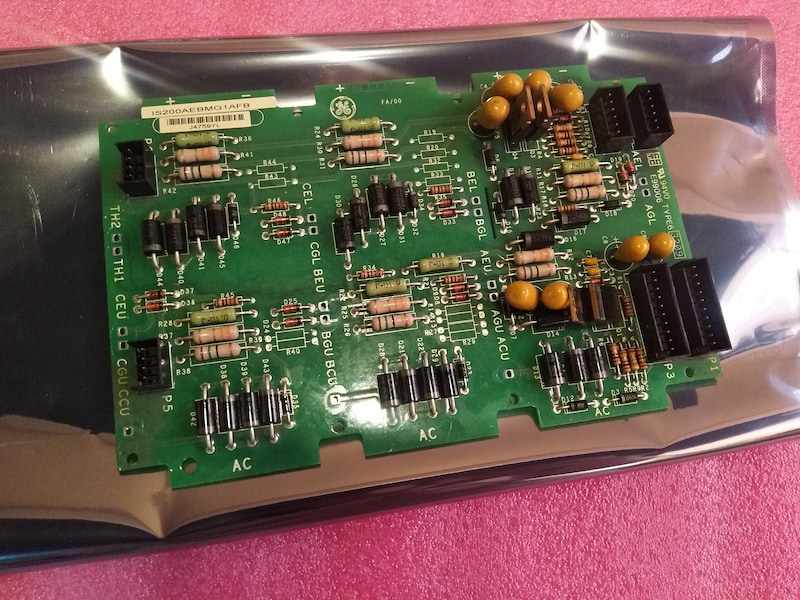

The IS200AEBMG1AFB is composed of a roughly rectangular board surface that has been mounted to a carrier frame. This frame, marked 1151x122OBQ01, allows the board to be more easily mounted within the rack system. The board does not include a typical Mark VI front faceplate with mounting hardware to lock it into place. This mounting frame extends beyond the board’s surface on either long side with multiple screw mounts. There are also cutouts on the board that allow access to factory-drilled holes on the carrier frame’s surface. Several of these are used to secure the board to the carrier using clips and screws.
The IS200AEBMG1AFB board itself is marked with reference designations, the board’s id number, the GE logo, and several identifying codes like 94V0 and E99006. The board is also marked along its edge with + and – signs and with “AC.” These correspond to the aforementioned screw mounts on the carrier frame.
Components mounted to the IS200AEBMG1AFB include six vertical plug connectors, four transistors, over forty diodes, over 40 resistors that use various materials including metal film, and a dozen capacitors. Additional information about the board’s components and its use can be found using GE manuals or data sheets.
The IS200AEBMG1AFB is a product of General Electric's proven and reliable Mark VI series of automatic drive assemblies and is categorised as an advanced engineered building block and therefore requires the use of specific advanced components. The board has a series of diodes on the base plate, all of which are labelled 'D' followed by the appropriate number, making a total of 42 diodes (i.e. D1, D2, D3). These diodes are there to control the flow of current through the printed circuit board as the model requires 42 direction changes.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200AEBMG1AFB |
| Ordering Information |
IS200AEBMG1AFB |
| Product Catalog |
Mark VI |
| Description |
Circuit Board |
| Female Ports |
P1 to P6 |
| Energy Storage |
Twelve Capacitors |
| Dimensions |
26 cm x 18 cm x 3 cm |
| Weight |
0.8 kg |
