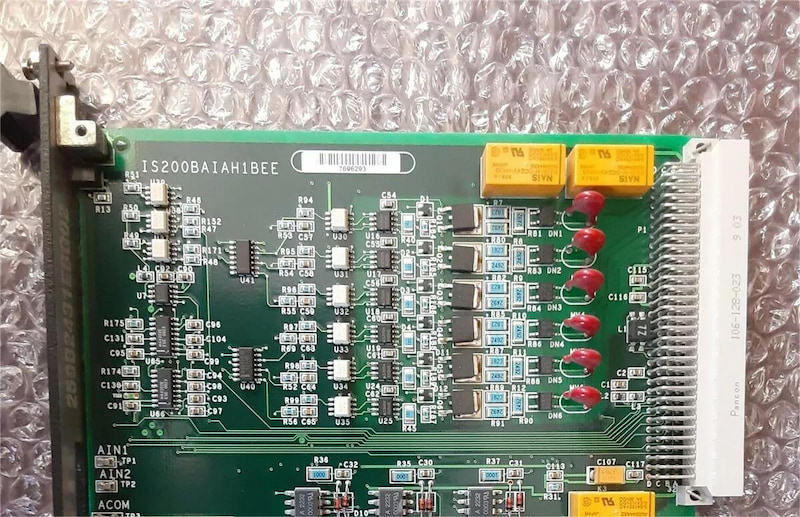

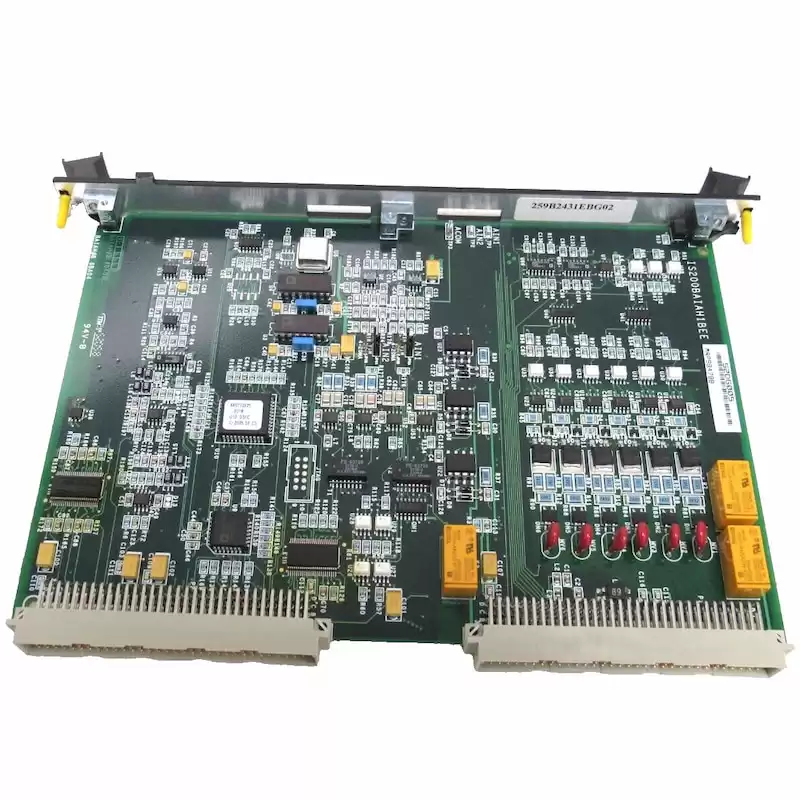

IS200BAIAH1BEE Bridge Application Interface Board
The IS200BAIAH1BEE Bridge Application Interface Board (BAIA) provides isolation and an earth ground reference for all signal inputs from user terminal boards. It outputs customizable and application to the processor board, as follows:
• Six isolated, differential, universal 115 V ac, 50/60 Hz sinusoidal (or 24−105 Vdc) discrete logic
• Three separately controlled form C relay contacts are provided for discrete outputs.
• Two bipolar (±10V) analog input channels, each with a differential amplifier followed by a synchronous voltage-controlled oscillator (VCO).
• VCO pulse trains transmitted differentially to isolate the analog inputs.
The BAIA converts digital inputs from the DSPX to analog outputs: channels A and B are available for customer use at the terminal board; channels C and D are used to drive panel meters. The BAIA provides an RS-232C I/O interface between the DSPX and the drive's keypad and PC connections.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200BAIAH1BEE |
| Ordering Information |
IS200BAIAH1B |
| Product Catalog |
Mark VI |
| Description |
Bridge Application Interface Board |
| Voltage |
115 Vac |
| Frequency |
50/60 Hz
|
| Dimensions |
18 cm x 12 cm x 3 cm |
| Weight |
0.8 kg |
