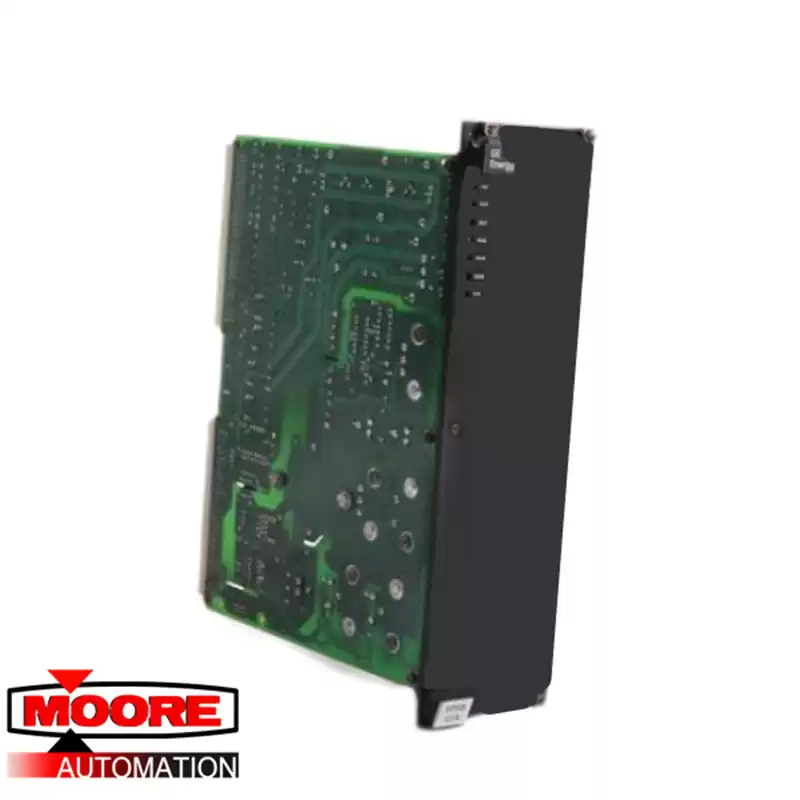

The IS200BICLH1AED is a GE created IGBT Drive/Source Bridge PCB (BICL). This board was created for the Innovation Series.
The main purpose of the IS200BICLH1AED is to act as a go-between for an Innovation Series device and a Bridge Personality Interface PCB (BPIB, SCNV, or BPIA). The BICL normally acts as the interface between them. It uses an interface that has a system fault display and a PWM speed control. The card has a serial 1024-bit memory that possesses information about the board’s identification and revision.
The only thing on the faceplate of the IS200BICLH1AED is a label that tells the user to install the board in Slot 5 only and two brackets. The label is important because installing the BICL card into the wrong slot could cause damage to the card or damage to the card slot. The brackets on the faceplate can help install or remove the BICL from a card rack. Next to the brackets are two screws that can be used to further secure the BICL to the rack.
