» Description |
| Manufacture | GE |
| Model | IS200BICLH1AFF |
| Product ID | IS200BICLH1AFF |
| Catalog | Mark VI |
| Description | IS200BICLH1AFF IGBT Drive/Source Bridge Interface Board |
| Origin | United States (US) |
| Dimension | 205 mm x 156 mm x 26.5 mm |
| Weight | 1kg |

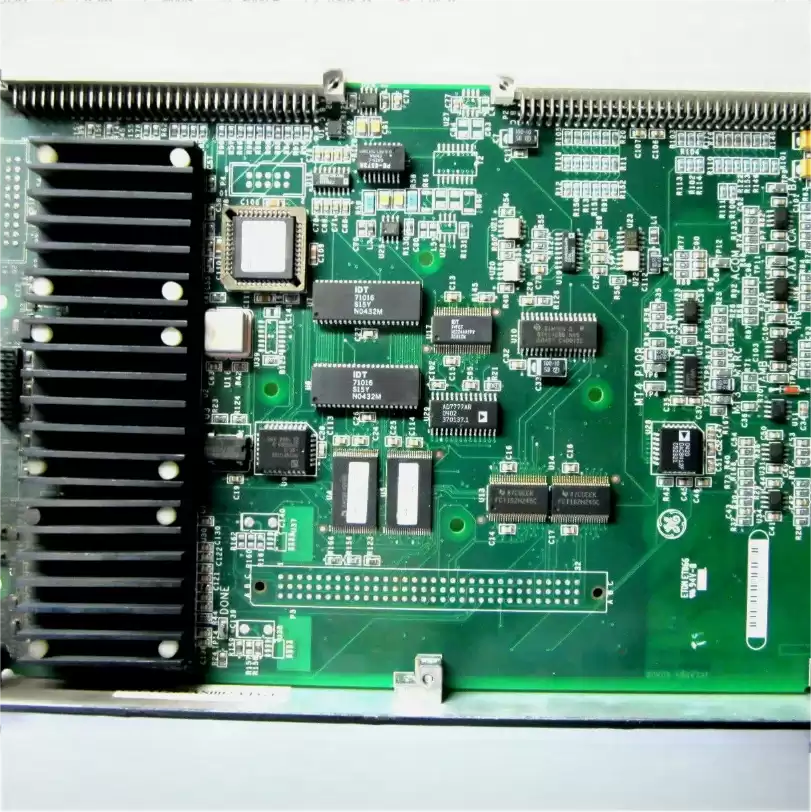

The IS200BICLH1AFD is a circuit board component made by General Electric as part of their Speedtronic Mark VI system Series specifically. The IS200BICLH1AFD functions as an IGBT Drive/Source Bridge Interface Board, providing an interface between the Innovation Series Drive main control PCB and several Bridge Personality Interface PCB components.The IS200BICLH1AFD is capable of acting as an interface for panel and system fault strings, ambient and bridge temperature monitoring, and pulse width modulated speed control. All of these functions are implemented through the use of an electronically programmable logic device or EPLD. This EPLD can be programmed from the main control boards central processing unit or CPU, and only during initial power-up or hard reset of the greater assembly.
The IS200BICLH1AFD has a 1024 bit serial memory device for board ID and revision information. The board is designed with four relays, four RTDs (for thermal detection,) as well as various integrated circuits, transistors, capacitors, and resistors. The board’s front baseplate connects to the greater drive assembly via two screw mounts and is considered blank; not featuring any labeling or LED indicators for fault determination. Beyond all of the technologically specialized interior components necessary to include with the IS200BICLH1AFD assembly, this drive component part offers a protective circuit board coating for basic PCB survivability. As designated by the "H1" group designation in this printed circuit board's part number, this PCB is protected by a layer of special conformal coating.
The IS200BICLH1AFD is designed to install in slot five of the drive assembly only and may be damaged if installed incorrectly. Do not insert or adjust board connections while the board is powered up, as this could damage the internal drive assembly greatly, or even worse, cause injury to the drive administrator.
-
» Datasheet Link
GE IS200BICLH1AFD IGBT Drive/Source Bridge Interface Board Datasheet
-
Warranty
Topteng offers a 12-month warranty from the date of deliveryIn the event of non-conforming product (if damaged or incorrect product is received),Any nonconformity must be reported within 7 days of receipt of goods. -
Delivery Time
For the in stock items, we will send the order out within 5-7 days after receive the payment.We can shipping all over the world via DHL,UPS,Fedex and EMS
