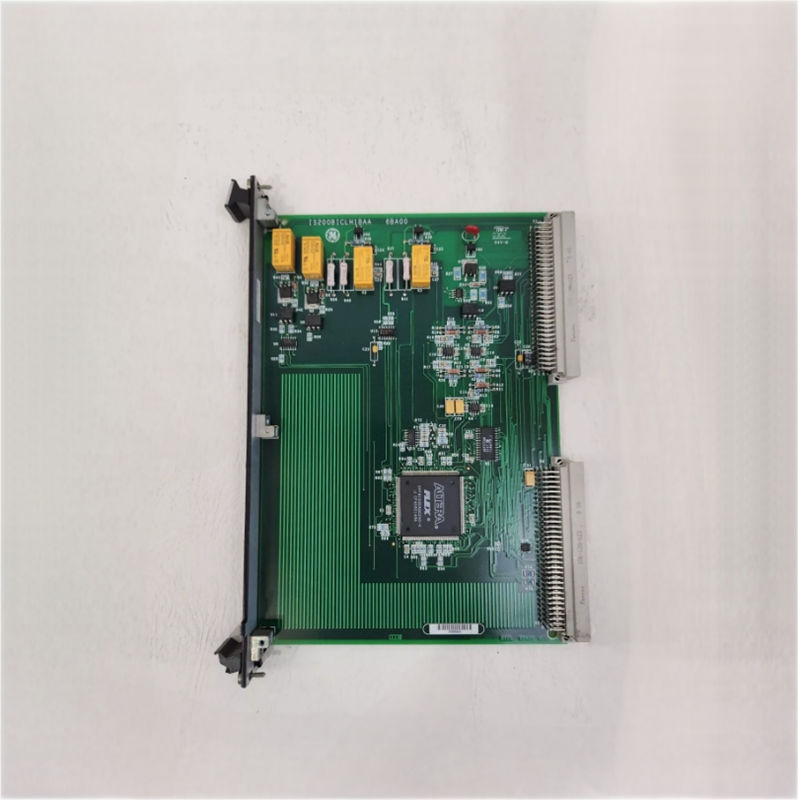

GE IS200BICLH1BAA IGBT Drive/Source Bridge Interface Board

The IS200BICLH1BAA is a GE IGBT Drive/Source Bridge Interface Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200BICLH1BAA
 Product ID  IS200BICLH1BAA
 Catalog  Mark VI
 Description  IS200BICLH1BAA IGBT Drive/Source Bridge Interface Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200BICLH1BAA



The IS200BICLH1BAA  functions as an IGBT Drive/Source Bridge Interface board. The board interfaces between the main control board and boards like the BPIA/BPIB or the SCNV board. The IS200BICLH1BAA also provides bridge and ambient temperature monitoring, as well as a panel and system fault string interface. Control logic on the IS200BICLH1BAA is configured in the CPU of the main control board using an electronically programmable logic device, or EPLD. The IS200BICLH1BAA is built with two backplane connectors. These are marked P1 and P2. These plug into a VME type rack.  No other connectors are located on the board. The board has very few components but does have a serial 1024-bit memory device, as well as four relays.  Each relay has a relay diagram printed on its top surface. The board has no test points, fuses, or adjustable hardware. The IS200BICLH1BAA is used in the control and management systems of General Electric-aligned gas, steam, and even wind turbine automated drive assemblies.



  •  » Datasheet Link

GE IS200BICLH1BAA IGBT Drive/Source Bridge Interface Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
