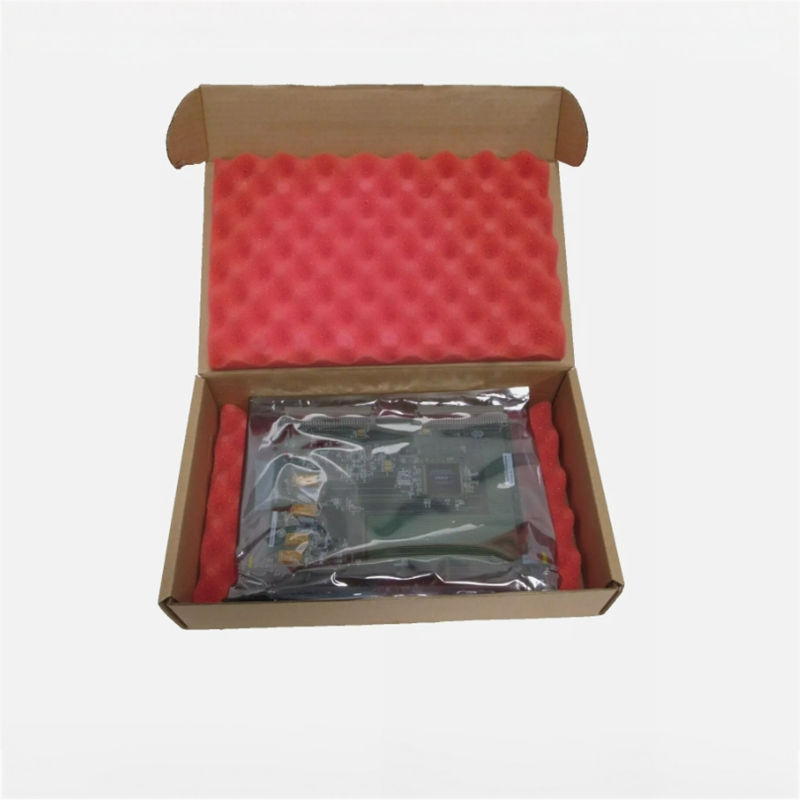

GE IS200BICLH1BBA IGBT Drive/Source Bridge Interface Board

The IS200BICLH1BBA is a GE IGBT Drive/Source Bridge Interface Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200BICLH1BBA
 Product ID  IS200BICLH1BBA
 Catalog  Mark VI
 Description  IS200BICLH1BBA IGBT Drive/Source Bridge Interface Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200BICLH1BBA



The IS200BICLH1BBA functions as a Bridge Interface Board and is used to provide an interface between the BPIA Bridge Personality Interface and the Innovation Series Drive main control.
The IS200BICLH1BBA is responsible for multiple functions within the system. This includes processes like fan control, speed control, and temperature monitoring. The board has four RTD sensor inputs to maintain these processes. Control logic for these functions comes from an electronically programmable logic device configured from the CPU or Central Processing Unit. Additionally, there is a serial 1024-bit memory device located on the surface of the IS200BICLH1BBA that maintains the board ID and revision information. The IS200BICLH1BBA is designed with two backplane connectors (P1 and P2.) These connect the board into a VME type rack. These are the only connections on the BICL board. The board is designed with a blank front panel with two clips that lock the unit into place. The front panel is marked with the GE logo, with the board number, and with the caution to “Install in Slot 5 only.”  Installation in the wrong slot may damage the board.



  •  » Datasheet Link

GE IS200BICLH1BBA IGBT Drive/Source Bridge Interface Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
