GE IS200BPIAG1AEB Bridge Personality Interface Board

The IS200BPIAG1AEB is a GE Bridge Personality Interface Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200BPIAG1AEB
 Product ID  IS200BPIAG1AEB
 Catalog  Mark VI
 Description  IS200BPIAG1AEB Bridge Personality Interface Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200BPIAG1AEB

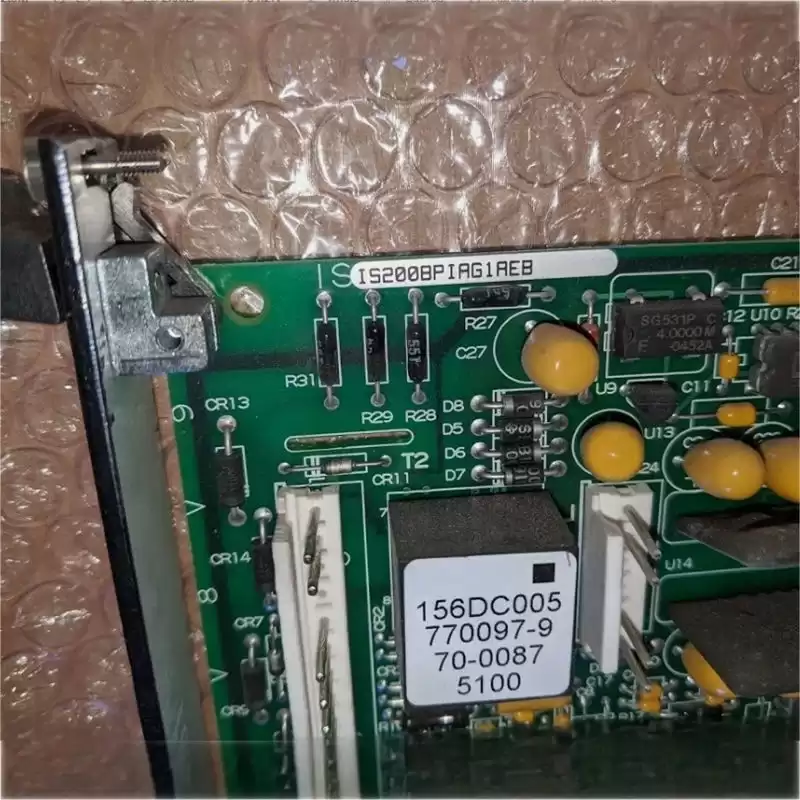

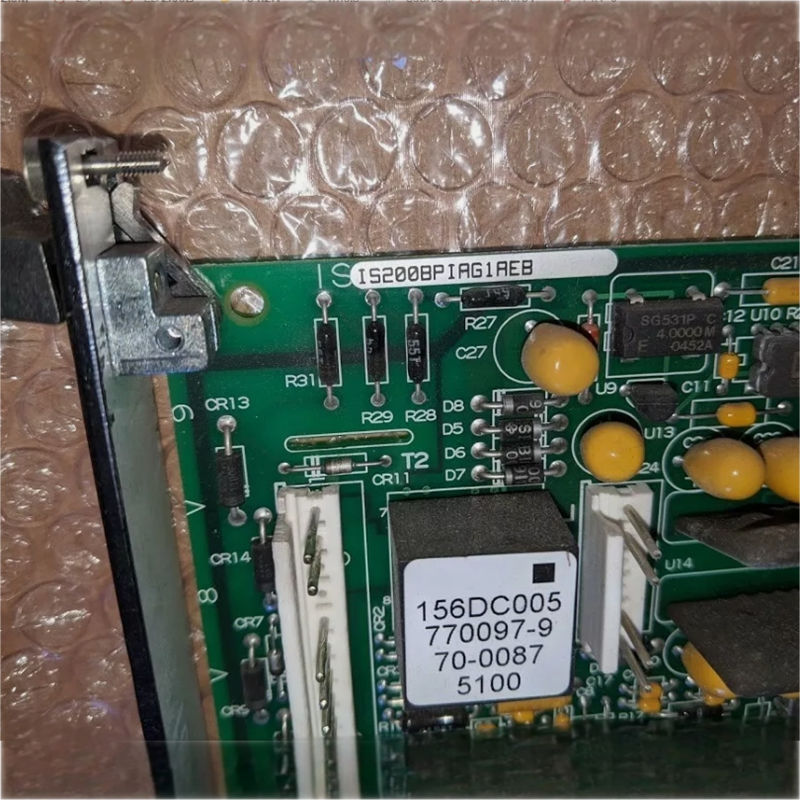

The IS200BPIAG1AEB is a Drive Bridge Personality Interface Card manufactured by General Electric for Mark VI series. The IS200BPIAG1AEB provides a connection between the control and power electronics of an IGBT ac drive. The IS200BPIAG1AEB is designed with seven board connectors.  This includes its primary P1 connector that connects into the rack system and handles a variety of signals, including gate drive and shunt fault signals, application data from the BPIA board, and some bridge control connections. The board has six other male vertical pin connectors (APL, BPL, CPL, AAPL, BAPL, CAPL,) that provide connections to the phase A/B/C IGBTs.
The IS200BPIAG1AEB has three transformers, six transistors, and nine resistor network arrays. It also has a 1024-bit memory device to hold revision and board information. The  IS200BPIAG1AEB has a faceplate. This helps to identify the board within the rack, and also is marked with the board location. If the board is plugged into the wrong slot it may become damaged.



  •  » Datasheet Link

GE IS200BPIAG1AEB Bridge Personality Interface Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
