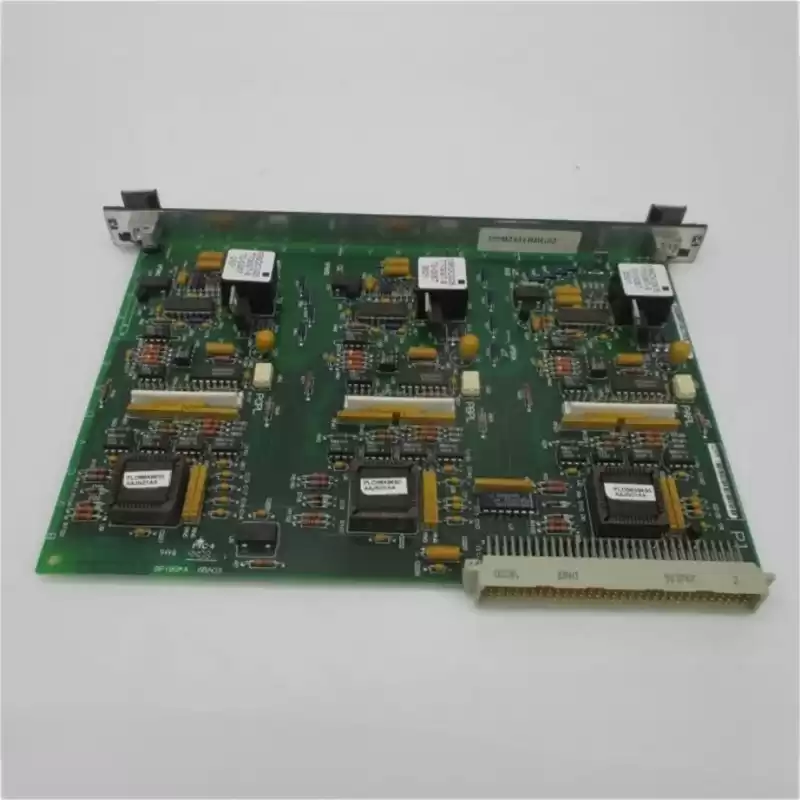

GE IS200BPIBG1AEB Bridge Personality Interface Board

The IS200BPIBG1AEB is a GE Bridge Personality Interface Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200BPIBG1AEB
 Product ID  IS200BPIBG1AEB
 Catalog  Mark VI
 Description  IS200BPIBG1AEB Bridge Personality Interface Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200BPIBG1AEB



The IS200BPIBG1AEB is an IGBT Drive Bridge Personality Interface Board manufactured by General Electric and used in the Mark VI IS2000 series. When the model is being used, it will supply signal conditioning to the P1 connector logic level digital control signals to three or potentially six Gate Driver/Shunt Feedback boards as well as isolated VCO feedback circuits, which will, in turn, monitor the DC link and VBC and VAB phase output voltages.
Another feature of the IS200BPIBG1AEB model is that it can capture faults uncovered by the Gate Driver boards and then reports the fault information. The logic signals that are sent to or from the attached Gate Drive board will be double optocoupled with an isolated voltage of 5 V interim supply which is derived from the 17.7 Vac feed. This model can control faults for upper and lower gate drivers and is individually latched per phase. When an adjoining IGBT has been commanded to turn ON, the latched faults associated with the driver circuit will be enunciated on the suitable phase P fault line.
There are six available power supplies on the IS200BPIBG1AEB model; these power supplies are derived from the secondaries of three transformers, one per phase. There is a voltage alternating current of 17.7 Vac; this Vac is a square wave input and will be supplied to the transformer primaries supplied from the P1 connector.
