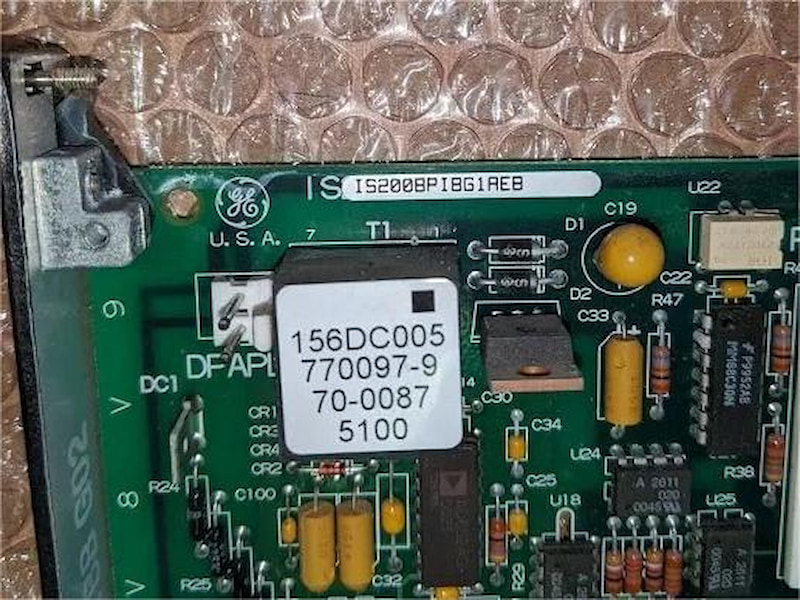

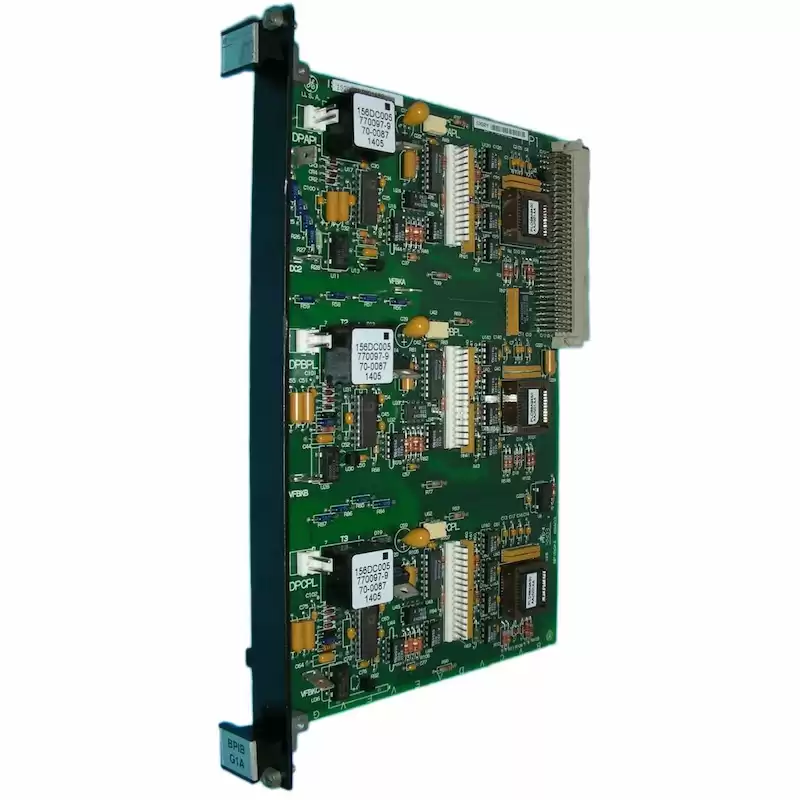

IS200BPIBG1AEB Bridge Personality lnterface Board
The IS200BPIBG1AEB IGBT Drive Bridge Personality lnterface Board provides the signal conditioning required to interface P1 connector logic level digital control signals to three or six Gate Driver/Shunt Feedback boards and isolated VCO feedback circuits to monitor the dc link, VAB and VBC phase output voltages.
The IS200BPIBG1AEB board also captures faults detected by the Gate Driver boards and reports the fault infoarmation. Some faults are processed locally by the board. The main control interface is through the P1 connector, All logic signals to and from the Gate Driver boards are double optoccupled with an isolated 5 V interim supply derived from the 17.7 V ac feed.
Control logic for each phase is implemented in an Electronically Programmable Logic Device (EPLD) for that phase. With the exception of common configuration, clock, and reset functions, these three devices pocess the following functions independently.
· UP/DOWN driver control.
· Driver soft shutdown on fault.
· Fault latching
· Parallel bridge latched fault reporting
· parallel bridge current feedback VCO output summing
The IS200BPIBG1AEB board has the capability to control six driver boards in a parallel bridge configuration or three driver boards for a single bridge configuration.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200BPIBG1AEB |
| Ordering Information |
IS200BPIBG1A |
| Product Catalog |
Mark VI |
| Description |
IGBT Drive Bridge Personality lnterface Board |
| Voltage |
17.7 Vac |
| Current |
500 mA |
| Dimensions |
18 cm x 12 cm x 3 cm |
| Weight |
0.8 kg |
