GE IS200BPIIH1A IS200BPIIH1AAA

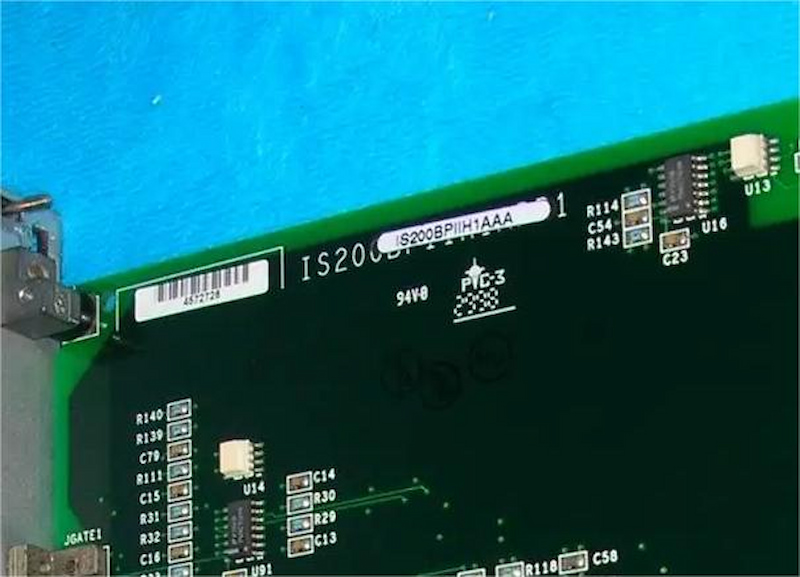

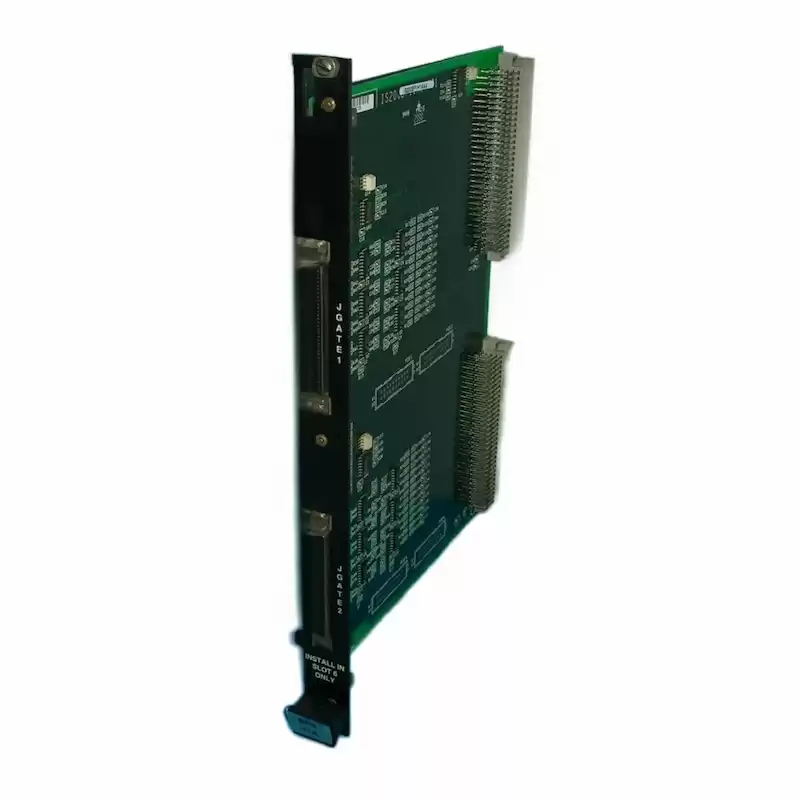

The IS200BPIIH1A Bridge Power Interface Board(BPII) is a bridge power interface for bridges using lntegrated Gate Commutated Thyristor (IGCT) switching devices. The board occupies connectors J16 and J21 of the IS200CABP Cabe Assembly Backplane Board (CABP) in an Innovation Seriesrm board rack.
The IS200BPII board provides for the relay of 24 gate firing commands and 24 gate status feedback signals between the IS200BICI Bridge Interface Control Board (BICI) and two remotely mounted IS200GGXI Expander Load Source Boards (GGXI). The GGXI board translates the firing and status commands between these signals and the fiber-optic interfaces for access to gate driver modules located in the bridge.
The BPII board is designed to interface with and complement the BICI board. The BPII board is connected to the BICI board through the Innovation Series board rack backplane. Card front connectors on both boards connect to the GGXI boards. High voltage isolation to the BPII and BICI boards is provided by fiber-optic connections to the GGXI boards. Voltagefeexl back isolation is provided by attemuation from the DS200NATO Voltage Feedback Scaling Board (NATO).
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200BPIIH1AAA |
| Ordering Information |
IS200BPIIH1A |
| Product Catalog |
Mark VI |
| Description |
Bridge Power Interface Board |
| Voltage |
17.7 Vac |
| Current |
500 mA |
| Dimensions |
18 cm x 12 cm x 3 cm |
| Weight |
340 g |
