GE IS200BPIIH1AAA Power Bboard Module

The IS200BPIIH1AAA belonging to the GE Speedtronic Mark VI series

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200BPIIH1AAA
 Product ID  IS200BPIIH1AAA
 Catalog  Mark VI
 Description  IS200BPIIH1AAA Power Bboard Module
 Country of Origin  United States (US)
 Dimension  205 mm x 156 mm x 22.5 mm
 Weight  0.60kg



GE IS200BPIIH1AAA Power Bboard Module

The IS200BPIIH1AAA belonging to the GE Speedtronic Mark VI series is a power connection bridge designed for the Innovation series drives.

The GGXI board uses the IS200BPIIH1AAA board to transmit port commands and status signals via RS-422 signals. The RS-422 controller and receiver use digital signals, and if the cable is disconnected, the door alarm will sound. The IS200BPIIH1AAA uses a serial ID PROM chip with a pull-up resistor. A pull signal indicates that all cables are correctly connected to the signal path.

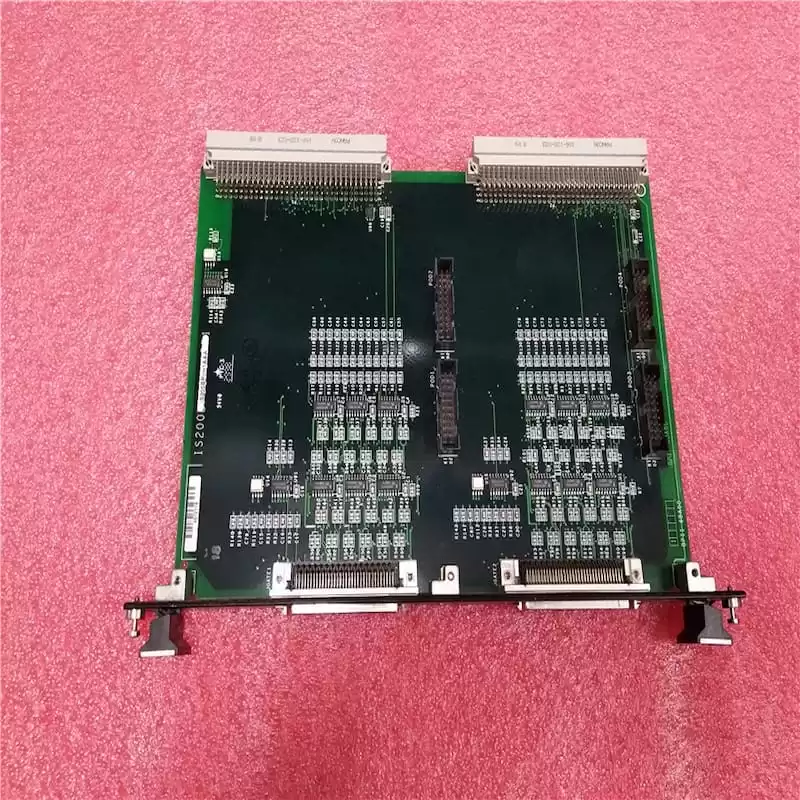

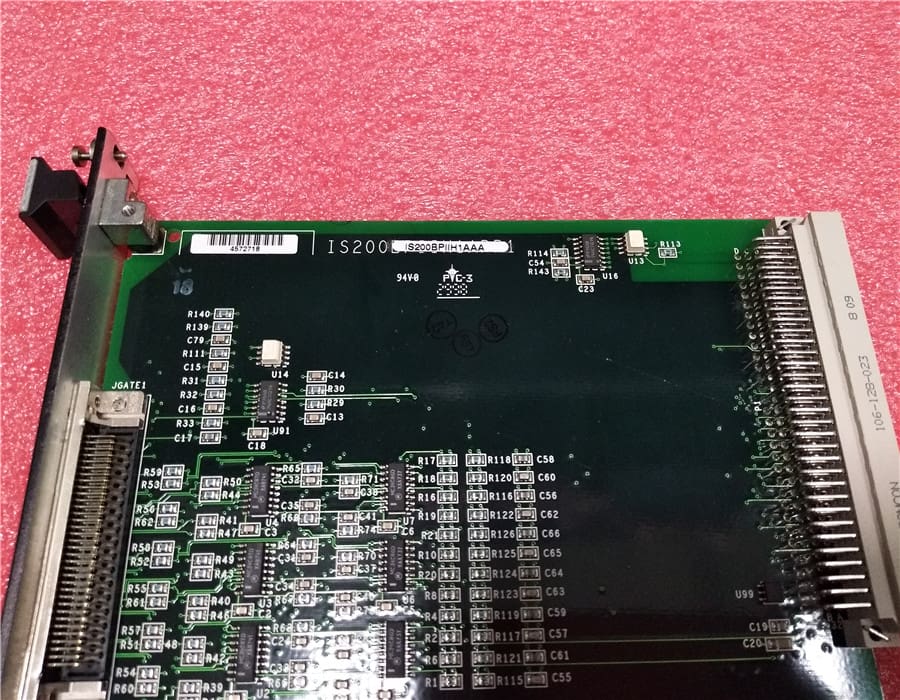

The IS200BPIIH1AAA has four connectors on the front, two on the front panel and two on the back. The rear connector is a 128-pin backplane connector. The exact diagram is in GEI-100298. The two front connectors are designed to connect to the GGXI board. Each connector (labeled JGATE1 and JGATE2) has 68 pins. There is no part on the front panel, but it is marked with the GE symbol, the panel number and the correct location of the panel (slot 6). Installing the damaged parts of the boards. Don't lose. The board has no chips, user test signals, LED indicators or repair tools.


  •  » Datasheet Link

GE IS200BPIIH1AAA Power Bboard Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
