GE IS200CABPG1BAA Control Assembly Backplane

The IS200CABPG1BAA is a GE Control Assembly Backplane.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200CABPG1BAA
 Product ID  IS200CABPG1BAA
 Catalog  Mark VI
 Description  IS200CABPG1BAA Control Assembly Backplane
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg

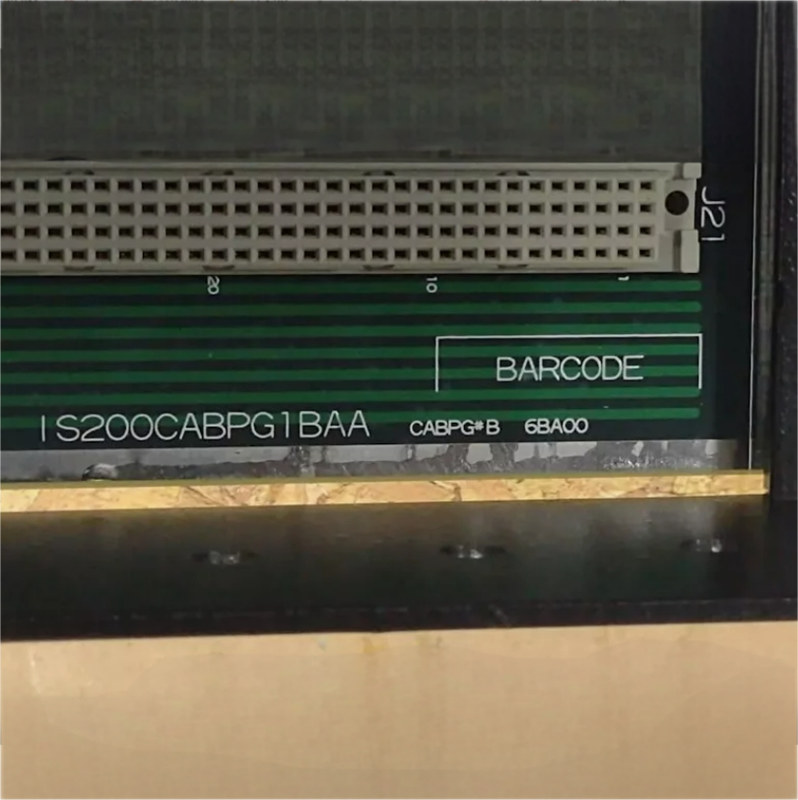

IS200CABPG1BAA

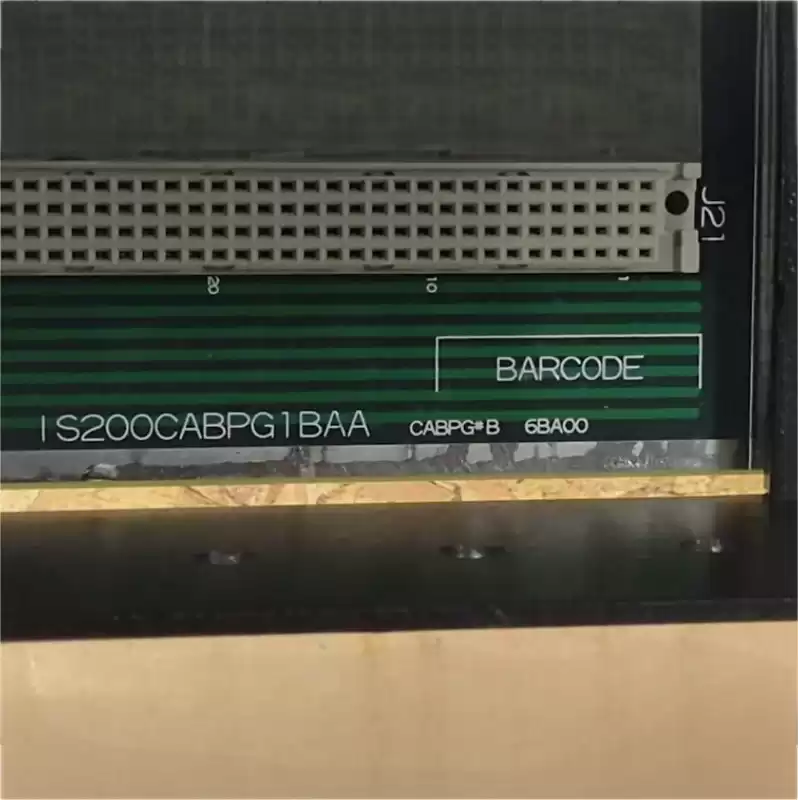

IS200CABPG1BAA



The IS200CABPG1BAA is a control assembly backplane developed by GE. It is a part of the drive control series. As a multi-layer printed wiring board, its primary function revolves around facilitating the seamless interconnections necessary for the various printed wiring boards inserted into it, while also serving as a conduit for crucial external signal interfaces.
It supports BAIA, GBIA, PBIA, ACL_, DSPX, RAPA, BIC_, BPI_, FOSA boards. And it enables user interaction and control over the drive system's functionalities.It's front Panel Meters provide real-time monitoring of key system parameters for enhanced operational visibility. It features Diagnostic/Configuration Tools, Front Panel Keypad, ISBus Ports and Power Supply Inputs.
The terminal boards associated with the board for user Input/Output (I/O) functionalities are strategically positioned near the entry point of application cables into the cabinet. This placement ensures convenient access and efficient connectivity within the system setup. Connection to these terminal boards is facilitated through two distinct multi-conductor cables, meticulously segregated to cater to differing voltage requirements. One cable is dedicated to low-voltage applications (less than 50 volts), while the other is designated for high-voltage applications (greater than 50 volts). This meticulous separation mitigates potential risks and ensures safe operation within specified voltage parameters.


  •  » Datasheet Link

GE IS200CABPG1BAA Control Assembly Backplane Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
