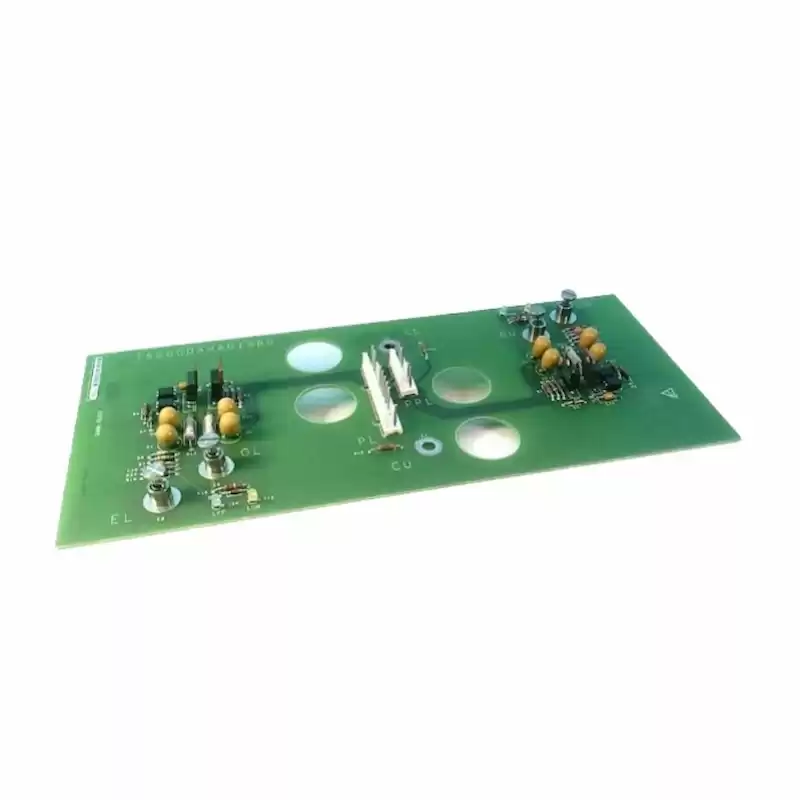

GE IS200DAMAG1BBB Gate Drive Amplifier/Interface Board

The IS200DAMAG1BBB is a board component from the Innovation series of boards for the Mark VI turbine control system.  The Mark VI was one of the last of the Speedtronic systems created and distributed by General Electric for turbine control.please contact us.





IS200DAMAG1BBB Gate Drive Amplifier/Interface Board



The IS200DAMAG1BBB is a Gate Drive Amplifier and Interface Board, it is manufactured and designed by General Electric as part of the Mark VI series used in GE Distributed Turbine Control Systems.



The Innovation Series IS200DAMAG1BBB Gate Drive Amplifier and Interface board (DAMA) provide an interface between the control rack and the power switching devices (IGBT's) of an innovation Series low voltage drive. They include TEDs that indicate the lGBT on/off status.



The IS200DAMAG1BBB functions as a Gate Driver Amplifier and Interface.  The board is used as an interface between power switching devices like IGBTs and the control rack.   This board is used with 620 frame drive power.





The IS200DAMAG1BBB  amplifies current in the final stage of the gate drive.   Typically three of these boards are used per drive.   The board includes four LEDs, including two yellow to indicate when the upper and lower IGBT is on, and two green to indicate when the upper and lower IGBT is off.   The board also includes Connectors for gate, common, and collector signals.



Technical Specifications

Manufacturer GE
Part Number IS200DAMAG1BBB
Ordering Information IS200DAMAG1B
Product Catalog Mark VI
Description Gate Drive Amplifier/Interface Board
Power Rating 620 frame
Origin USA
Dimensions 18 cm x 12 cm x 3 cm
Weight 0.5 kg



GE IS200DAMAG1BBB



100% brand new and original,All the goods will be tested before shipment.



For the in stock items, we will send the order out within 5-7 days after receive the payment.



Global supplier of quality automation and control components.





Topteng offers a 12-month warranty from the date of delivery.

In the event of non-conforming product ( if damaged or incorrect product is received ),

Any nonconformity must be reported within 7 days of receipt of goods.



Questions? Call +86 18050017653  or Email sales4@nseauto.com




Product Tags GE IS200DAMAG1BBB          IS200DAMAG1BBB          Gate Drive Amplifier/Interface Board          IS200DAMAG1B          Gate Drive Amplifier and Interface board          IS200DAMAG1BBB Datasheet
