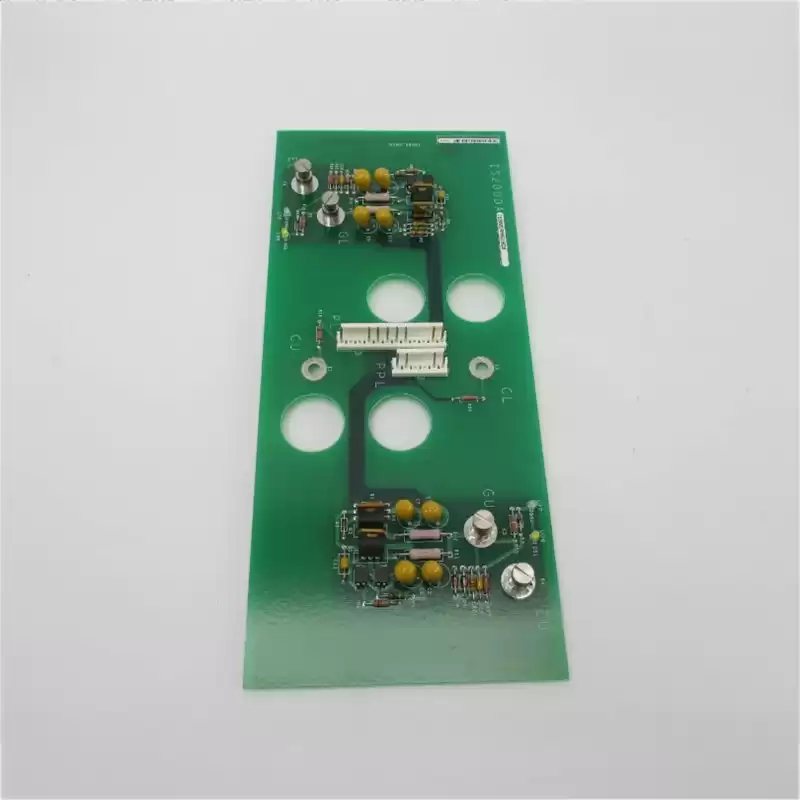

GE IS200DAMAG1BCB Printed Circuit Board

The IS200DAMAG1BCB is a Printed Circuit Board used in the GE Mark VI series of control systems.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200DAMAG1BCB
 Product ID  IS200DAMAG1BCB
 Catalog  Mark VI
 Description  IS200DAMAG1BCB Printed Circuit Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200DAMAG1BCB



The IS200DAMAG1BCB is a printed circuit board (PCB) designed to function as a Gate Drive Amplifier/Interface board within General Electric Innovation Series Low Voltage 620 frame drive systems.
The IS200DAMAG1BCB is an uncluttered board that works in conjunction with two legs of IGBT modules. It connects to both upper phase leg and lower phase leg IGBTs via direct connection. The board also connects to the Bridge personality Interface board (BPIA.) Connections are done through the multiple pins on two connectors, including a 12-pin vertical connector and a 6-pin vertical connector. Other board components include four LED indicators. Two of these indicators are green and two are yellow. A pair of these indicators (yellow/green) connect to the lower and upper IGBTs to indicate status. Yellow indicates on status while green indicates off status.


  •  » Datasheet Link

GE IS200DAMAG1BCB Printed Circuit Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
