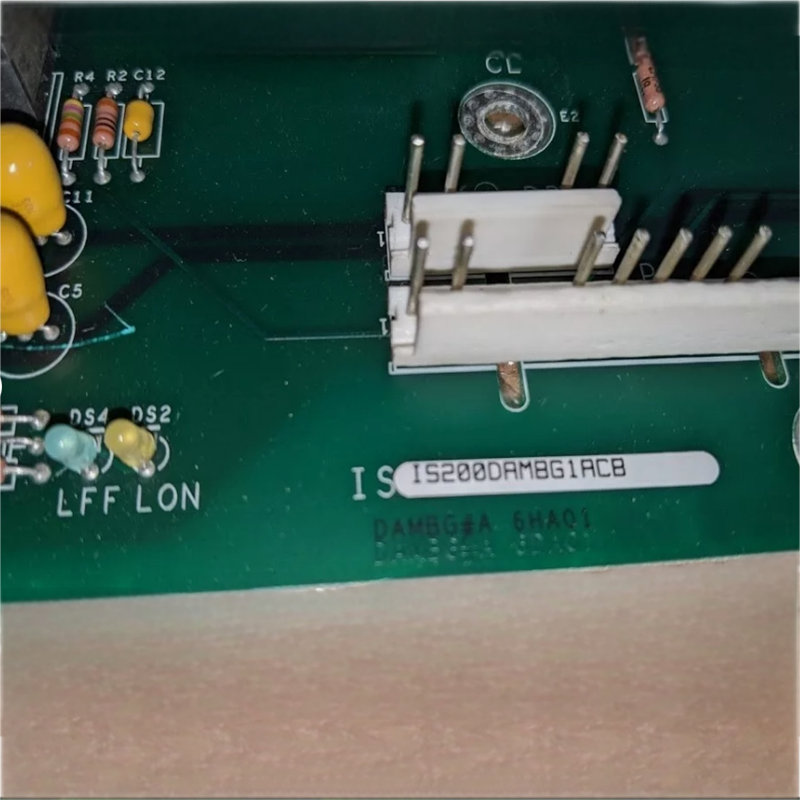

GE IS200DAMBG1ACB Gate Driver Card

The IS200DAMBG1ACB is a Gate Driver Card used in the GE Mark VI series of control systems.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200DAMBG1ACB
 Product ID  IS200DAMBG1ACB
 Catalog  EX2100
 Description  IS200DAMBG1ACB Gate Driver Card
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200DAMBG1ACB



The IS200DAMBG1ACB Gate Driver Card is manufactured by General Electric as a member of their EX21000 Excitation Control System Series, and features three total significant product revisions. This Gate Drive Amplifier and Interface Board provides an interface specifically between the control racks and IGBT power switching devices inherent to lower-voltage Innovation Series drives.
As specified in original-issue instructional manual information, the IS200DAMBG1ACB board features a Powerrex IGBT CM600HA-28H type, and utilizes one singular IGBT module for both its upper and lower phase legs.  Unlike some other similar Innovation Series printed circuit boards, the IS200DAMBG1ACB includes a number of LED indicators in its hardware configuration, to provide Diagnostic and IGBT status insights. All of the hardware components important to the use of this board should be protected by a thick, basic layer of chemically-applied normal-style printed circuit board coating.


  •  » Datasheet Link

GE IS200DAMBG1ACB Gate Driver Card Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
