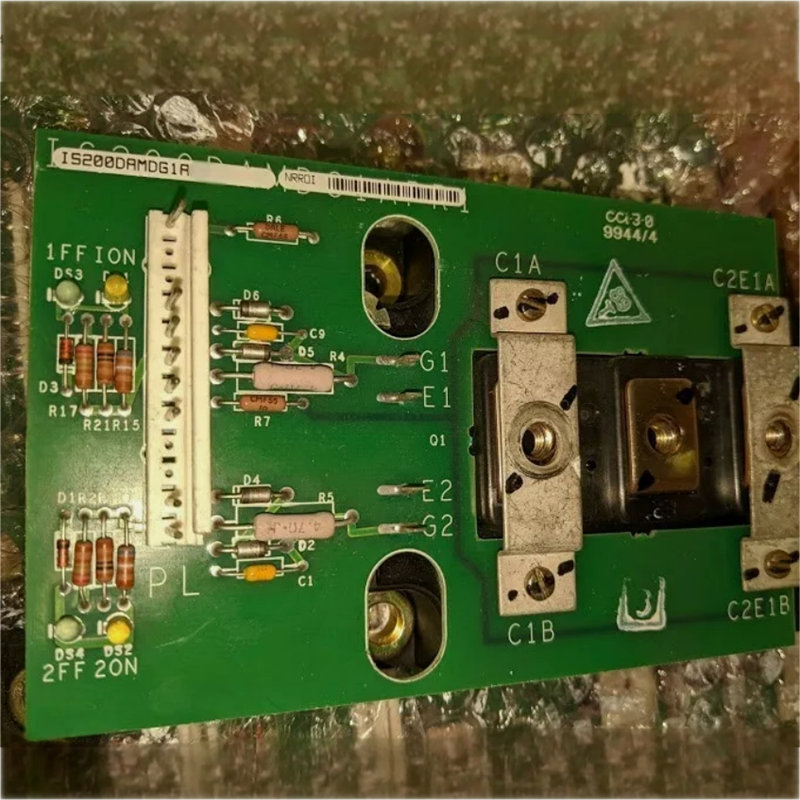

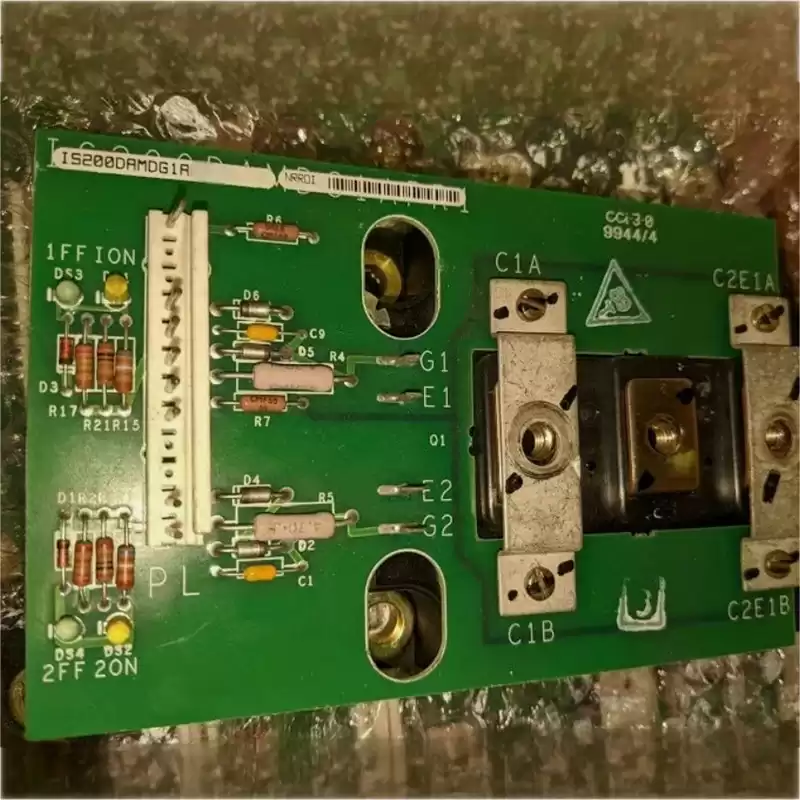

The IS200DAMDG1A is a Gate Driver Board manufactured by General Electric. It is in power electronics applications to control the switching of power semiconductor devices, such as insulated gate bipolar transistors (IGBTs) or MOSFETs. It provides the necessary voltage and current signals to turn the power devices on and off efficiently and reliably. The primary function of it is to isolate the control signals from the low-voltage control circuitry to the high-voltage power circuitry, which is crucial to protect sensitive control electronics from the high voltages and transients present in power electronics systems.
Features:
1. Electrical isolation between the low-voltage control circuitry and the high-voltage power circuitry.
2. Provide necessary voltage and current levels to drive power semiconductor devices effectively.
3. Protection solutions include overvoltage protection, Undervoltage lockout, short-circuit protection, overcurrent protection, and thermal shutdown.
4. Allow users to adjust the gate voltage and timing parameters to optimize the switching characteristics of the power devices.
5.Protect the internal circuitry from external disturbances which features can include electrostatic discharge protection, transient voltage suppression, and electromagnetic interference filtering.
6.Some advanced gate driver boards offer communication interfaces, such as Serial Peripheral Interfaceor Inter-Integrated Circuit, to enable communication with a control system or microcontroller.
