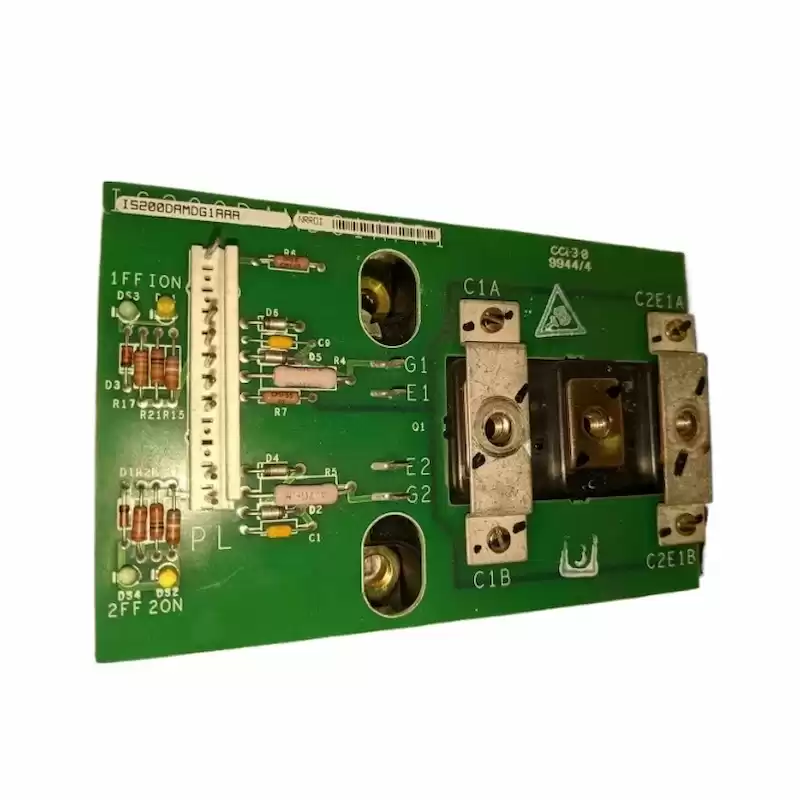

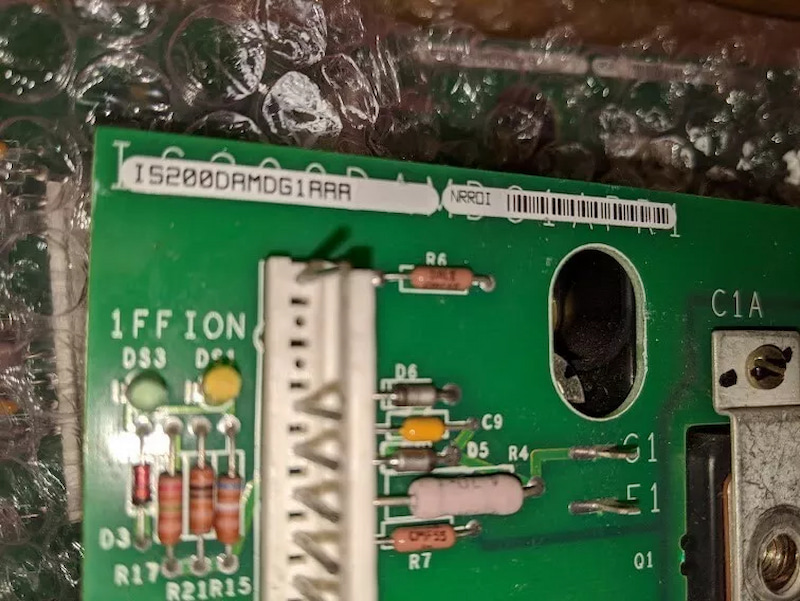

GE IS200DAMDG1A IS200DAMDG1AAA Gate Driver Board
The IS200DAMDG1AAA is a Gate Driver Board, it is manufactured and designed by General Electric as part of the Drive Control Innovation Series used in GE Speedtronic Drive Turbine Control Systems.
A gate driver board is an electronic device used in power electronics applications to control the switching of power semiconductor devices such as insulated gate bipolar transistors (IGBTs) or MOSFETs. It provides the necessary voltage and current signals to turn power devices on and off efficiently and reliably. The primary function of the gate driver board is to isolate the control signals from the low-voltage control circuits to the high-voltage power circuits. This isolation is critical to protect sensitive control electronics from the high voltages and transients found in power electronic systems. By using isolated gate driver circuit boards, control circuits can be safely isolated from high power circuits, thereby increasing safety and reducing the risk of damage to control components.
FEATURES
· Isolation
· Voltage and Current Capability
· Protection Mechanisms
· Adjustable Gate Voltage and Timing
· Integrated Circuit Protection
· Communication Interfaces
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200DAMDG1AAA |
| Ordering Information |
IS200DAMDG1A |
| Product Catalog |
Mark VI |
| Description |
Gate Driver Board |
| Voltage |
±5 V |
| Addressing Range |
16 and 32 bits |
| Dimensions |
18 cm x 12 cm x 3 cm |
| Weight |
0.5 kg |
100% brand new and original,All the goods will be tested before shipment.
