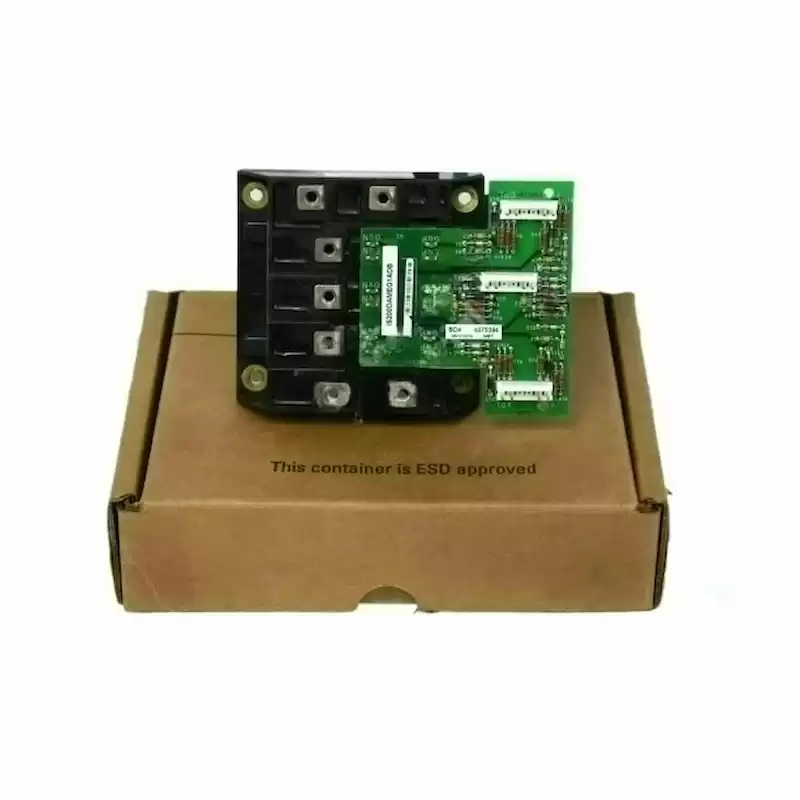

GE IS200DAMEG1A IS200DAMEG1ADB Gate Drive Amplifier/Interface Board

The IS200DAMEG1ADB is a Gate Drive Amplifier/Interface Board, it is manufactured and designed by General Electric as part of the Drive Control Innovation Series used in GE Speedtronic Drive Turbine Control Systems. please contact us.

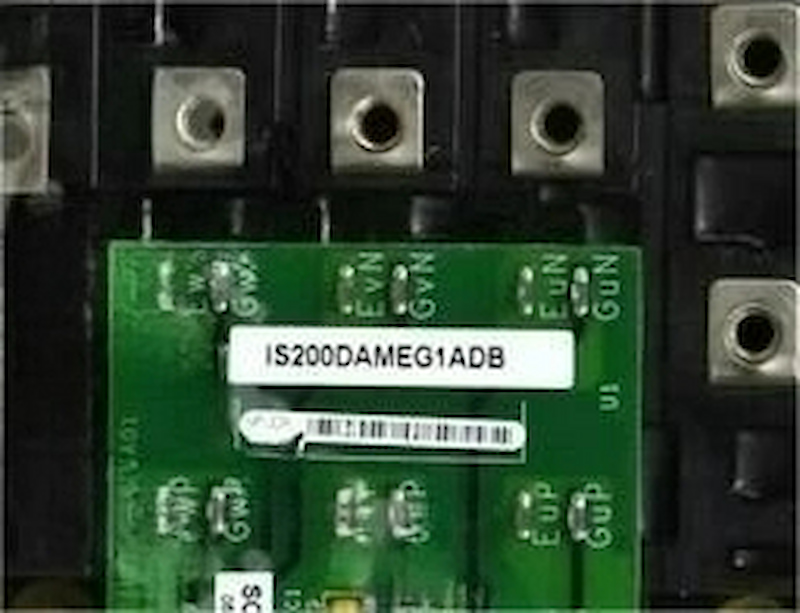

IS200DAMEG1ADB Gate Drive Amplifier/Interface Board



It is used to connect power switching devices in the Innovative Series Control Rack. There are no test points, configurable items, or fuses on this board. In low voltage drives, it is the interface between the power switching device or IGBT and the control rack. They provide an interface with no amplification and no power input. the DAM board is used to connect the collector terminals, emitters, and IGBT gates of the control rack, as well as the bridge personality interface board. This model is used to control the interface between the low-voltage driver IGBT power switching devices and the Innovative Series control racks.The DAME board is used for interfacing without amplification and has no power input. The board is one of six variants and is rated to drive 65 cells. The board will be used with phase pin drivers and only one board will work with all three phases. Several different IGBTs will also be used for each phase foot, but only one IGBT module is available for all three phases on this board.



Features



· DAME is used for interfacing without any type of amplification and does not have any power inputs. This board is one of six variations and has a drive power rating of 65 frames.



· The board is used with a phase leg drive, and there will only be one board that can be used with all three phases. There are also various IGBTs that will be used per phase leg; however, this particular board only has one IGBT module that is used for all three phases. For input and output connection with the BPIA board, there are three connectors: CPL for phase C marked as U, BPL for phase B marked as V, and APL for phase A marked as W.



· The board has six connectors. Each pin has a different name and description; for example, pin five is labeled as common and is named _PCOM; this common pin is the emitter of phases in the positive/upper IGBT model.



· If this board needs to be replaced, either the IGBT or the DAME board must be replaced as they are soldered together. Please turn off the power to the control before removing or inserting the DAMEG1A to avoid potential shock.



· For input and output connection with the BPIA board, there are three connectors: CPL for phase C marked as U, BPL for phase B marked as V, and APL for phase A marked as W.



Technical Specifications

Manufacturer GE
Part Number IS200DAMEG1ADB
Ordering Information IS200DAMEG1A
Product Catalog Mark VI
Description Gate Drive Amplifier/Interface Board
Voltage +15/-7.5
Frame Rate 65
Dimensions 18 cm x 12 cm x 3 cm

Weight

0.5 kg



GE IS200DAMEG1ADB
