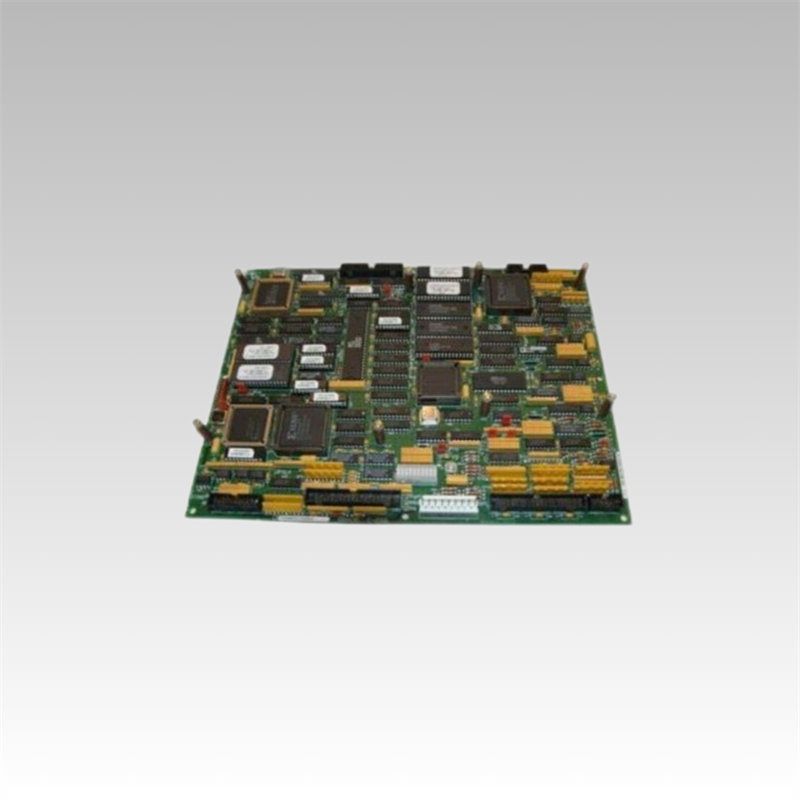

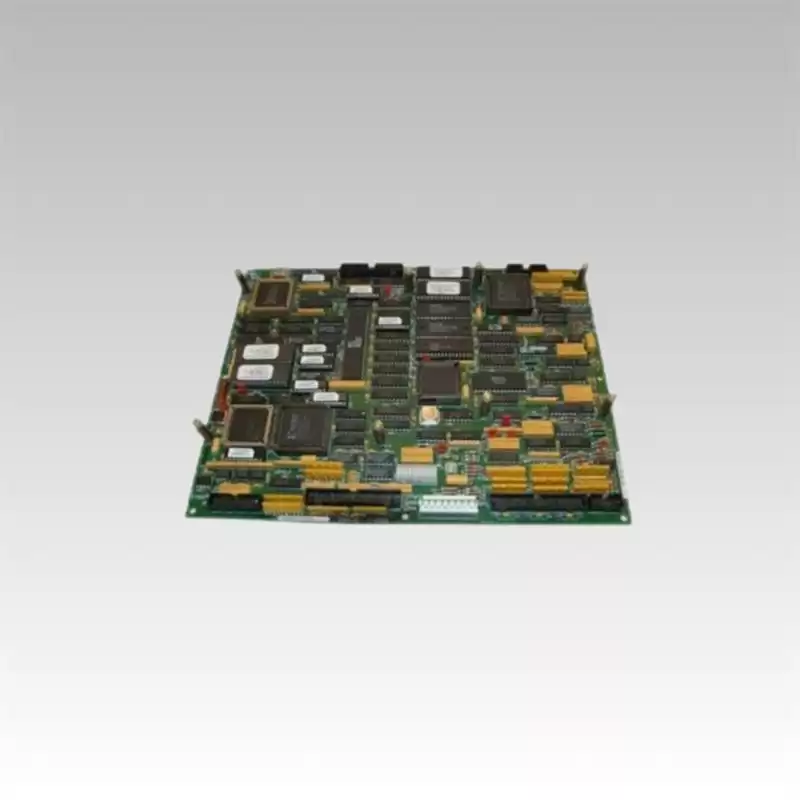

GE IS200DAMEG1ABA Gate Drive Amplifier Interface Board

The IS200DAMEG1ABA is a Gate Drive Amplifier Interface Board used in the GE Mark VI series of control systems.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200DAMEG1ABA
 Product ID  IS200DAMEG1ABA
 Catalog  Mark VI
 Description  IS200DAMEG1ABA Gate Drive Amplifier Interface Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200DAMEG1ABA



The IS200DAMEG1ABA is an Innovation Series Gate Drive Amp/Interface Card.  The board is used to interface between the control rack and a power switching device, like an IGBT, located in an Innovation Series low voltage drive.   There are six versions of these drives, of which the IS200DAMEG1ABA is the lowest powered. The IS200DAMEG1ABA has no power input and provides no amplification for the interface. The IS200DAMEG1ABA connects to the control rack’s Bridge Personality Interface board via three connectors.  There is one connector per phase. These include the APL connector for A phase, the BPL connector for B phase, and the CPL connector for C phase.  The board has no fuses, configurable hardware, or TP test points.



  •  » Datasheet Link

GE IS200DAMEG1ABA Gate Drive Amplifier Interface Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
