IS200DRLYH1B Simplex Relay Output Board

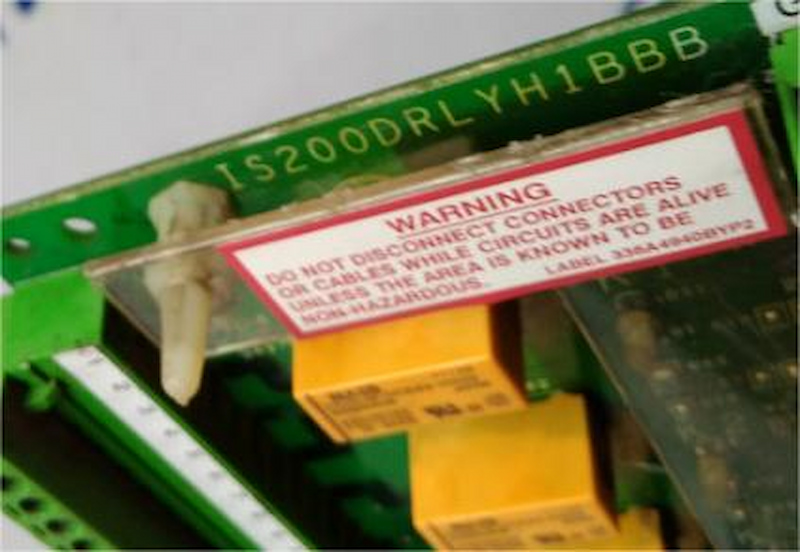

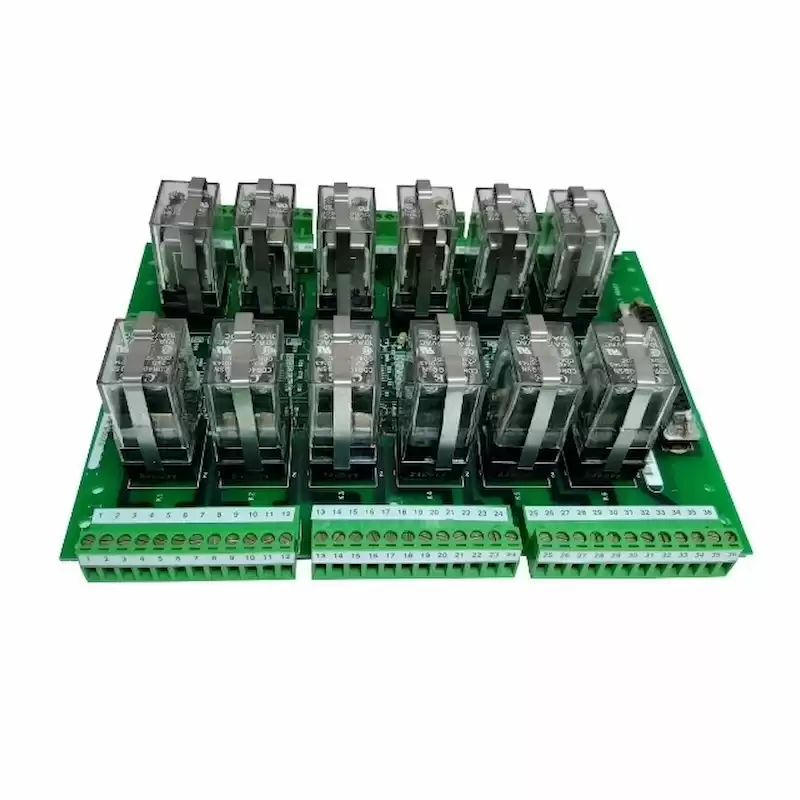

The IS200DRLYH1B Simplex Relay Output (DRLY) terminal board is a compact relay output terminal board designed for wall mounting (not DIN-rail mounting). The board has 12 form-C dry contact output relays and connects to the VCCC, VCRC, or VTUR processor board with a single cable. The 37-pin cable connector is identical to those used on the larger TRLY terminal board. Two DRLY boards can be connected to VCCC, VCRC, or VTUR for a total of 24 contact outputs. Only a simplex version of this board is available.
There are two versions of the DRLY terminal board:
• H1A has higher powered relay contacts than H1B.
• H1B is suitable for use in UL listing for Class I, Division 2 Hazardous (classified) locations.
Installation
Mount the DRLY board by fastening screws to wall through the four mounting holes in the corners of metal support plate. Connect the wires for the 12 relay outputs directly to the odd-numbered screws on the terminal blocks. The high-density EuroBlock type terminal blocks plug into the numbered receptacles on the board. The two screws on TB2 are provided for the SCOM (chassis ground) connection, which should be as short a distance as possible.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200DRLYH1B |
| Ordering Information |
IS200DRLYH1B |
| Product Catalog |
Mark VI |
| Description |
Simplex Relay Output Board |
| Voltage |
28 Vdc |
| Current |
2 A |
|
Temperature
|
0 to 75ºC (32 to 167 ºF)
|
| Dimensions |
22 cm x 21 cm x 6 cm |
| Weight |
1.8 kg |
