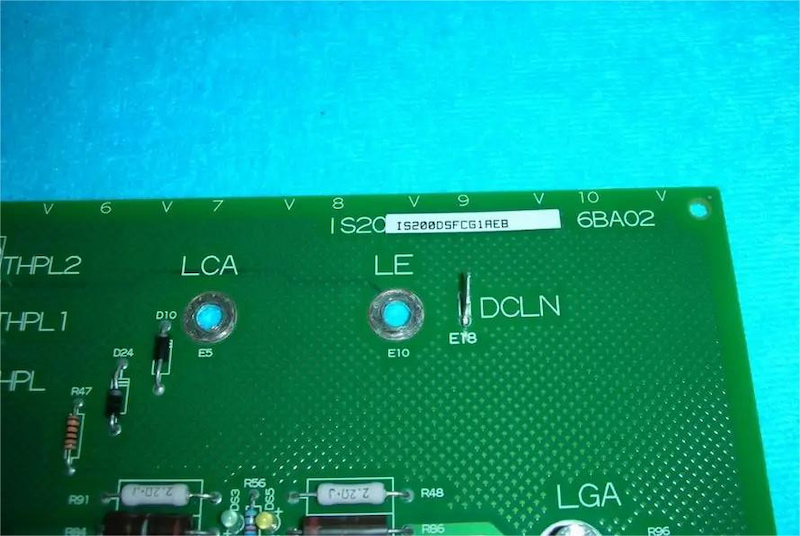

GE IS200DSFCG1AEB

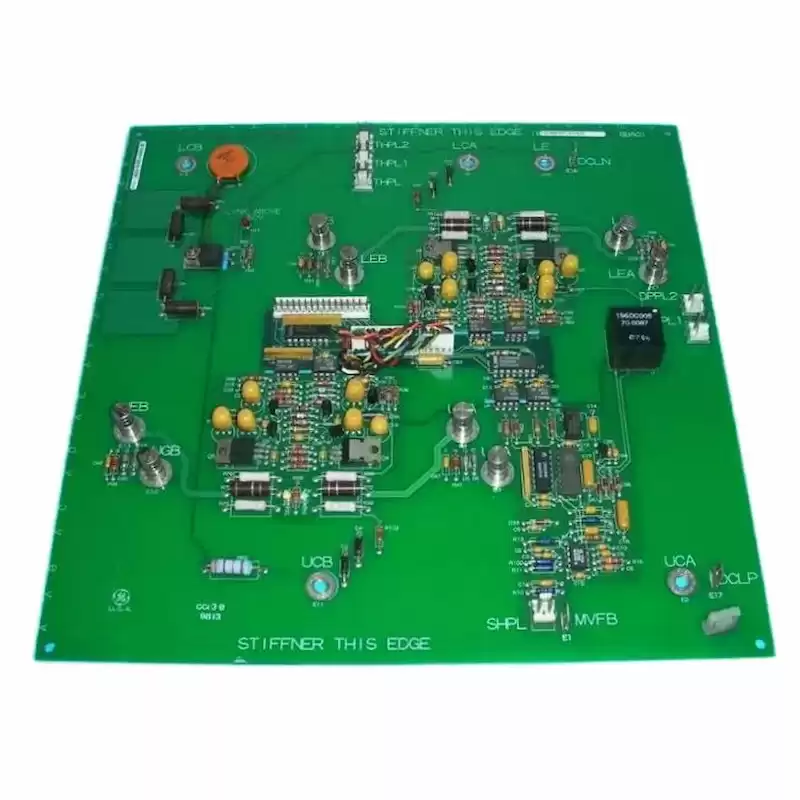

The IS200DSFC 1000/1800 Amp IGBT Gate driver/Shunt Feedback Board (DSFC) contains a current sensing circuit, a fault detection ciruit, and two IGBT gate drive circuits. The driver and feedback circuits are galvanically and optically isalated. The board is designed for use with the 1000 Amp and 1800 Amp Innovation Series Pulse Width Modulated (PWM) source bridges and ac drives.
The DSFC board interfaces to the drive control via the IS200BPIB Drive Bridge Personality Interface Board (BPIB), A 1000 A source bridge or drive will require Six DSFC, boards, one per phase. An 1800 A source bridge or drive will require six DSDC boards, two "daisy chained" DSFC boards per phase. The DSFC (G1) is designed for use in drive source applications where the ac input is 600 YLL rms.
The DSFC board is mounted directly to the upper and lower IGBT modules in each phase leg to the driver output and shunt input connections as short as possible. The board is held in place by the gate, emitter and collector connections to the IGBT. Proper arientation of the board for positioning of the gate, emitter and collector mounting holes is essential.
Features
■ Shunt Feedback: Built-in shunt resistor that provides feedback on the current flowing through the system. This feedback is used to regulate the current and prevent overloading or other issues that can occur when the current is not properly controlled.
■ Amplification: The board has a built-in amplifier that amplifies the input signal to a level that can be easily processed by the control system.
■ Isolation: Provides electrical isolation between the input signal and the output signal, which helps protect the control system from any electrical noise or surges in the input signal.
■ Signal Output: Provides a high-level output signal that can be used to control a motor or valve, or interface with a PLC or DCS system.
■ Protection: The board provides protection features such as over voltage protection and short-circuit protection to safeguard the connected equipment.
■ Modularity: The board is modular, meaning that it can be easily replaced if it fails or needs to be upgraded.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200DSFCG1AEB |
| Ordering Information |
IS200DSFCG1A |
| Product Catalog |
Mark VI |
| Description |
1000/1800 Amp IGBT Gate Driver/Shunt Feedback Board |
| Voltage |
24 Vdc |
| Origin |
USA |
| Dimensions |
18 cm x 18 cm x 3 cm |
| Weight |
0.5 kg |
