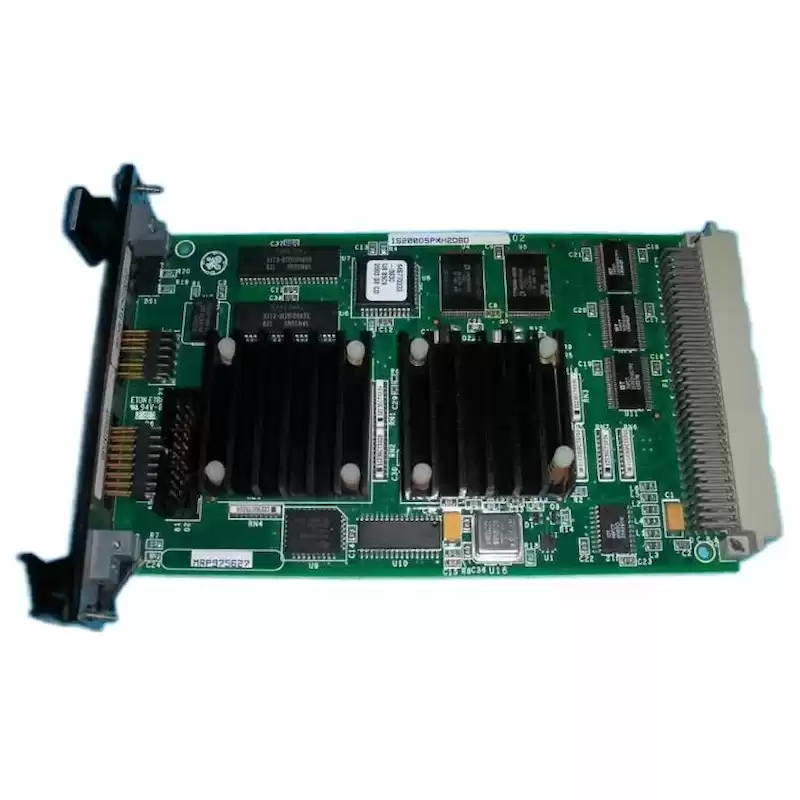

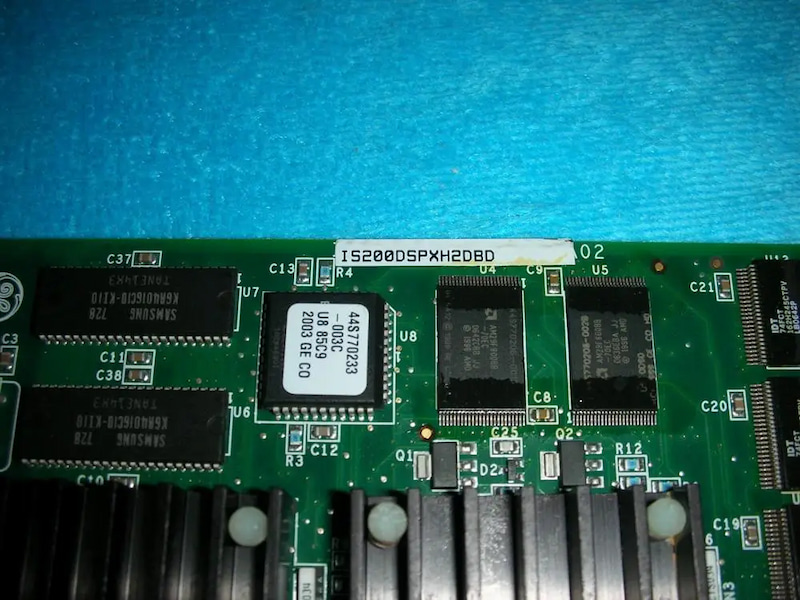

IS200DSPXH2DBD Digital Signal Processor Control Board
The IS200DSPXH2DBD Digital Signal Processor Control Board (DSPX) is the primary controller for the bridge and motor regulator and gating functions for Innovation Series drives. It also controls generator field control functions for the EX2100 Excitation Control. The DSPX board includes a high-performance digital signal processor (DSP), standard memory components, and an application-specific integrated circuit (ASIC) that performs custom logic functions.
It serves as the central control unit for managing and executing signal processing tasks using a Digital Signal Processor (DSP) chip. It is comprised of a high-performance digital signal processor (DSP), standard memory components, and an application-specific integrated circuit (ASIC) that performs custom logic functions. A Compact PCI (CPCI) enclosure houses the controller. A 6U high rack, one or two 3U high power supplies, a 6U high single board, and a cooling fan are typical components of a CPCI enclosure.
Features
DSP Chip: The heart of the board is the DSP chip, which is a specialized microprocessor designed to efficiently handle digital signal processing tasks. DSPs excel at tasks like filtering, modulation, demodulation, and other operations on digital signals.
Input and Output Interfaces: DSP control boards typically feature various input and output interfaces to connect with external devices. These might include analog-to-digital converters (ADCs) for converting analog signals into digital format and digital-to-analog converters (DACs) for the reverse process.
Memory: DSP control boards have onboard memory, which is crucial for storing data and program code. This memory may include RAM (Random Access Memory) for data storage and ROM (Read-Only Memory) for program code storage.
Processing Power: DSP chips are designed to handle complex mathematical calculations quickly, making them suitable for real-time signal processing tasks. The control board provides the necessary power and clocking to support these calculations.
Programming Interface: To program the DSP chip, there is usually a programming interface, which can include connectors for debugging tools and software for writing, compiling, and uploading code to the DSP.
Control Logic: The control board also includes control logic that manages the overall operation of the DSP chip and coordinates data flow between input and output devices.
I/O Ports: Depending on the specific application, DSP control boards may have various input and output ports, such as serial communication ports (e.g., UART, SPI, I2C), GPIO (General-Purpose Input/Output) pins, and other interfaces to connect with sensors, displays, or other devices.
Power Supply: DSP control boards require a stable power supply to operate effectively. They often include power management circuitry to ensure the DSP chip and other components receive the correct voltage and current.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200DSPXH2DBD |
| Ordering Information |
IS200DSPXH2D |
| Product Catalog |
EX2100 Excitation |
| Description |
Digital Signal Processor Control Board |
| Voltage |
±5 V |
| Current |
0-20 mA |
| Dimensions |
18 cm x 12 cm x 6 cm |
|
Weight
|
0.8 kg |
