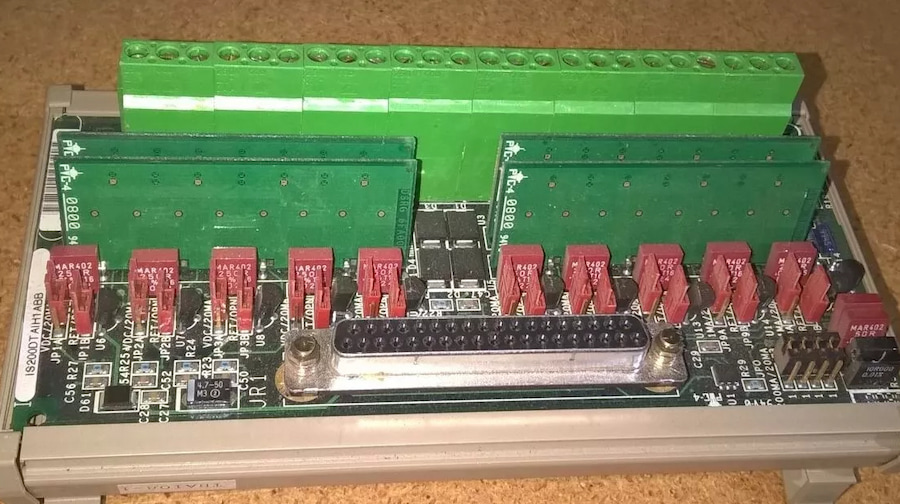

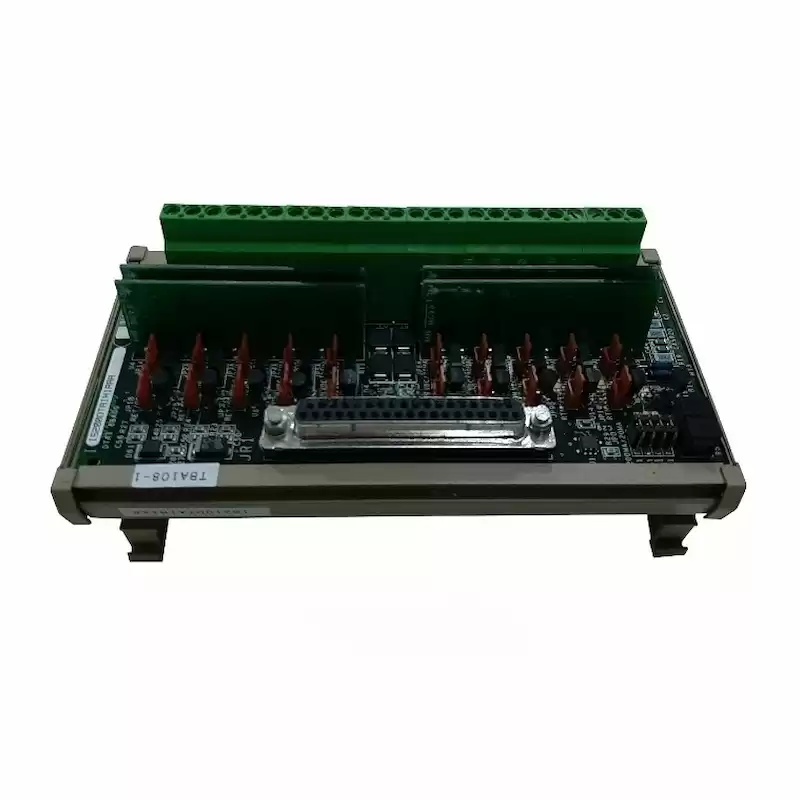

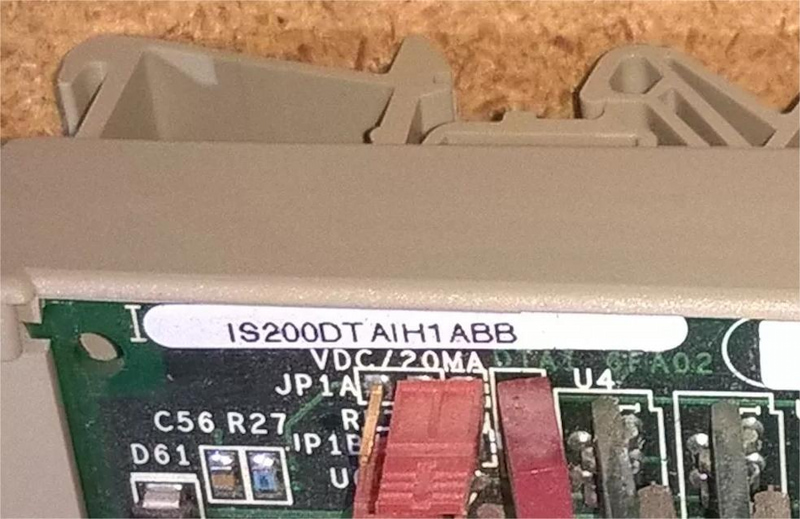

GE IS210DTAIH1A Terminal Board
The IS210DTAIH1A Simplex Analog Input/Output (DTAI) terminal board is a compact analog input terminal board designed for DIN-rail mounting. The board has 10 analog inputs and 2 analog outputs and connects to the VAIC processor board with a single cable. This cable is identical to those used on the larger TBAI terminal board. The terminal boards can be stacked vertically on the DIN-rail to conserve cabinet space.
The 10 analog inputs accommodate two-wire, three-wire, four-wire, or externally powered transmitters. The two analog outputs are 0-20 mA, but one can be jumper configured to a 0-200 mA current. Two DTAI boards can be connected to VAIC for a total of 20 analog inputs and 4 analog outputs. Only a simplex version of the board is available.
The functions and on-board noise suppression are the same as those on the TBAI. High-density euro-block type terminal blocks are permanently mounted to the board, with two screw connections for the ground connection (SCOM). An on-board ID chip identifies the board to the VAIC for system diagnostic purposes.
Installation
Mount the plastic holder on the DIN-rail and slide the DTAI board into place. Connect the RTD wires directly to the terminal block. The Euro-block type terminal block has 48 terminals and is permanently mounted on the board. Typically, #18 AWG wires (shielded twisted pair) are used. Two screws, 43 and 44, are provided for the SCOM (ground) connection, which should be as short a distance as possible.
DTAI accommodates the following analog I/O types:
• Analog input, two-wire transmitter
• Analog input, three-wire transmitter
• Analog input, four-wire transmitter
• Analog input, externally powered transmitter
• Analog input, voltage ±5 V, ±10 V dc
• Analog output, 0-20 mA current
• Analog output, 0-200 mA current

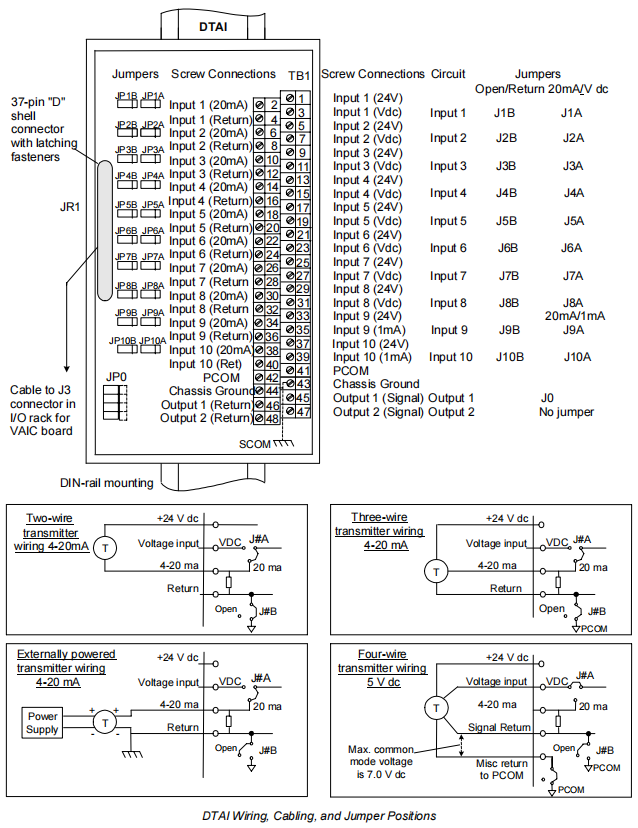

• Wiring, jumper positions, and cable connections appear on the wiring diagram
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS210DTAIH1A |
| Ordering Information |
IS200DTAIH1A |
| Product Catalog |
Mark VI |
| Description |
Simplex Analog Input/Output Terminal Board |
| Voltage |
24 Vdc |
| Current |
0-20 mA |
| Dimensions |
16 cm x 10 cm x 8 cm |
| Weight |
0.5 kg |
