GE IS200DTTCH1A IS210DTTCH1A Simplex Thermocouple Input Terminal Board

IS210DTTCH1A is a Simplex Thermocouple Input Terminal Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Speedtronic .$1,000.00. Our team is available 24/7 to support you with your urgent needs for critical spare parts, please contact us.





IS210DTTCH1A Simplex Thermocouple Input Terminal Board

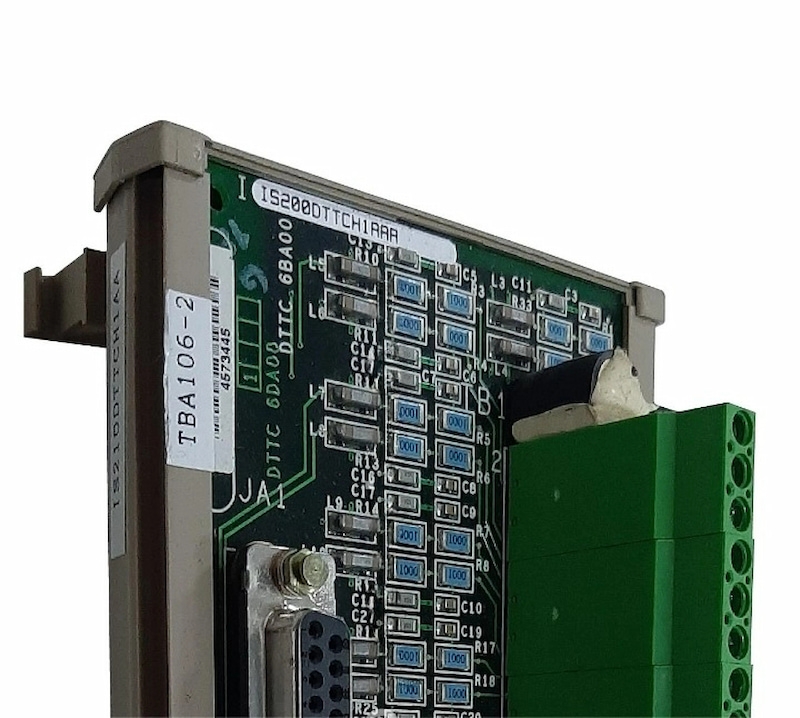

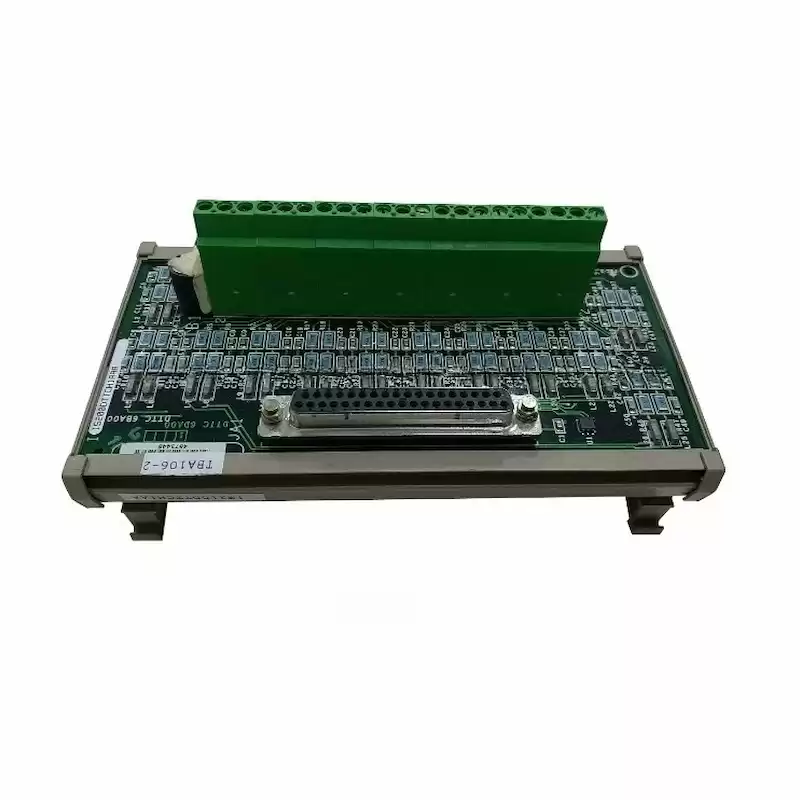

The IS210DTTCH1A Simplex Thermocouple Input (DTTC) terminal board is a compact terminal board designed for DIN-rail mounting. The board has 12 thermocouple inputs and connects to the VTCC thermocouple processor board with a single 37-pin cable. This cable is identical to the one used on the larger TBTC terminal board. The on-board signal conditioning and CJ reference are identical to those on the TBTC board.



Two DTTC boards can be connected to the VTCC for a total of 24 inputs. Highdensity Euro-Block type terminal blocks are permanently mounted to the board with two screw connections for the ground connection (SCOM). Every third screw connection is for the shield. Only the simplex version of the board is available. The terminal boards can be stacked vertically on the DIN-rail to conserve cabinet space.



Installation

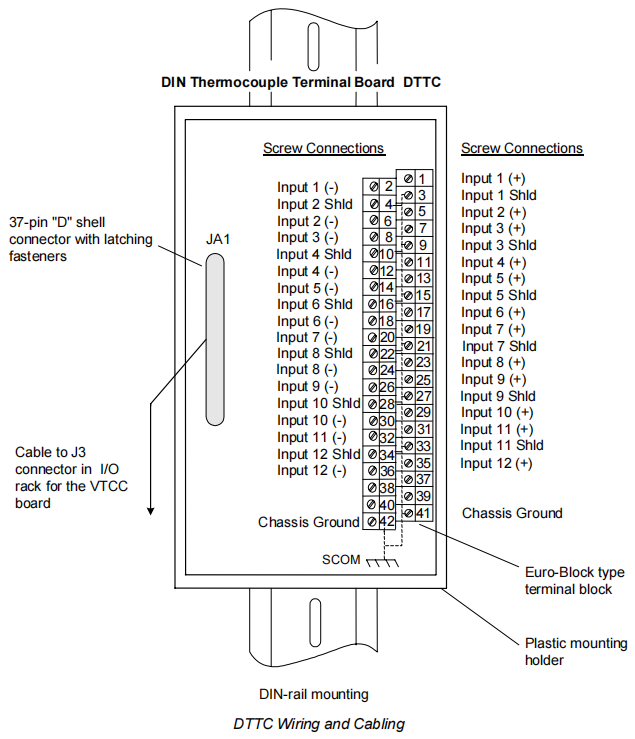

Mount the plastic holder on the DIN-rail and slide the DTTC board into place. Connect the thermocouples wires directly to the terminal block. The Euro-Block type terminal block has 42 terminals and is permanently mounted on the terminal board. Typically #18 AWG wires are used. Two screws, 41 and 42, are provided for the SCOM (ground) connection, which should be as short a distance as possible.





Technical Specifications

Manufacturer GE
Part Number IS210DTTCH1A
Ordering Information IS200DTTCH1A
Product Catalog Mark VI
Description Simplex Thermocouple Input Terminal Board
Voltage 24 Vdc
Number of channels
24 channels
Dimensions 16 cm x 10 cm x 8 cm
Weight 0.5 kg
