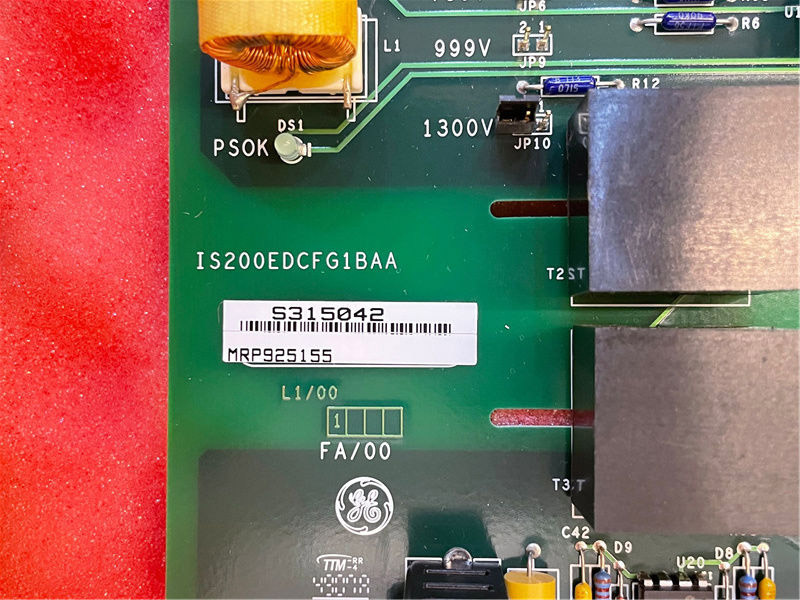

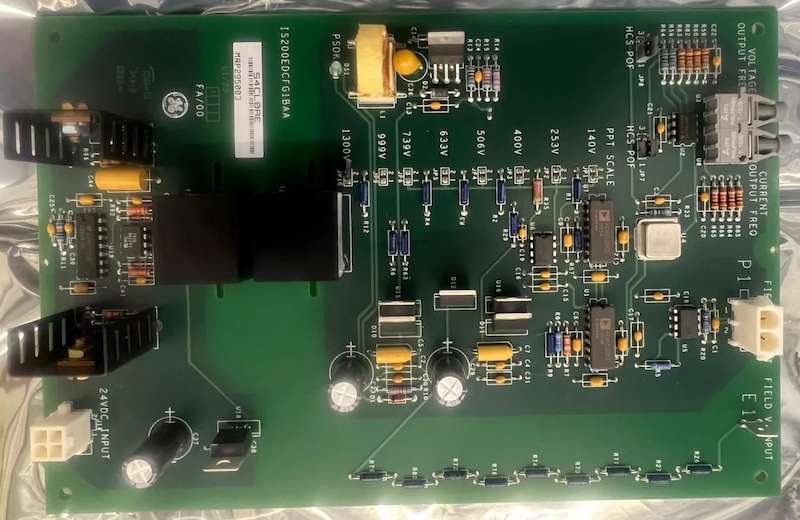

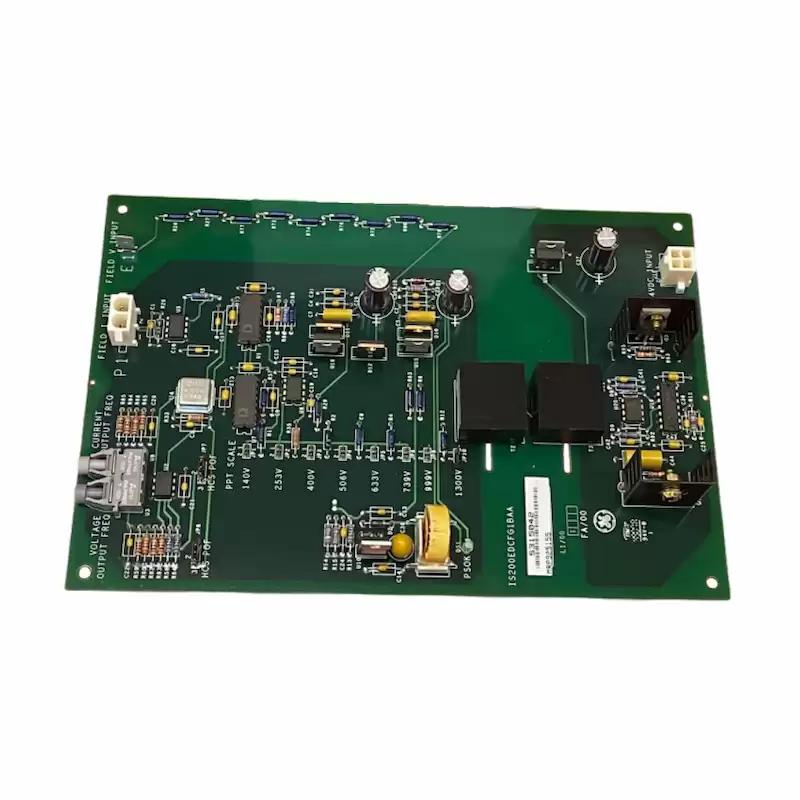

GE IS200EDCFG1BAA Exciter DC Feedback Board
The IS200EDCFG1BAA Exciter Dc Feedback Board (EDCF) is used in the EX2100 Excitation Control. It measures field current and field voltage at the SCR bridge, and interfaces to the EISB board in the control panel over a high-speed fiber-optic link. The fiber-optics provides voltage isolation between the two boards, and high noise immunity. Two fibers are used, one for each signal. There are two types of fibers which can be used for different distances, as follows:
• Plastic type fiber for distances up to 10 m
• Hard clad silica type for distances up to 90 m
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EDCFG1BAA |
| Ordering Information |
IS200EDCFG1B |
| Product Catalog |
EX2100 |
| Description |
Exciter DC Feedback Board |
| Voltage |
24 Vdc |
| Functional Revision |
B |
| Dimensions |
18 cm × 12 cm × 12 cm |
| Weight |
1 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
