GE IS200EGDMH1ADE Exciter Ground Detection Module

The IS200EGDMH1ADE is a GE Exciter Ground Detection Module.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200EGDMH1ADE
 Product ID  IS200EGDMH1ADE
 Catalog  EX2100
 Description  IS200EGDMH1ADE Exciter Ground Detection Module
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200EGDMH1ADE

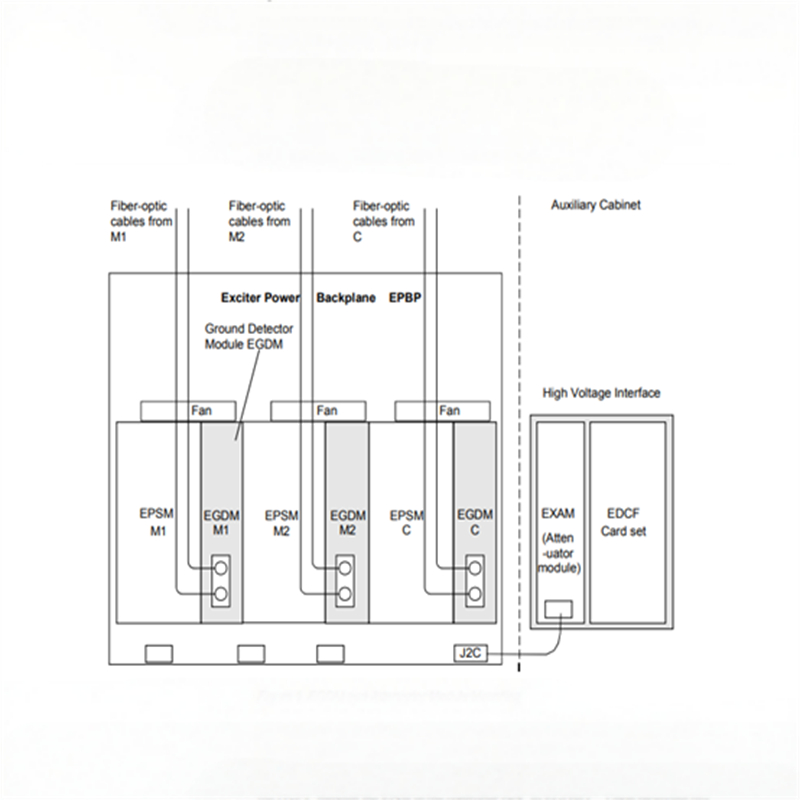

The IS200EGDMH1ADE Ground Detection Module is used in the EX2100 Excitation Control. It is a double slot, double height (6U) form factor board that mounts in the Exciter Power Backplane rack (EPBP). The field ground detector detects field leak age resistance between any point in the generator field circuit to ground, either on the ac or dc side. A simplex system will have one EGDM, and a redundant system will have three. EXAM, the attenuator module, senses the voltage across the ground sense resistor and sends the signal to the EGDM(s) over a nine-conductor cable. The EXAM module is mounted in the High Voltage Module located in the Auxiliary Panel.


  •  » Datasheet Link

GE IS200EGDMH1ADE Exciter Ground Detection Module Datasheet
