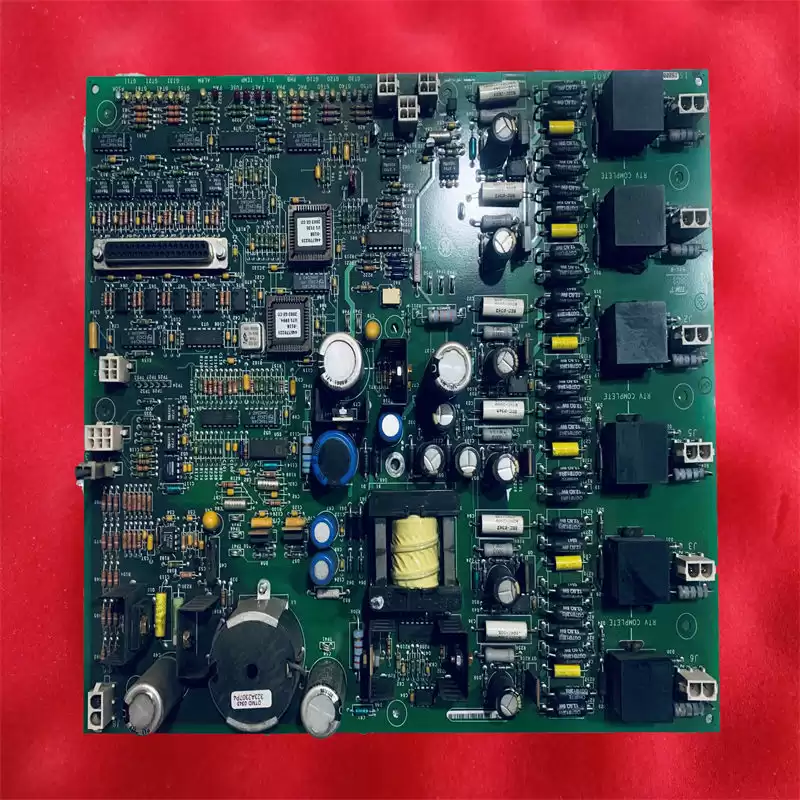

GE IS200EHPAG1ABA Exciter Gate Pulse Amplifier Board

The IS200EHPAG1ABA is a GE Exciter Gate Pulse Amplifier Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200EHPAG1ABA
 Product ID  IS200EHPAG1ABA
 Catalog  EX2100
 Description  IS200EHPAG1ABA Exciter Gate Pulse Amplifier Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg

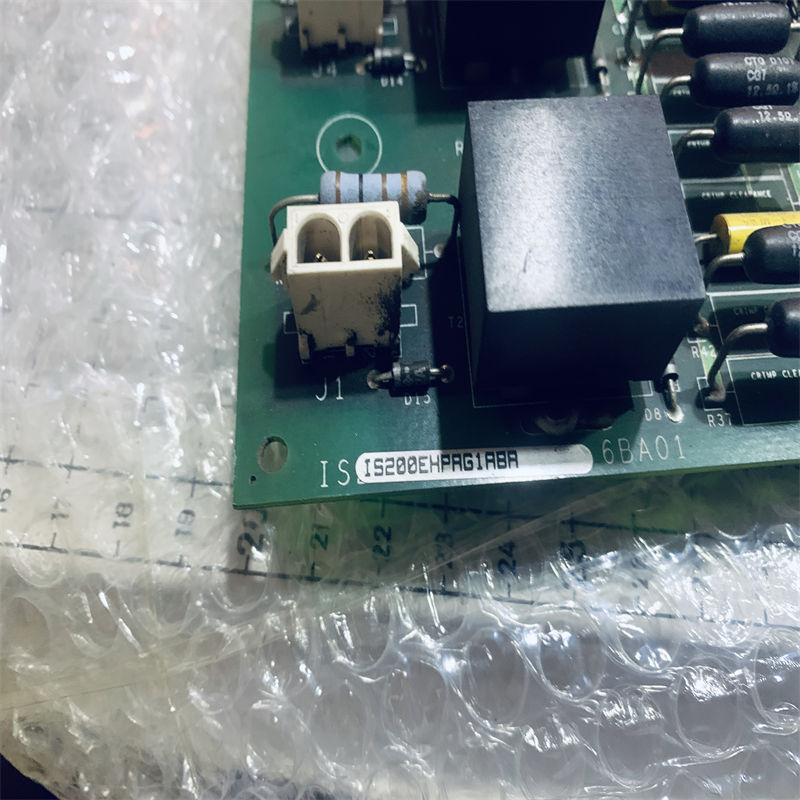

IS200EHPAG1ABA



IS200EHPAG1ABA



The IS200HFPAG1ABA is an Exciter Gate Pulse Amplifier Board designed by GE for the Mark VI gas and steam turbine control system.  The IS200HFPAG1ABA functions as an AC/Fan Power Supply for High-Frequency applications.  The board receives input voltages (AC or DC) and converts the input into the needed output.  This may be a 48 VAC, a 52 VAC, a 48 VDC, or a 17.7 VAC output. The output for the board (total) should not exceed 90VA.  The IS200HFPAG1ABA is a multi-purpose board that may be mounted in various drive cabinets. It is usually mounted near a board rack or a fan enclosure.
The IS200HFPAG1A BA is built with four stab-on input connectors and eight output plug connectors.  The board has a metal oxide varistor and four fuses to protect circuitry. There are two LEDs (light emitting diodes) located on the board to indicate the status of voltage outputs.   The board has two heat sinks, two transformers, three high-voltage capacitors, and several transistors.


  •  » Datasheet Link

GE IS200EHPAG1ABA Exciter Gate Pulse Amplifier Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
