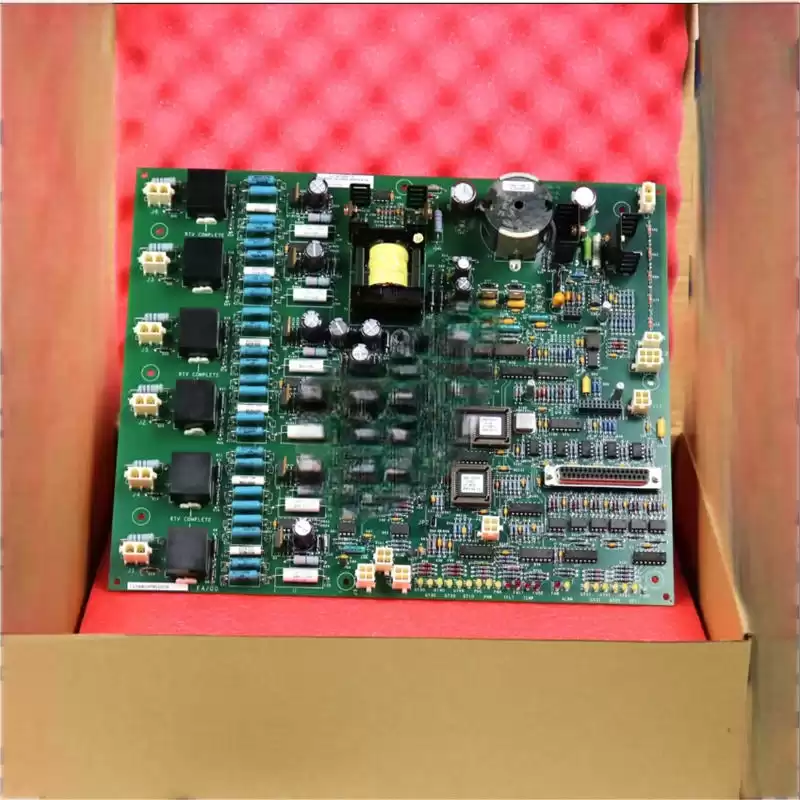

GE IS200EHPAG1ABB Exciter Gate Pulse Amplifier Board

The IS200EHPAG1ABB is a GE Exciter Gate Pulse Amplifier Board.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200EHPAG1ABB
 Product ID  IS200EHPAG1ABB
 Catalog  EX2100
 Description  IS200EHPAG1ABB Exciter Gate Pulse Amplifier Board
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg



IS200EHPAG1ABB



The IS200EHPAG1ABB is an Exciter Gate Pulse Amplifier Board developed by GE. It is a part of the EX2100 control system. The EHPA plays a pivotal role in ensuring the reliability, efficiency, and safety of the excitation process by facilitating precise gate control, providing critical feedback on bridge operation, and enabling real-time monitoring of environmental factors.
The EHPA functional model encompasses various input and output (I/O) components to facilitate its operations. IS200EHPAG1ABB is Powered by a nominal 125 V dc power source supplied from the EPDM. LEDs are incorporated into the design to provide visual indication of various system parameters.  Receives gate commands from the ESEL and effectively controls the gate firing of up to six SCRs situated on the Power Bridge. This functionality ensures precise control over the excitation process, optimizing performance and stability. Current conduction feedback is facilitated through the EHPA, allowing for monitoring of currents into the bridge. The EHPA also serves as an interface for monitoring bridge airflow and temperature.


  •  » Datasheet Link

GE IS200EHPAG1ABB Exciter Gate Pulse Amplifier Board Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
