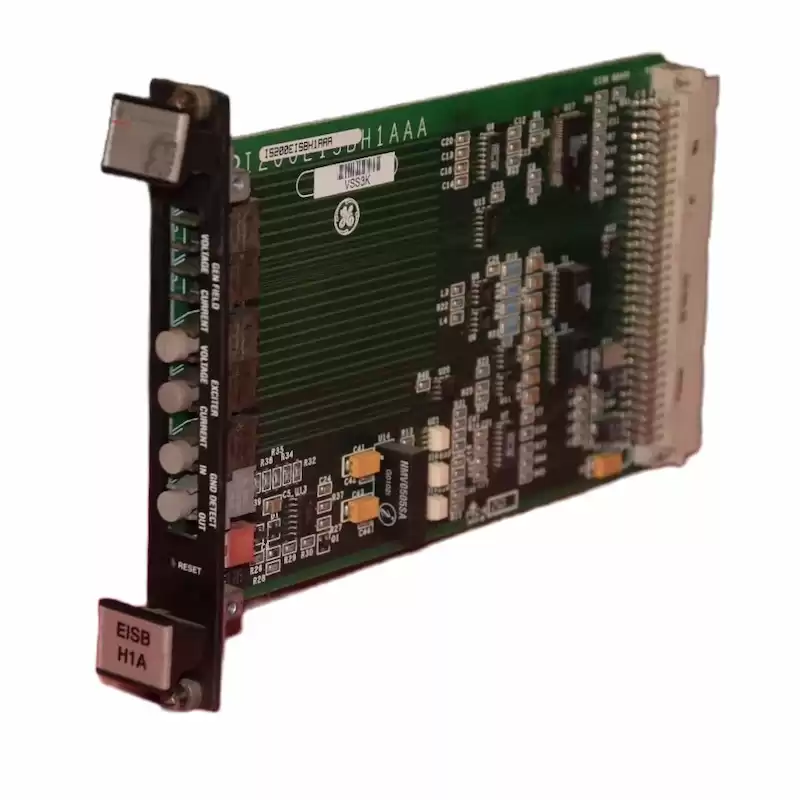

IS200EISBH1AAA Exciter ISBus Board
The IS200EISBH1AAA Exciter ISBus Board (EISB) is a special communication board for the M1, M2, and C controllers. It receives and transmits fiber-optic feedback signals and transmits them over the control backplane to the DSPX controller and also communicates between the DSPX and the tool and keypad ports using RS-232C through the backbone connector.
In addition, for redundant exciters, EISB contains ISBus interface electronics. ISBus is a GE proprietary communications interface, used here to transfer data among the M1, M2, and C controllers of the exciter.

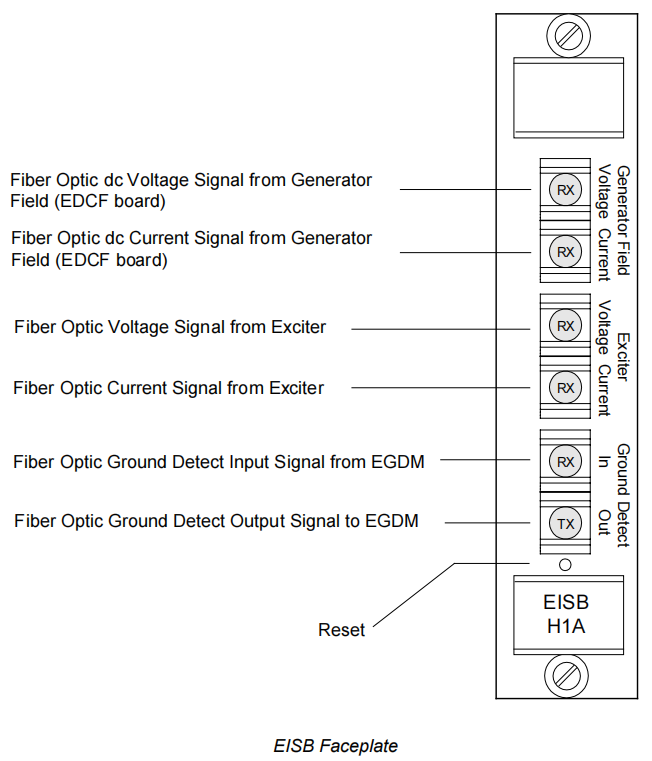

EISB is a single-slot, 3U high module that is located in the control rack under the DSPX. From fiber-optic connectors on the front panel it accepts current and voltage signals from the generator field (and from the Exciter if required) using EDCF boards, and receives and transmits signals to the Ground Detection module. Refer to the following figure.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EISBH1AAA |
| Ordering Information |
IS200EISBH1A |
| Product Catalog |
EX2100 Excitation |
| Description |
Exciter ISBus Board |
| Voltage |
24 Vdc |
| Functional acronym |
EISB |
| Dimensions |
16 cm x 12 cm x 3 cm |
| Weight |
0.4 kg |
