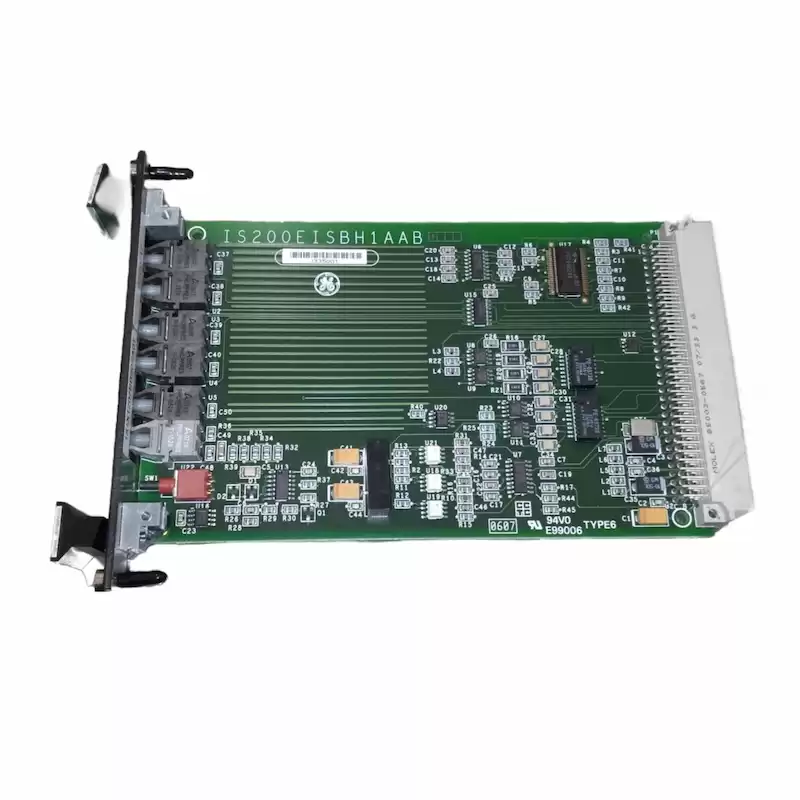

IS200EISBH1AAB Exciter ISBus Board
The IS200EISBH1AAB is a Exciter ISBus Board, manufactured and designed by General Electric as part of the EX2100 Excitation Series used in the GE Speedtronic Control System.
Exciter ISBus Board is a specialized communication board tailored explicitly for the M1, M2, and C controllers within the context of generator control systems. Its primary function involves receiving and transmitting fiber-optic feedback signals, subsequently transmitting these signals over the control backplane to the DSPX controller. Additionally, the EISB board facilitates communication between the DSPX and the tool and keypad ports using RS-232C, accomplished through the backbone connector.
Connectors

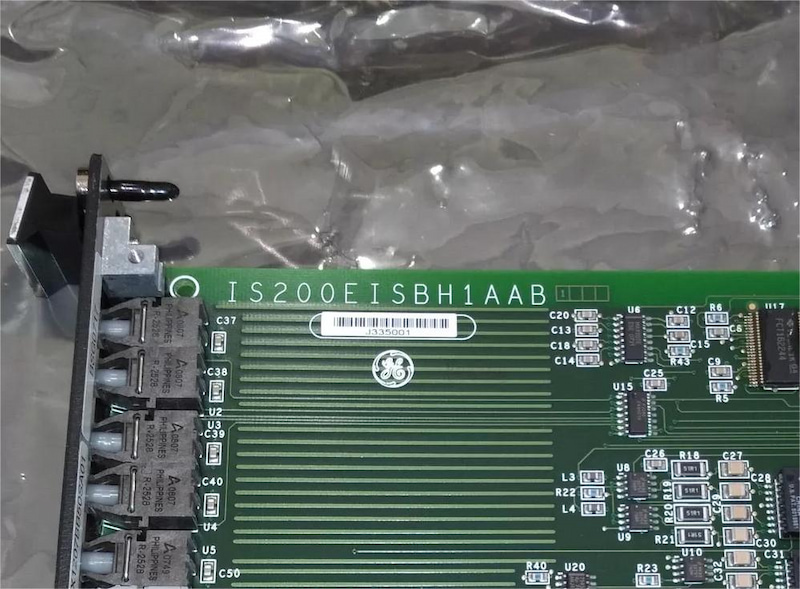

The board front panel has six fiber optic connectors for receiving and transmitting variable frequency signals as follows:
• Generator Field dc Voltage input from the EDCF board
• Generator Field dc Current input from the EDCF board
• Exciter Voltage input from EDCF (optional)
• Exciter current input for EDCF (optional)
• Ground Detector Voltage input
• Ground Detector Voltage output
Optical Connectors
Four optical receive receptacles are located in two groups on the front panel. In the lower part there is a tow piece group of one optical receiver and one transmitter.
Keypad and Tool
EISB has an RS-232C driver for communication with the keypad. It provides +24 V dc and 24 V dc return from the backplane for the power source. EISB also has an RS-232C driver for communication with an external computer through the tool port. The data rates are from 1200 to 38.4 KBaud.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EISBH1AAB |
| Ordering Information |
IS200EISBH1A |
| Product Catalog |
EX2100 Excitation |
| Description |
Exciter ISBus Board |
| Voltage |
24 Vdc |
| Functional acronym |
EISB |
| Dimensions |
16 cm x 12 cm x 3 cm |
| Weight |
0.4 kg |
