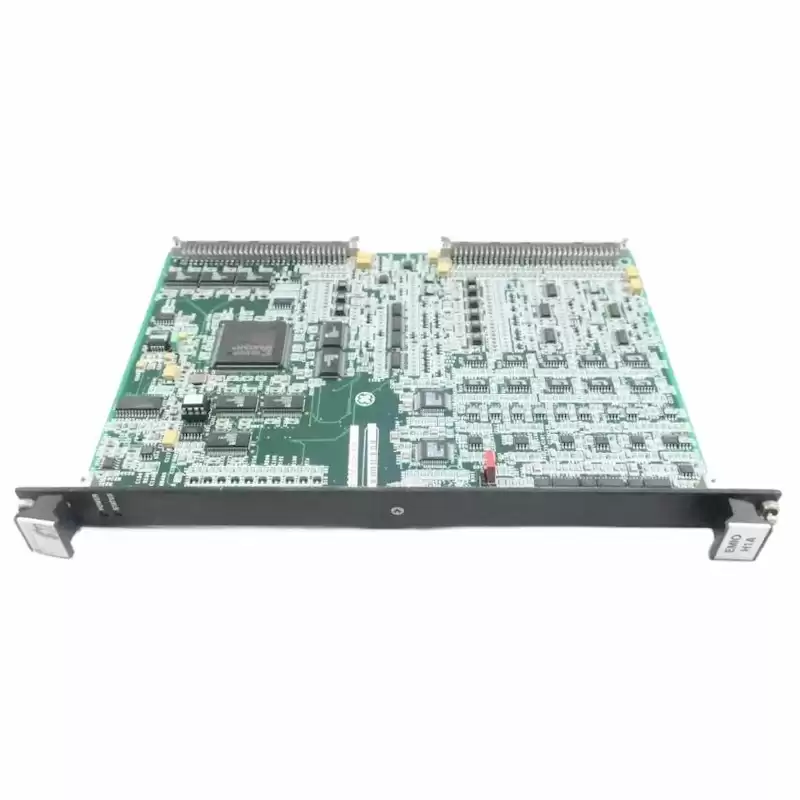

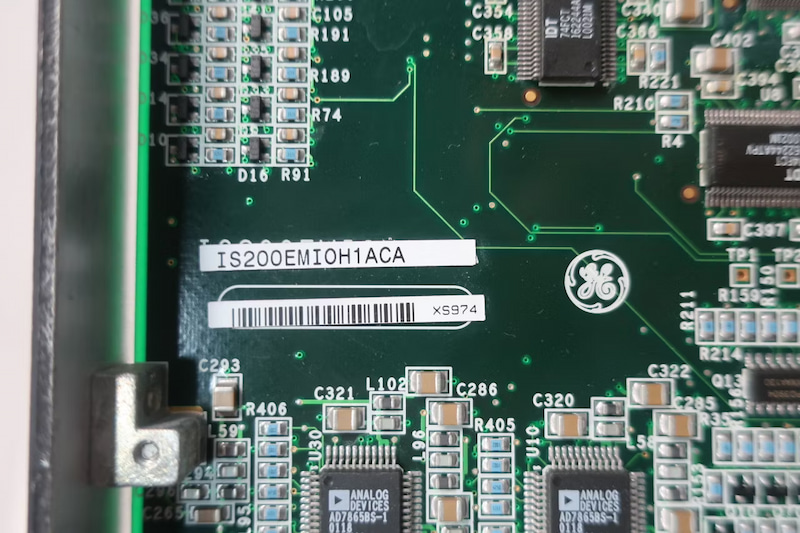

IS200EMIOH1ACA Exciter Main I/O Board
The IS200EMIOH1ACA Main I/O board is a single slot, double height VME style board that mounts in the control rack. EMIO handles the I/O from the EPCT, ECTB, EACF, and EXTB terminal boards. The I/O includes PT and CT signals. Contact inputs, output relay drivers, and pilot trip relay drives. It als sends logic level gate pulse signals over the backplane to the ESEL board, which sends them to EGPA in the power conversion cabinet.
Application Data

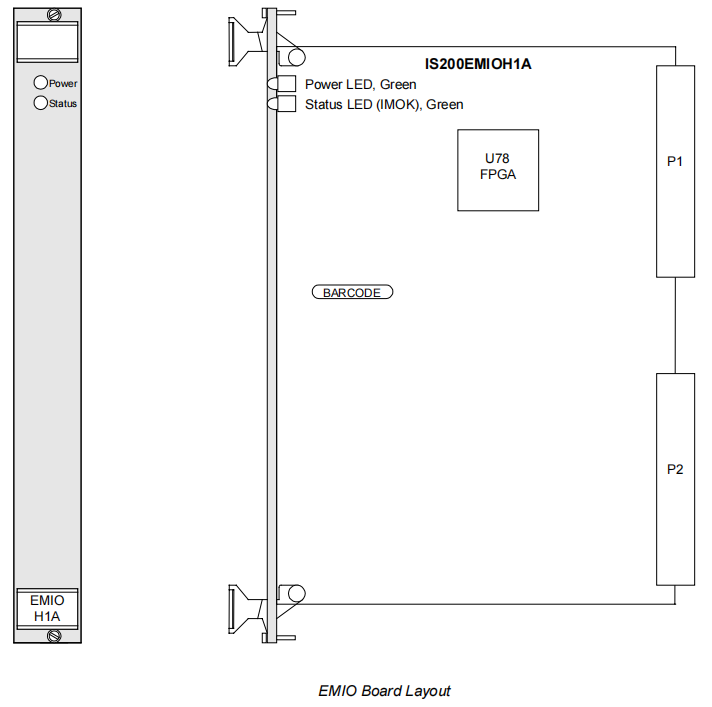

Layout of the EMIO board with LEDs is shown in the first figure, EMIO Board. The Power LED is connected to the 5 V dc power, and the Status LED is connected to the IMOK output from the FPGA. There are no jumpers, fuses, or cable connectors on the board.
All cabling from the I/O boards is connected to the control backplane (EBKP). Connector P1 provides communication with the other control boards over the backplane, while P2 provides the interface to the I/O signals through cable connectors located at the lower part of EBKP.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EMIOH1ACA |
| Ordering Information |
IS200EMIOH1A |
| Product Catalog |
EX2100 Excitation |
| Description |
Exciter Main I/O Board |
| Voltage |
+/-10V
|
| Current |
4/20 mA
|
| Dimensions |
18 cm x 16 cm x 3 cm |
| Weight |
1 kg |
