GE IS200EPDMG1ABA Exciter Power Distribution Module

The IS200EPDMG1ABA is a GE Exciter Power Diatribution Module, and it is usually used in EX2100 Excitation System.

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  GE
 Model  IS200EPDMG1ABA
 Product ID  IS200EPDMG1ABA
 Catalog  EX2100
 Description  IS200EPDMG1ABA Exciter Power Distribution Module
 Origin  United States (US)
 Dimension  205 mm x 156 mm x 26.5 mm
 Weight  1kg

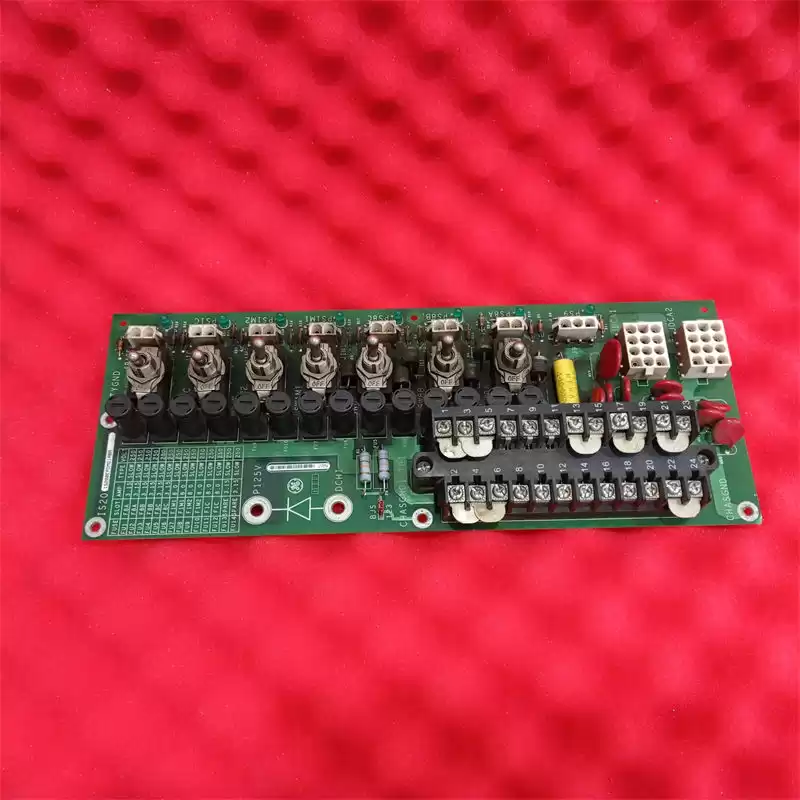

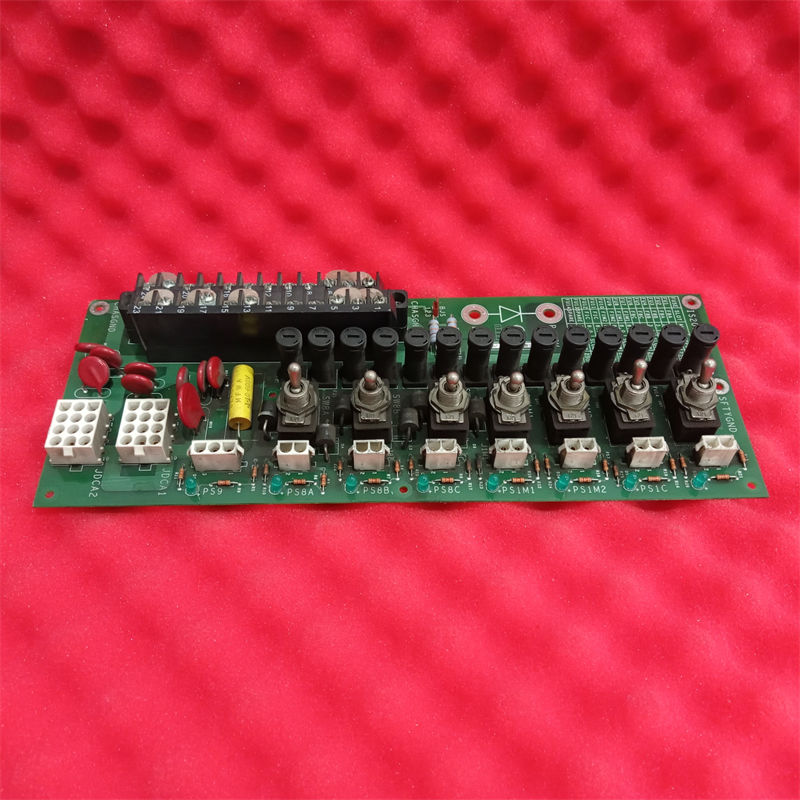

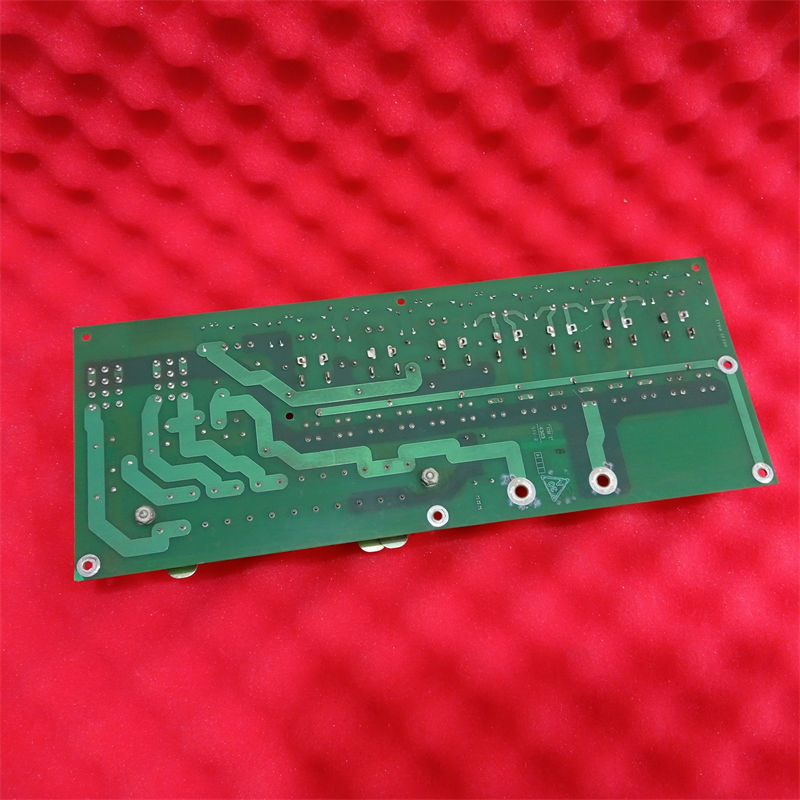

IS200EPDMG1ABA



IS200EPDMG1ABA



The IS200EPDMG1ABA is an Exciter Power Distribution Module manufactured and designed by General Electric as part of the EX2100 Series used in GE Excitation Control Systems. The module is used to provide power for the control, I/O, and protection boards of the exciter.
It is mounted on the side of the IS200EPBP Exciter Power Backplane (EPBP) receives 125 V dc power from the station battery and accepts one or two 120 V ac power inputs for backup. The module is chassis-grounded and safety-grounded through four of the board mounting holes. Individual power supply outputs to each of the exciter boards are fused, have an on/off toggle switch (except the EXTB board), and a green LED indicator to show power availability. The outputs supply up to three IS200EGPA Exciter Gate Pulse Amplifier Boards (EGPA), the IS200EXTB Exciter Terminal Board (EXTB), and three IS200EPSM Exciter Power Supply Modules (EPSM) serving three controllers.


  •  » Datasheet Link

GE IS200EPDMG1ABA Exciter Power Distribution Module Datasheet



  • # Quality
    100% brand new and original
    All the goods will be tested before shipment.
  • # Warranty
    Topteng offers a 12-month warranty from the date of delivery
    In the event of non-conforming product (if damaged or incorrect product is received),
    Any nonconformity must be reported within 7 days of receipt of goods.
  • # Delivery Time
    For the in stock items, we will send the order out within 5-7 days after receive the payment.
    We can shipping all over the world via DHL,UPS,Fedex and EMS
