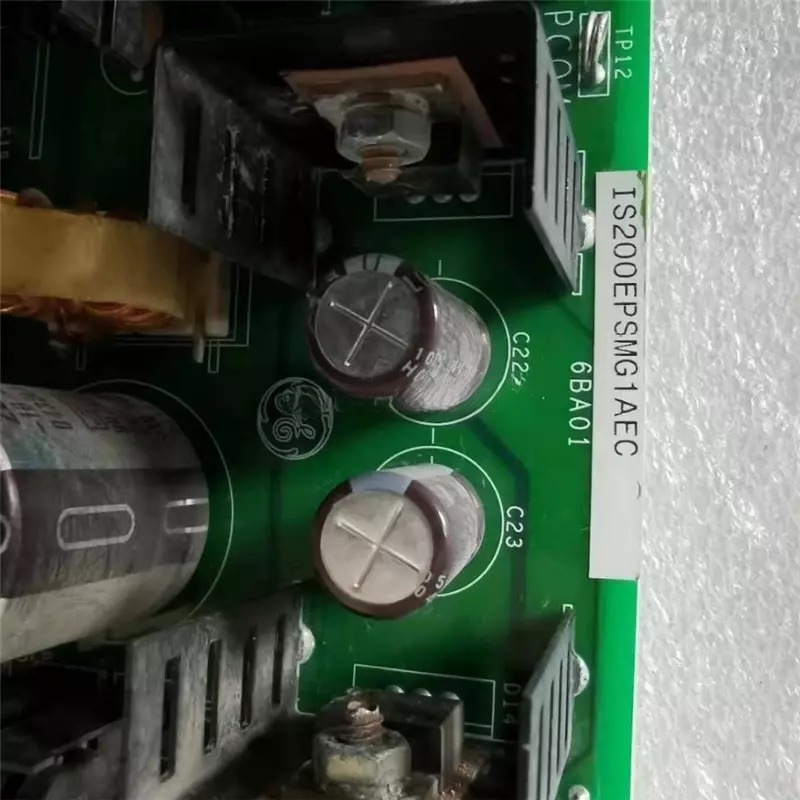

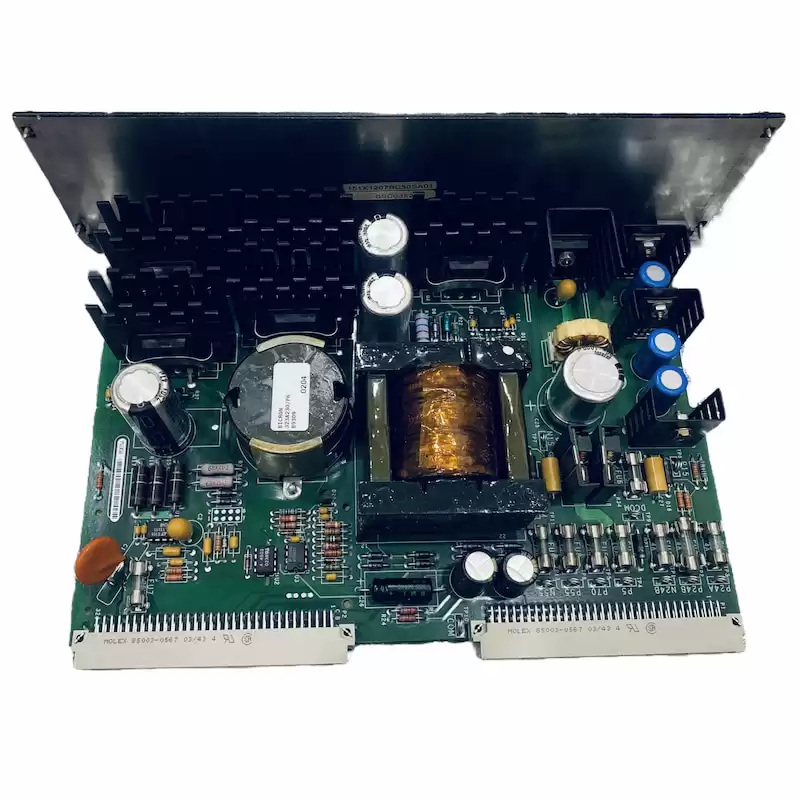

IS200EPSMG1AEC Exciter Power Supply Module
The IS200EPSMG1AEC Exciter Power Supply Module (EPSM) is used in the EX2100 Excitation Control System and the EX2100 Regulator Control. EPSM Group 1 modules (EPSMG1) are used in the excitation control system and EPSM Group 2 modules (EPSMG2) are used in the regulator control. EPSMG2 includes an IS200EPSDG1A Exciter Regulator Power Supply Daughter board (EPSD) mounted to it.
The EPSM is comprised of 2 major sections, a buck-regulator and a push-pull inverter. The buck-regulator converts the input voltage to a 50 V dc intermediate voltage. This intermediate voltage is then applied to a push-pull inverter to create the required multiple output voltages. The transformer used in the push-pull inverter provides high-voltage isolation between the input voltage source and the output supplied to the control system.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EPSMG1AEC |
| Ordering Information |
IS200EPSMG1A |
| Product Catalog |
EX2100 Excitation |
| Description |
Exciter Power Supply Module |
| Voltage |
125 Vdc |
| Current |
1 A |
| Dimensions |
16 cm x 16 cm x 12 cm |
| Weight |
1 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
