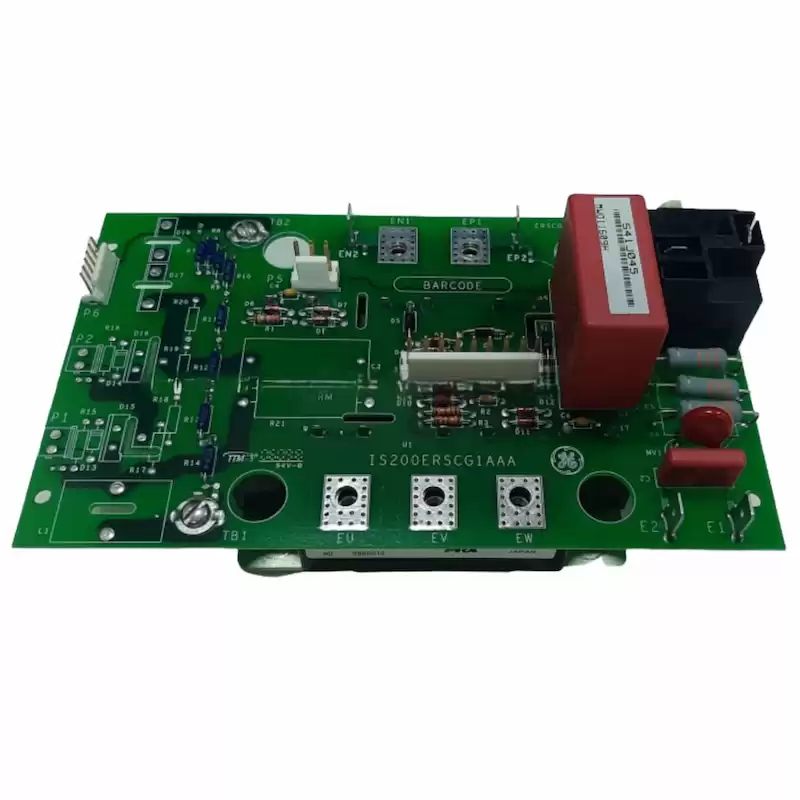

IS200ERSCG1AAA Exciter Regulator Static Converter Board
The IS200ERSCG1AAA Exciter Regulator Static Converter Board provides the pulse width modulated (PWM) dc output current and the field discharge function for the regulator control. These two functions are defined as the power conversion module (PCM).

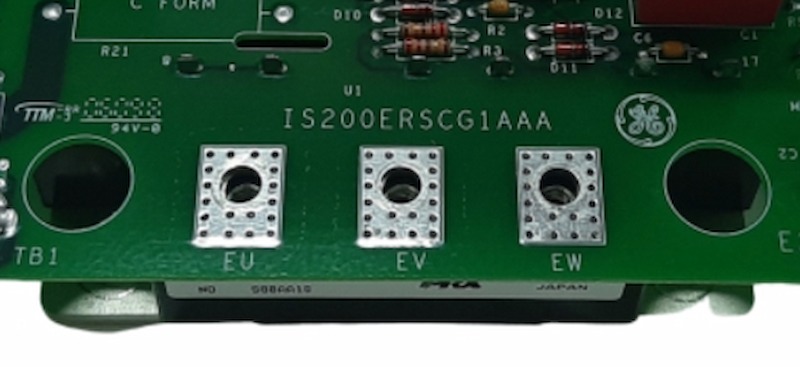

The PCM consists of an integrated IGBT inverter module that contains six IGBTs connected in a 3-phase inverter configuration. Two of the six IGBTs are used to create the PWM dc output for field excitation. A third IGBT is used to discharge the dc link capacitors into an external dynamic discharge (DD) resistor. Maximum output is 20 A dc continuous, 30 A dc for 10 seconds. Input power is either rectified ac, dc from a station battery, or both.
A relay, K3, is provided to bypass the dc link charging resistor. The dc link charging resistor provides a soft charge on initial power up for the dc link capacitors.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200ERSCG1AAA |
| Ordering Information |
IS200ERSCG1A |
| Product Catalog |
EX2100 Excitation |
| Description |
Exciter Regulator Static Converter Board |
| Voltage |
250 Vdc |
| Current |
30 Adc |
| Dimensions |
18 cm x 12 cm x 6 cm |
| Weight |
0.2 kg |
