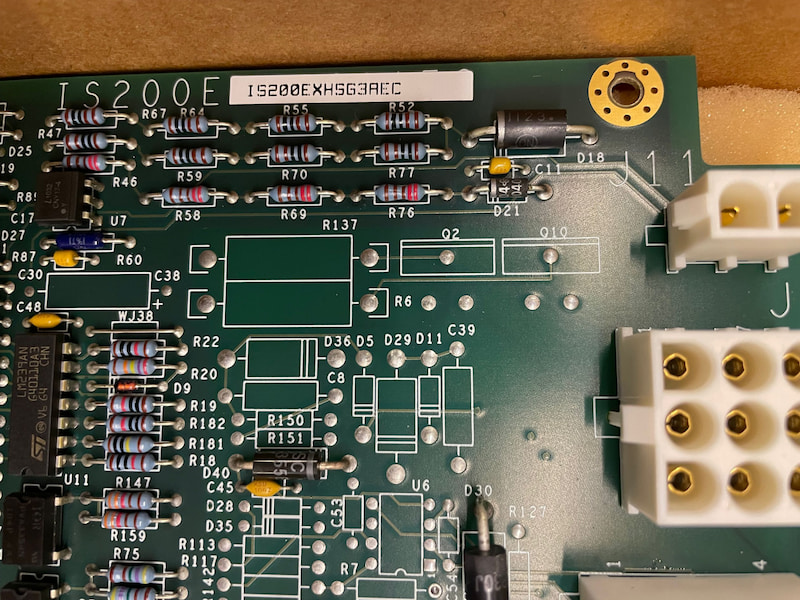

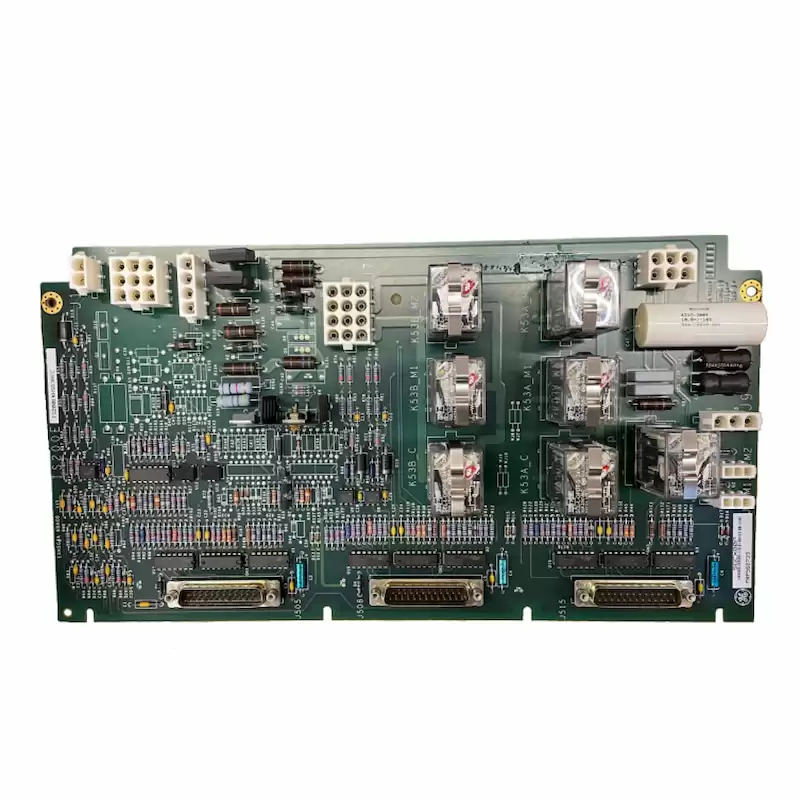

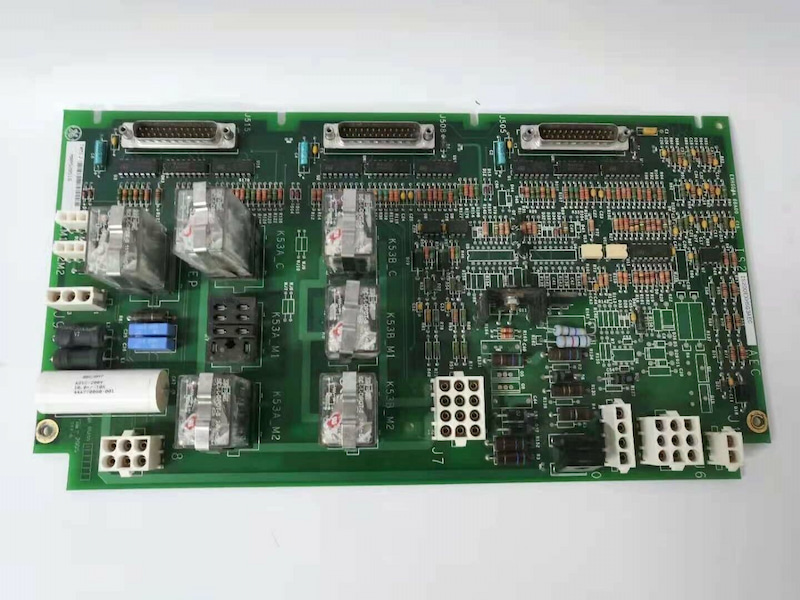

GE IS200EXHSG3AEC Exciter High Speed Relay Driver Board
· Through the Exciter Backplane Board, these boards connect to three Exciter Main Input/Output Boards (EMIO, redundant control) or one EMIO board (simplex control) (EBKP). On the board are pilot relays for the flashing relays 53A and 53B, as well as pilot relays for the de-excitation relay KDEP.
· EXHS conditions and sends de-excitation status signals from the Exciter De-Excitation Board (EDEX) to EMIO. Crowbar status signals are conditioned on EXHS and sent to EMIO from the EXDE De-Excitation Control Board (EXDE).
· On EXHS, three contact inputs from 41, 53A, and 53B are powered by 70 V dc and their feedback is monitored. The contacts are powered by the exciter power supply. The status signals generated are sent to the EMIO.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200EXHSG3AEC |
| Ordering Information |
IS200EXHSG3A |
| Product Catalog |
EX2100 |
| Description |
Exciter High Speed Relay Driver Board |
| Abridge |
EXHS |
| Functional Revision |
A |
| Dimensions |
18 cm × 12 cm × 12 cm |
| Weight |
1 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
