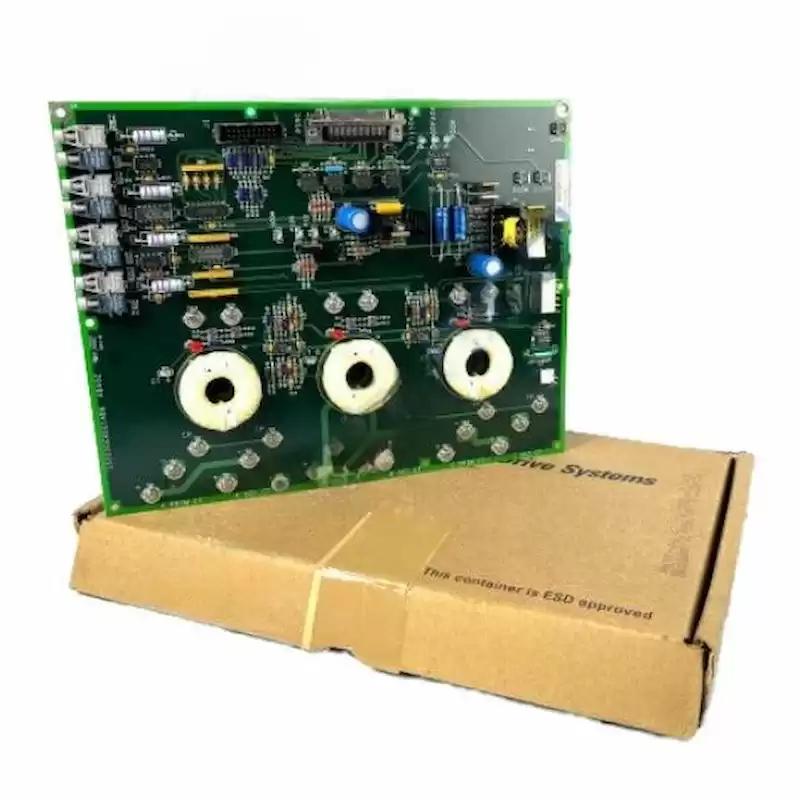

IS200GGXDG1ABB Expander Diode Source Board
The IS200GGXDG1ABB Expander Diode Source Board (GGXD) provides the fiber-optic and analog feedback hardware needed between the drive's Bridge Interface Control Board (BlCI) and a diode source/dynamic braking (DB) circuit. This board is located in the control cabinet.
RS-422 transceivers are used to interface the gating commands and status signals between the BICI board GGXD board. Fiber-Optic signal interfacing is used between the GGXD board and up to four DB Integrated Gate Commutated Thyristors (IGCTs). The GGXD board receives a high frequency voltage input from the Gate Driver Power Assembly Board (GDPA). Onboard positive 5 (P5) and 12 (P12) V dc power supplies provide power for the RS-422 transceivers, fiber-Optic communications, and some monitoring circuits. Seven isolated stab-on type connectors are provided for selective grounding.
The following signals are sent to the Bridge Interface Conral board (BICI) from the GGXD board:
· Three current feedback signals from the source current transformers
· An opto-coupled GDPA board power supply OK signal
· An opto-coupled circuit continuity checking signal to ensure that the associated Voltage Feedback Attenuator Board (NATO) is plugged in
-This signal is not available for an unpowered GGXD board in a non-DB application.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200GGXDG1ABB |
| Ordering Information |
IS200GGXDG1A |
| Product Catalog |
Mark VI |
| Description |
Expander Diode Source Board |
| Voltage |
12 Vdc |
| Functional acronym |
GGXD |
| Dimensions |
18 cm x 12 cm x 6 cm |
| Weight |
0.4 kg |
