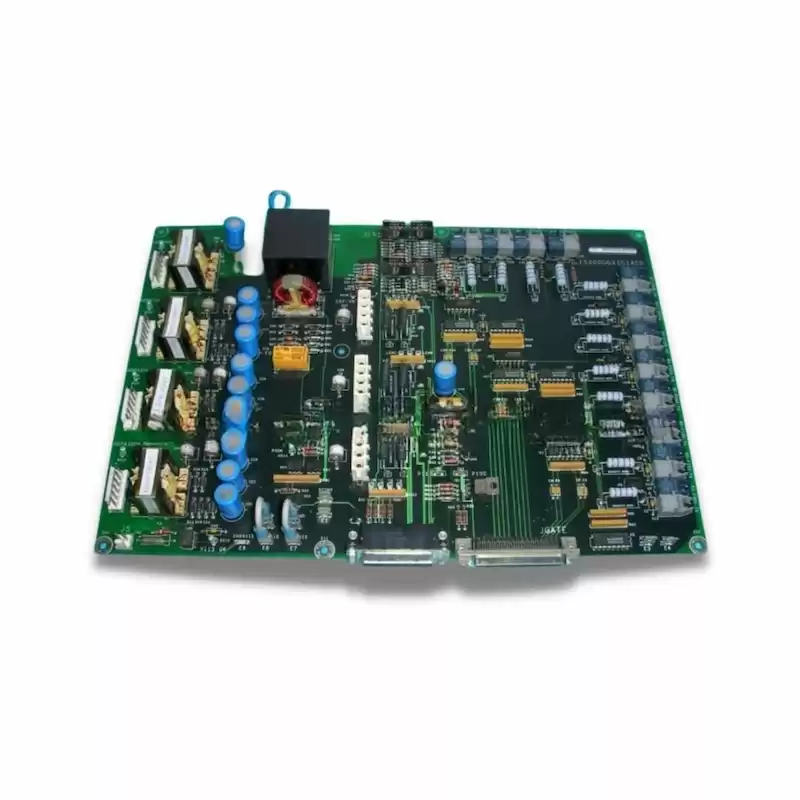

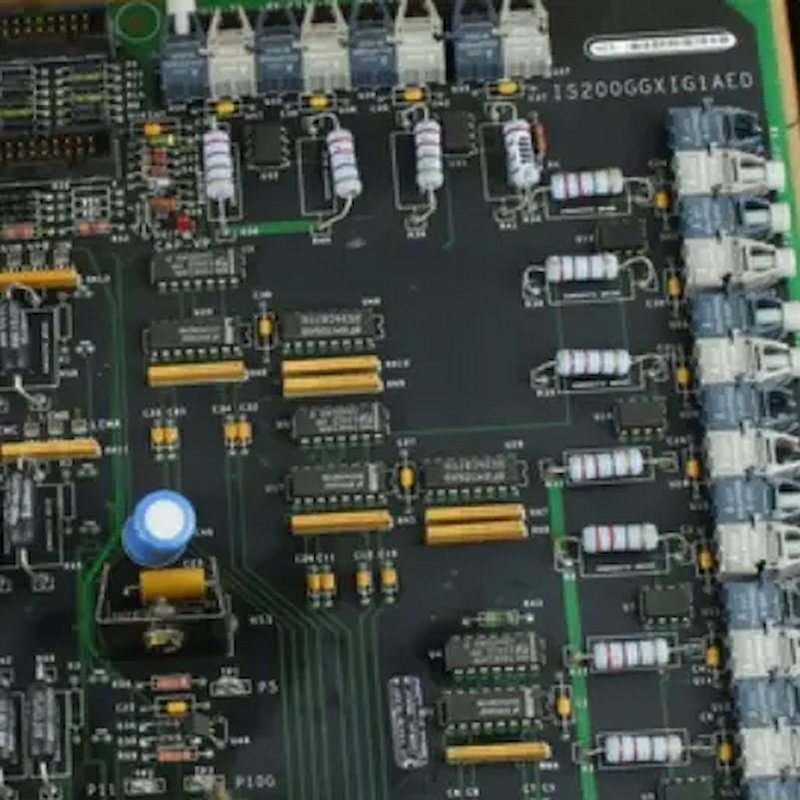

IS200GGXIG1AFE Expander Load Source Board
The IS200GGXIG1AFE is a Expander Load Source Board, manufactured and designed by General Electric as part of the Mark VI Series used in the GE Speedtronic Control System.
It serves as an Expander Load Source Board, providing control and isolation between the high-voltage power bridge and other cards on the board rack. By converting RS422 signals to fiber-optic signals, it enables the gating of the bridge IGCT switching devices. With the ability to connect to multiple power devices, ensures efficient power management within the system. It offers various I/Os and connectors for seamless integration with other boards, facilitating effective communication and power transfer. Additionally, the board incorporates grounding stabs for different circuit types, an isolated serial ID chip for identification, and various test points and LEDs for monitoring and troubleshooting.
Technical Specifications
| Manufacturer |
GE |
| Part Number |
IS200GGXIG1AFE |
| Ordering Information |
IS200GGXIG1A |
| Product Catalog |
Mark VI |
| Description |
Expander Load Source Board |
| Voltage |
12 Vdc |
| Functional acronym |
GGXI |
| Dimensions |
18 cm x 12 cm x 6 cm |
| Weight |
0.4 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
